Kordz PRS SlimCat™ Cat6a RJ45 Crimp Connector 100 pieces

Stock Code: KCC-PRSSlim-RJ45-100

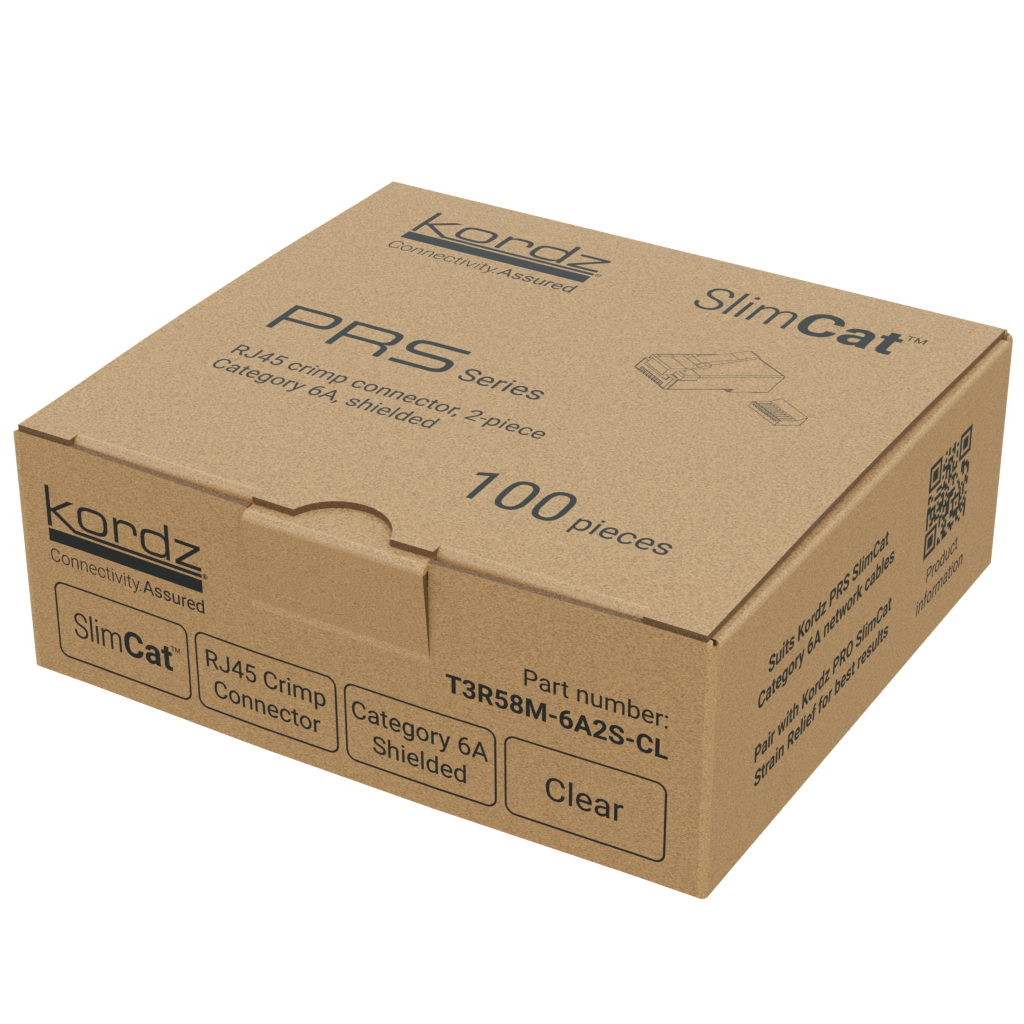

Kordz PRS SlimCat™ Cat6a RJ45 Crimp Connectors

100 pieces
T3R58M-6A2S-CL

SlimCat
PoE++
28 AWG
Snap Proof
Shielded
RJ45
Cat 6A
UL94 V-0
Lifetime Warranty

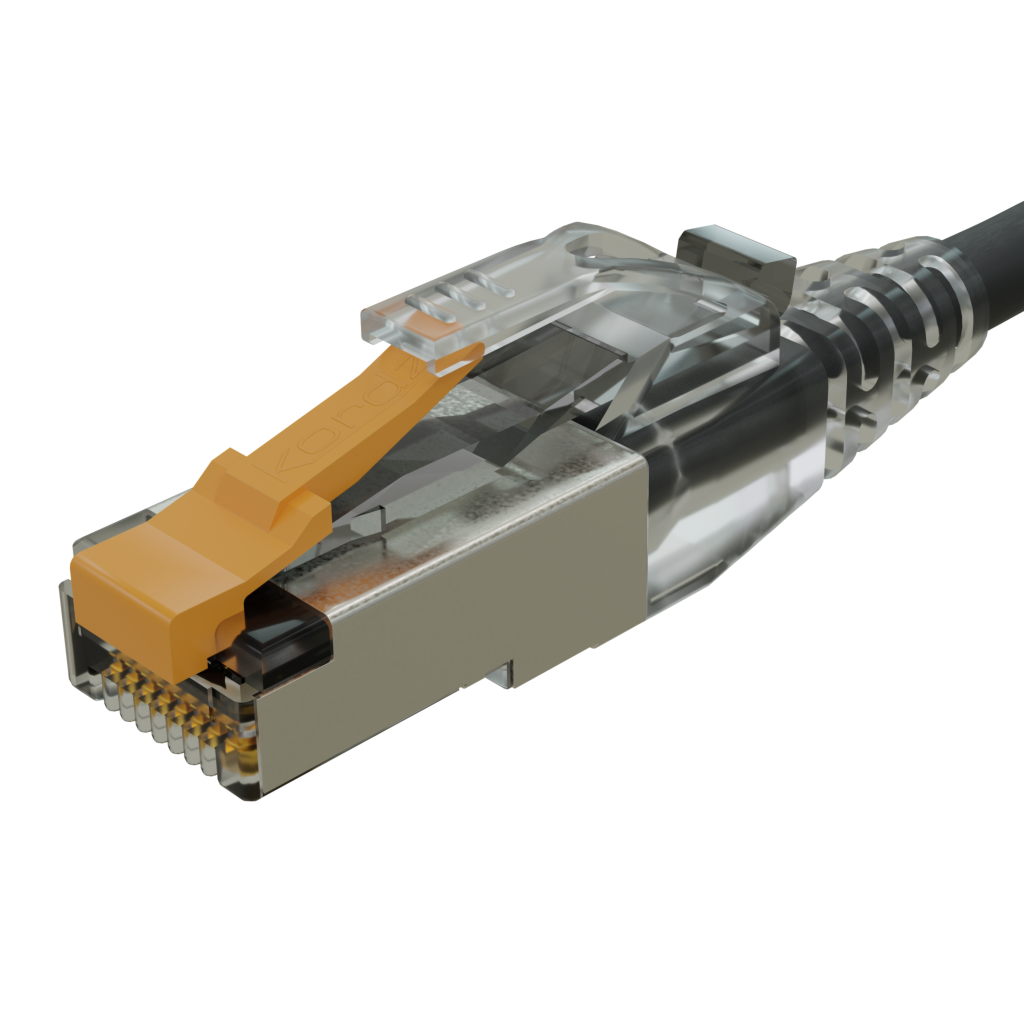

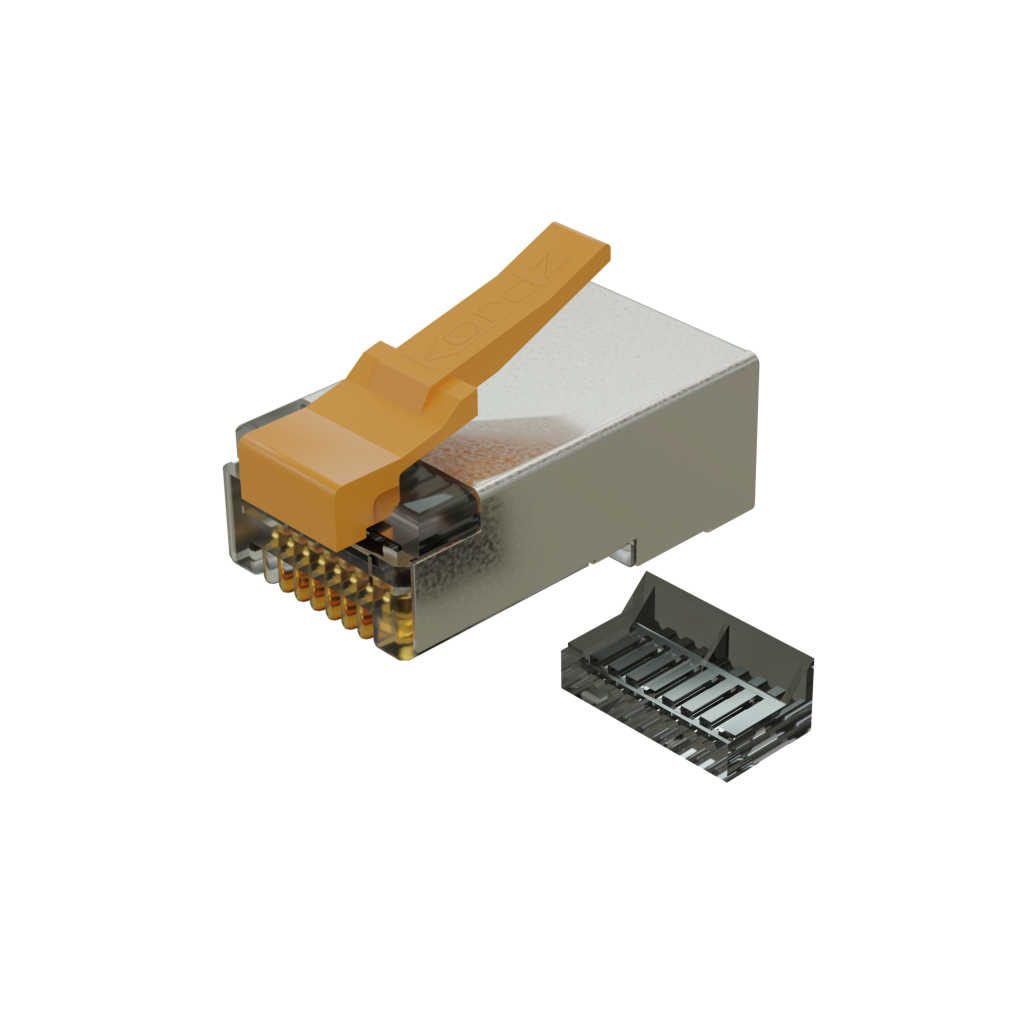

The Kordz PRS SlimCat™ Shielded RJ45 Crimp Connector is designed specifically for use with the Kordz PRS SlimCat™ Cat6A Network Cable. The crimp connector builds on the success of the PRO and PRS patch cords by allowing integrators to terminate their own SlimCat™ cables to length. The connector features an innovative composite construction incorporating a shielded transparent body for termination ease with a durable ‘snap-proof’ nylon latch. The wire manager is tinted grey for handling ease and insertion verification.

The optional PRO SlimCat Strain Relief is compatible with the connector and features a removable locking pin to reduce the chance of any accidental RJ45 connector disconnects. Termination can be achieved using the Kordz One Series Crimping Tool. This connector is rated for PoE++ at 100W along with the rest of the SlimCat™ range. Match with other Kordz PRS SlimCat™ Cat6A components for a complete Kordz ecosystem that delivers ‘Connectivity Assured’.

  • Enables delivery of ANSI/TIA-56A8.2-D Cat6A performance up to 50m when paired with Kordz PRS SlimCat™ Cat6A Network Cables
  • Durable 'snap-proof’ nylon latch
  • Nickel-plated metal shielding
  • Transparent polycarbonate body for termination ease
  • Tinted wire-manager for handling ease and insertion verification
  • Optional PRO strain relief available featuring a removable locking pin
  • IEEE802.3bt 100W PoE++ capable
  • UL94 V-0 fire-rated
  • Eco-friendly packaging
  • Lifetime warranty
  • General
    Guaranteed Performance Category: Category 6A
    Applicable Performance Standards: ANSI/TIA-568.2-D
    Power over Ethernet Performance: IEEE 802.3bt PoE++ (max 100W)
    Power over Ethernet Tested Standards: IEC 60512-99-002
    Shielding Type: Shielded
    Shielding Material: Brass with nickel plating
    Wiring Method: T568A
    T568B
    Dimensions
    Connector / Strain Relief Length: 22.50mm | 0.89in
    34.6mm | 1.36in
    Connector / Strain Relief Width: 11.65mm | 0.46in
    11.7mm | 0.46in
    Connector / Strain Relief Height: 6.6mm | 0.26in / 8.2mm | 0.32in
    Mechanical
    Housing Material: Polycarbonate
    Flammability Rating: UL 94 V-0
    Housing Colour: Transparent
    Contact Type: 3 Prongs, Solid / Stranded
    Gold Plating: 50μ”
    Liner: Included
    Warranty
    Manufacturer's Warranty: Kordz PRS SlimCat™ Crimp Connector and Strain Relief are backed by their Lifetime Guarantee that promises maintained product functionality and performance for your lifetime.
    *Terms & Conditions: For further information regarding AWE's returns procedures, please see chapters 7 & 8 in our Terms & Conditions
    Name File Name
    Kordz PRS-SCRJ Datasheet Kordz PRS-SCRJ Datasheet.pdf
