Kordz*SPECIAL ORDER* PRS CAT6a RJ45 Field Termin Plug 6 piec

Kordz PRS CAT6a RJ45 Field Termination Plug 6 pieces

Stock Code: KTP-PRS-RJ45-6(MET)

Need more information?

Description
Product Features
Specification
Downloads

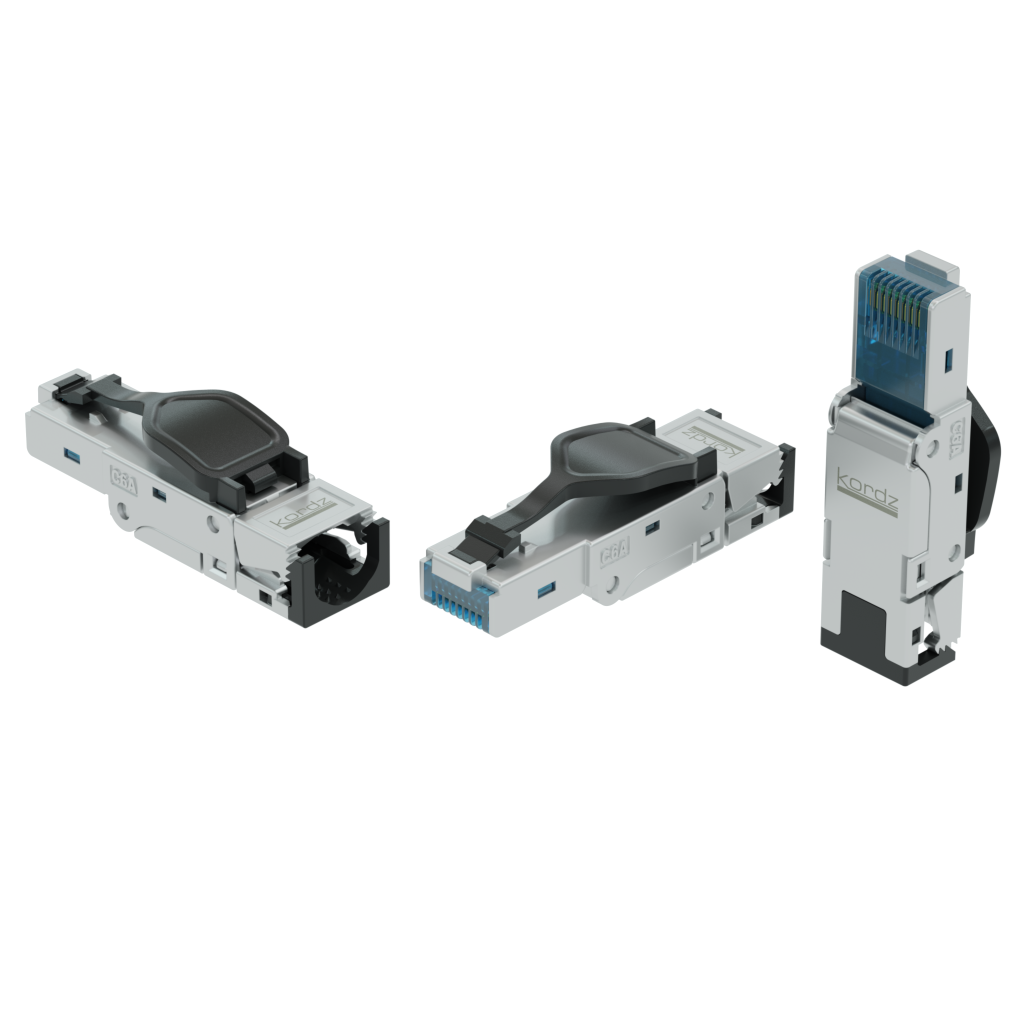

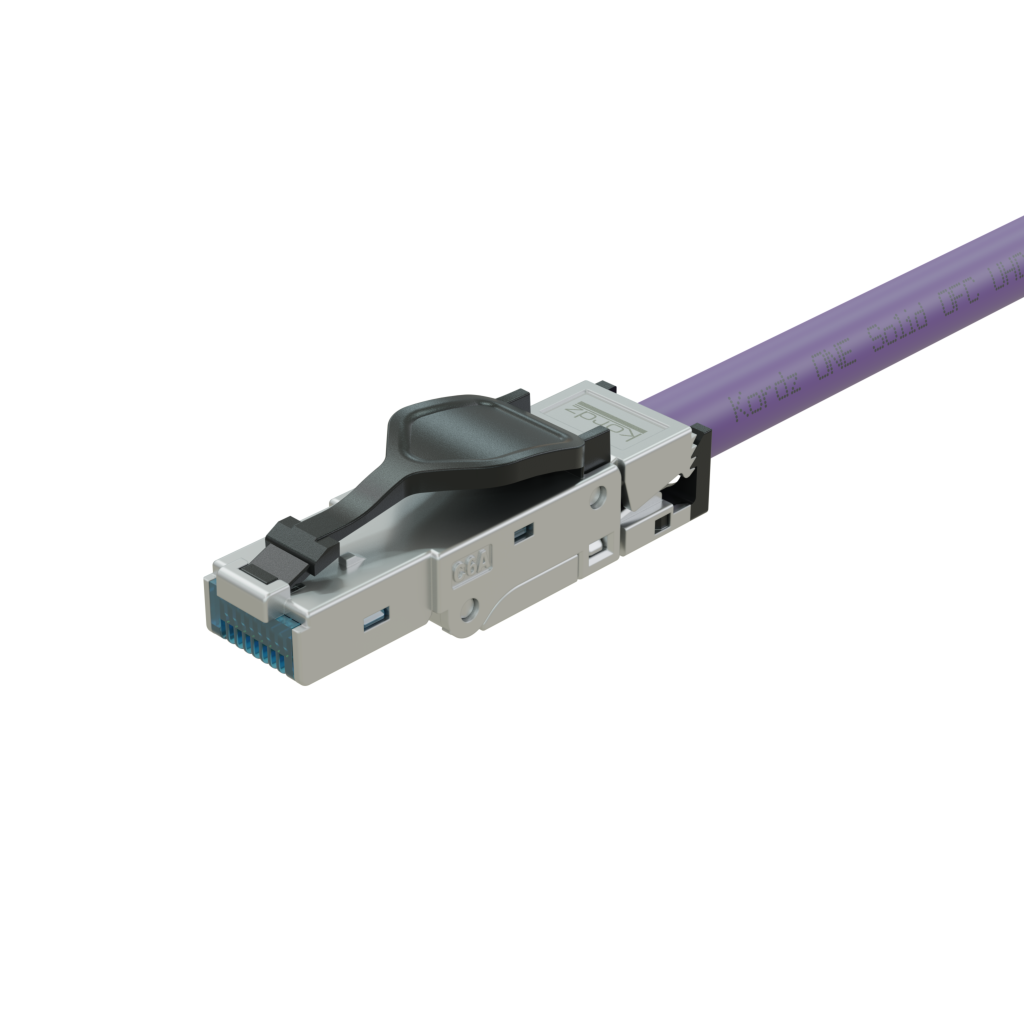

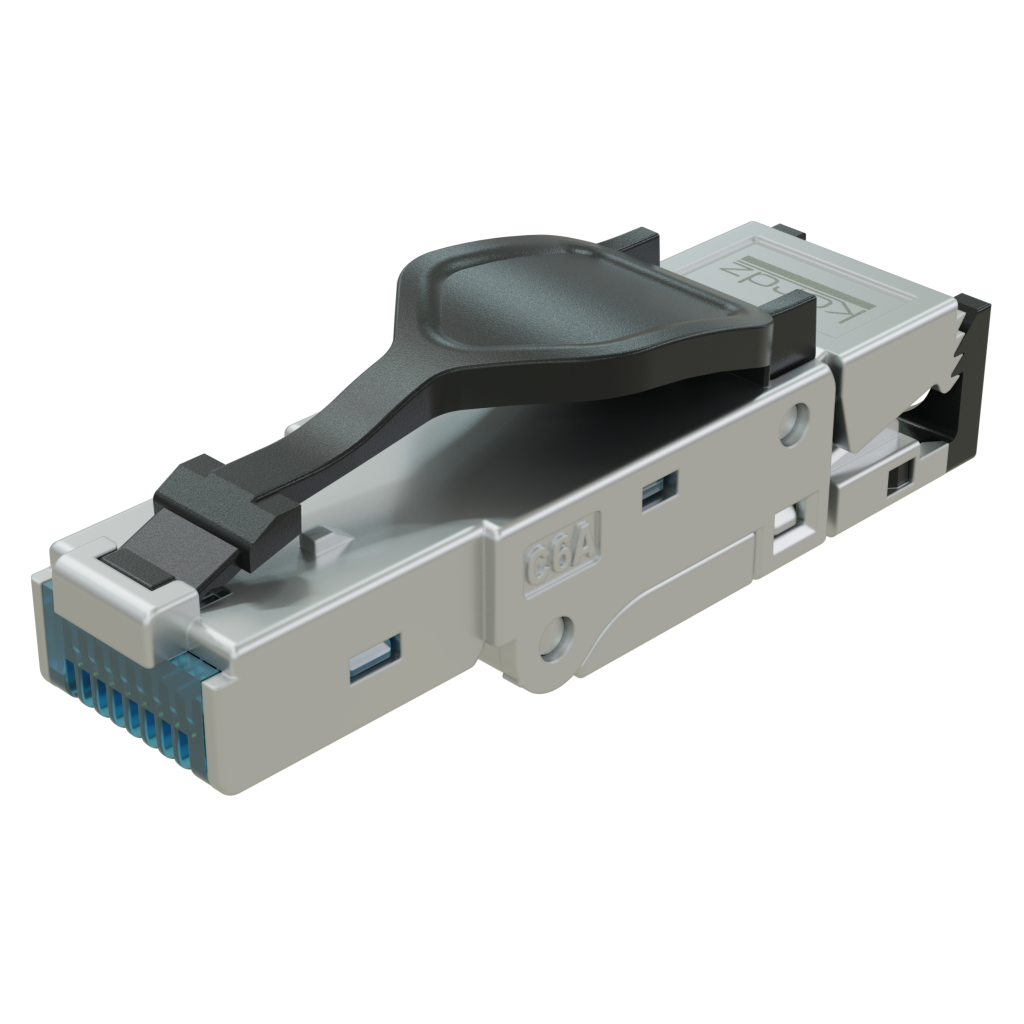

Kordz PRS CAT6a RJ45 Field Termination Plug

6 pieces in Foil Bag, Metallic
T3R45M-C6AS-ME

Kordz PRS Field Termination RJ45 Plugs perfectly complement Kordz ONE Series Bulk Category Cabling and give professional integrators total confidence to deliver an end-to-end cabling solution. Featuring a die-cast alligator style design and using advanced manufactured methods, you can match them with Kordz PRS Patch Cords for a complete Kordz ecosystem that delivers ‘Connectivity Assured’.

Die-cast alligator style design

Easy to terminate

6 pieces per pack

Sturdy and robust shielded construction

Manufactured with quality materials using advanced manufacturing methods

Backed by the Kordz Lifetime Guarantee

General
	Guaranteed Performance Category:	Category 6A
	Applicable Performance Standards:	ANSI/TIA-568.2-D ISO/IEC 11801
	Power over Ethernet Performance:	IEEE 802.3bt PoE++ (max 100W)
	Power over Ethernet Tested Standards:	IEC 60512-99-002
	Shielding Type:	Shielded
	Wiring Method:	T568A T568B

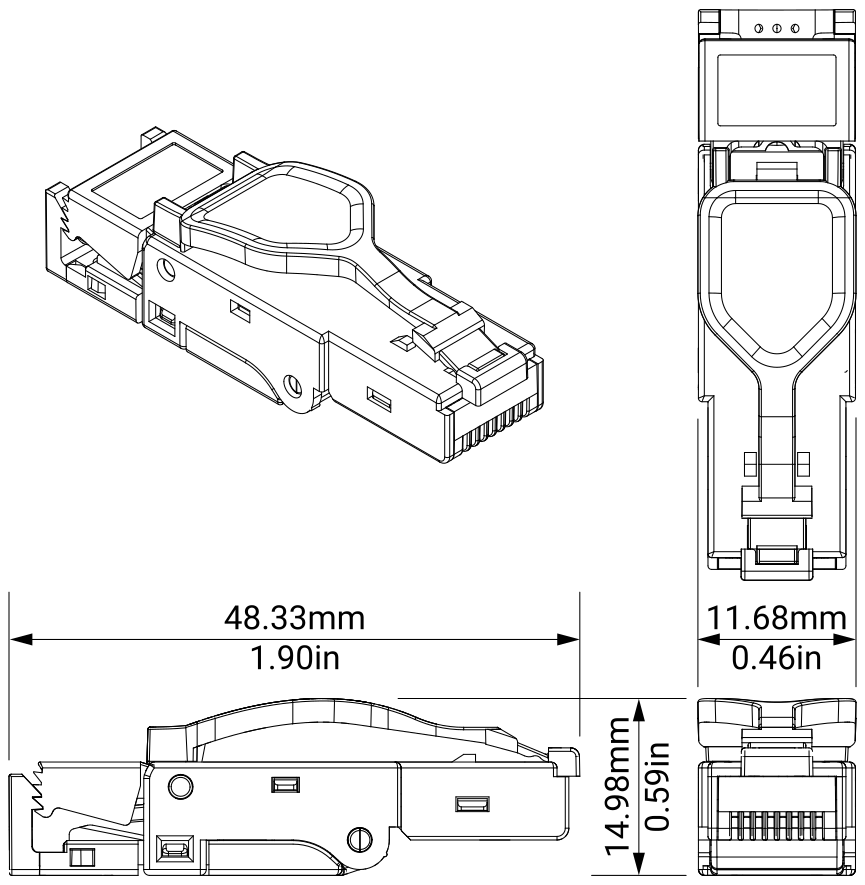

Dimensions
	Body Length:	48.33mm \| 1.90in
	Body Width:	13.30mm \| 0.52in1.36in
	Body Height:	11.65mm \| 0.46in 11.7mm \| 0.46in
	RJ45 plug width:	11.68mm \| 0.46in
	RJ45 plug height:	6.60mm \| 0.26in
Mechanical
	Housing material:	Die-casted Zinc Alloy / POM
	Wire manager material:	Polycarbonate
	Flammability Rating:	UL 94 V-0
	Housing Colour:	Metallic
	Contact material:	Phosphor bronze
	Contact plating:	1.27μm / 50μ" Gold Plating
	Insertion durability:	≥ 750 insertions
	Plug retention force:	133N \| 13.3kg \| 30lb
	IDC Compatible insulated conductor gauge:	min: 26AWG \| max: 22AWG
	IDC Compatible cable diameter:	min: 6.0mm \| max: 9.0mm
	IDC Contact material:	Phosphor bronze
	IDC Contact plating:	Tin-plated
	IDC Termination durability:	≥ 5 terminations
	Operating Temperature:	-40° to 66°C
Electrical
	Voltage/Current rating UL Applications:	Requirement (per IEC 60603-7-4): 125 Volts AC / 1.5 Amps Tested Limit: 125 Volts AC / 1.5 Amps
	Dielectric Withstanding Voltage	Requirement (per IEC 60603-7-4): 1000 Volts DC / AC Peak Tested Limit: 1000 Volts DC / AC Peak
	Contact Resistance:	Requirement (per IEC 60603-7-4): 200mΩ minimum Tested Limit: ≤ 20mΩ
	Insulation Resistance:	Requirement (per IEC 60603-7-4): 500MΩ Tested Limit: ≥ 500MΩ
	Current carrying capacity:	1A at 50°C
Warranty
	Manufacturer's Warranty:	The Kordz PRS Field Termination RJ45 Plug is backed by their Lifetime Guarantee that promises maintained product functionality and performance for your lifetime.
	*Terms & Conditions:	For further information regarding AWE's returns procedures, please see chapters 7 & 8 in our Terms & Conditions

Name	File Name
Kordz PRS Field Termination RJ45 Plug Datasheet	Kordz PRS Field Termination RJ45 Plug Datasheet.pdf
Kordz PRS-RJ Field RJ45 instruction manual	Kordz PRS-RJ Field RJ45 instruction manual.pdf
