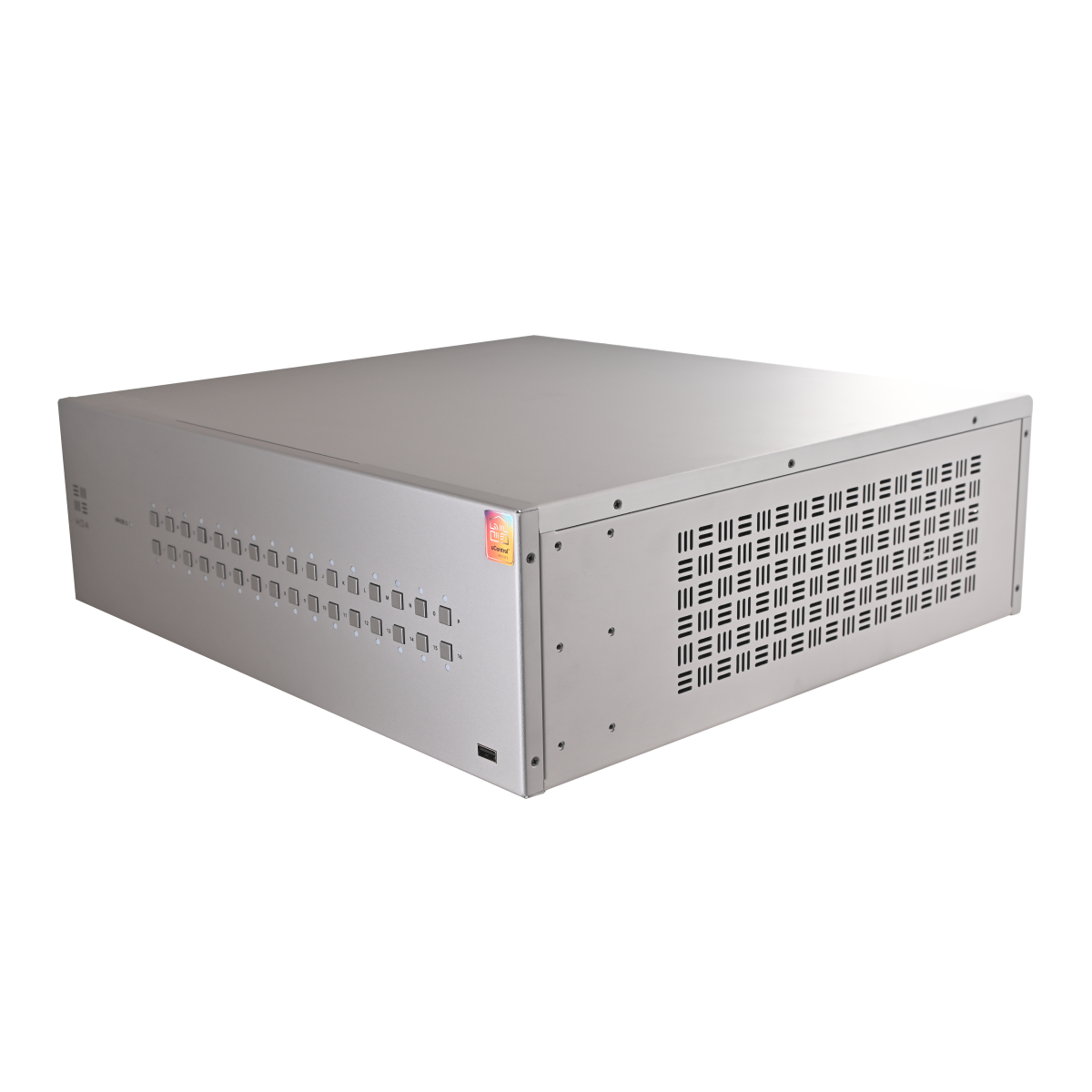

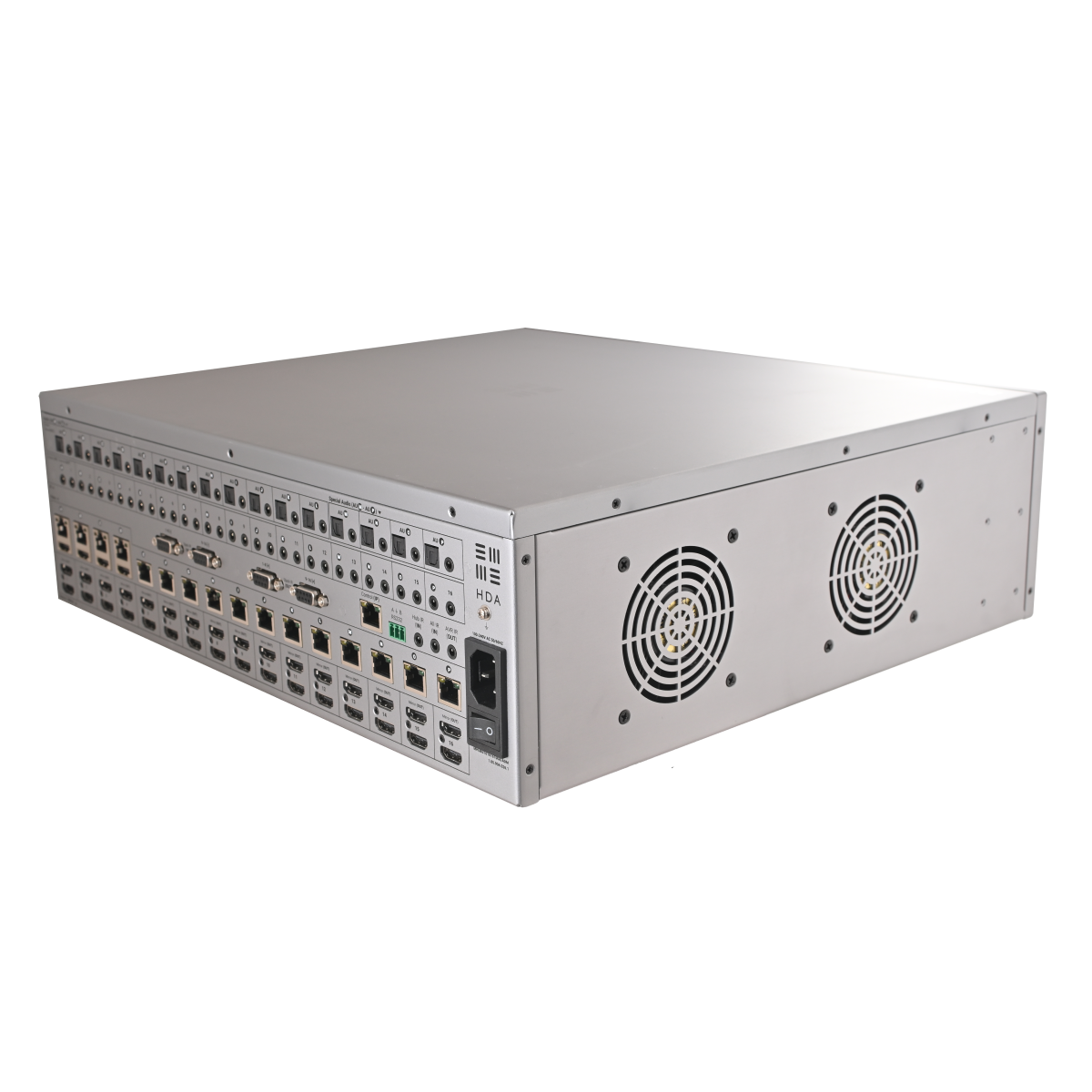

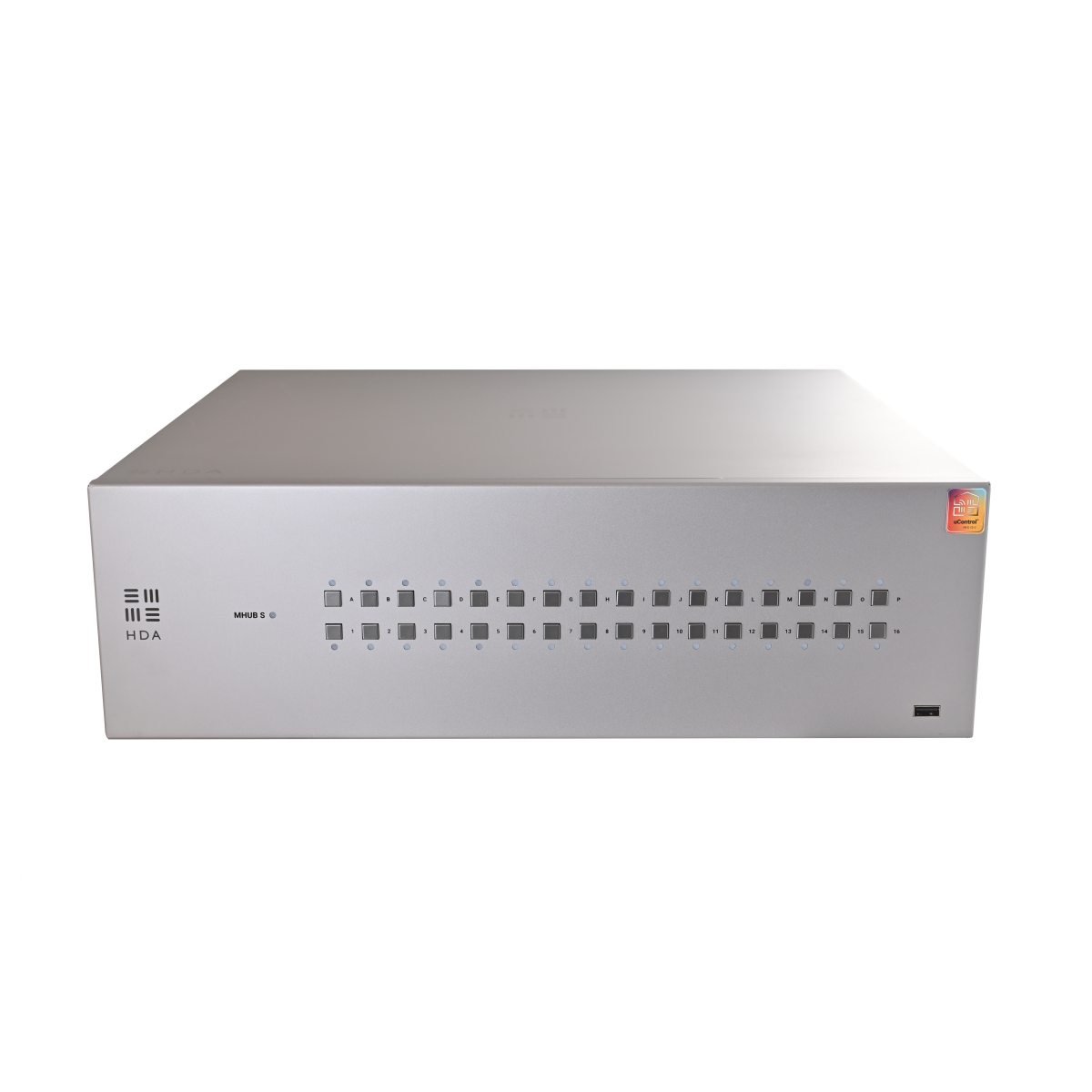

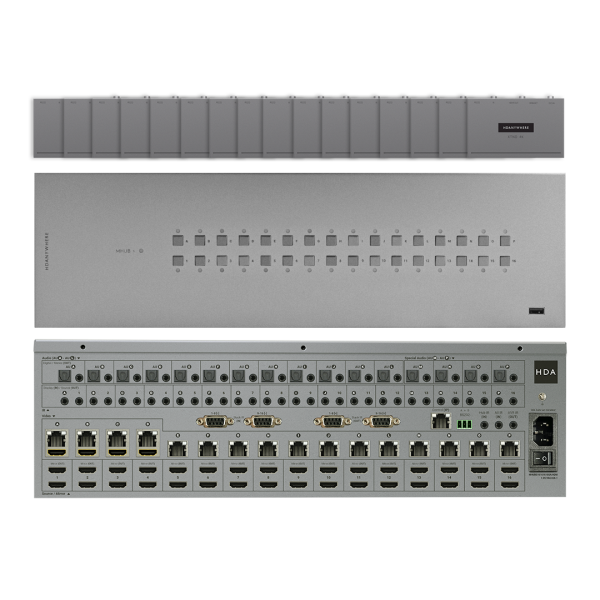

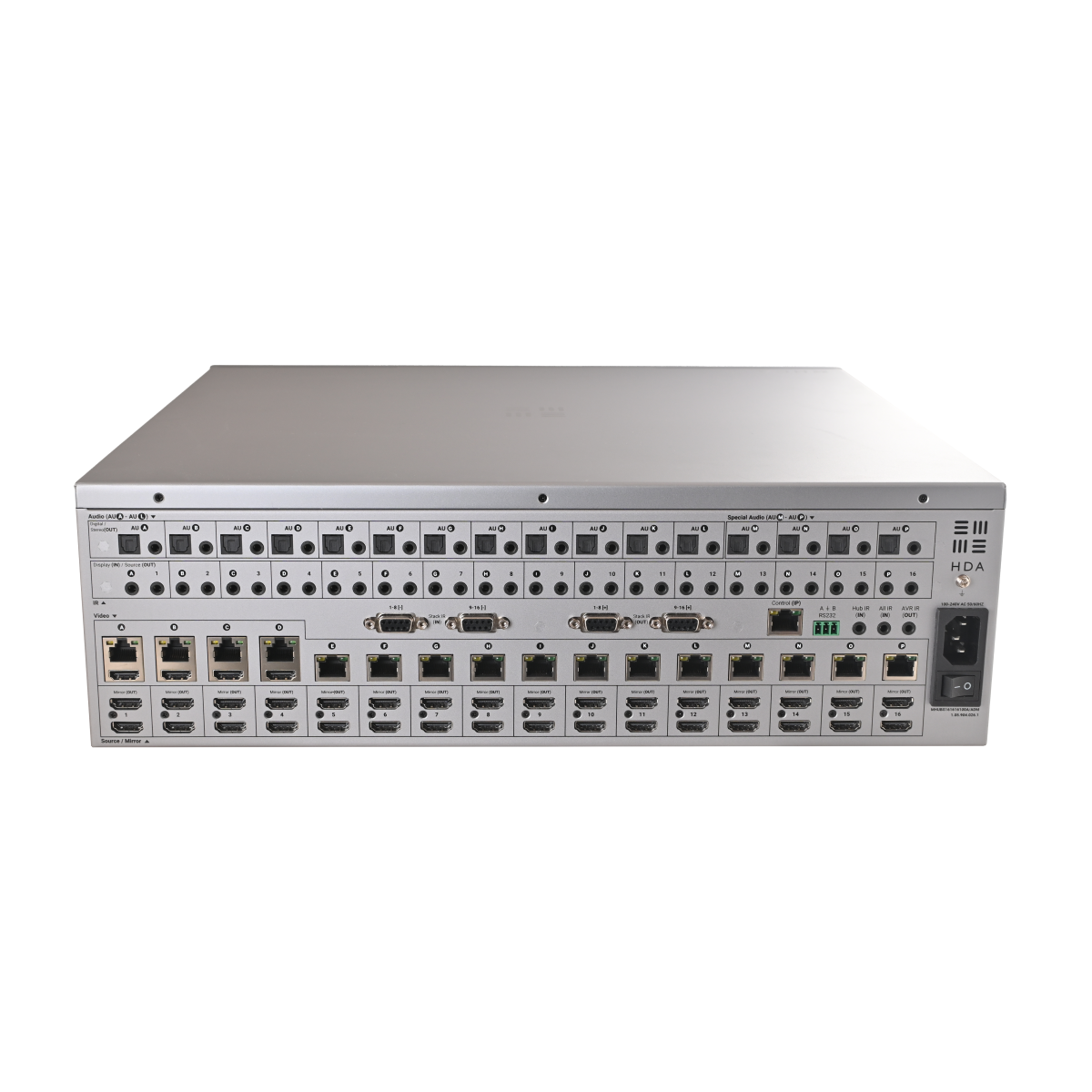

HDA MHUB-S (16+16x16) 100A with Downmixing

Stock Code: MHUBS(16+16x16)100A(DM)

Login to purchase
Need more information?

HDA MHUB-S (16+16x16) 100m with Dolby Atmos Downmixing

The MHUB S (16+16x16) 100A DM takes AV distribution to the next level with integrated downmixing for seamless multi-room audio. It supports 18Gbps video, Dolby Atmos, DTS:X and delivers full 4K HDR content over 100m. With stackable expansion for 160+ zones, this unit offers a cost-effective alternative to AV-over-IP. Integrated uControl and automation system compatibility make it an ideal choice for residential, commercial and entertainment spaces.

  • Advanced Downmixing – Converts multi-channel audio for mixed-use environments
  • Stackable to 160+ Zones – Scalable for large installations
  • uControl for Seamless Management – Simplifies AV control
  • Auto Scaling for 4K & 1080p Displays – Ensures consistent image quality
  • 100m HDBaseT Transmission – Reliable long-distance signal distribution
  • Integrated Audio Routing – Flexible audio extraction and volume control

    • Specification
    Video Inputs: 16 x HDMI
    Outputs: 16x HDBaseT
    16x HDMI mirror outputs
    Resolution Support: Up to 4K UHD @ 60Hz 4:4:4, HDR, Dolby Vision
    Transmission Distance: 100m (4K & 1080p) via HDBaseT
    Audio Support: Downmixing
    ARC
    Independent volume control
    Control Options: uControl, IR, IP, RS232, CEC pass-through
    Power Supply: PoH for receiver units
    Built-in Features: Auto-scaling
    EDID management
    Stackable to 160 zones
    Warranty Info
    Manufacturer's Warranty*: 2-Year Guarantee + 3-Year Extension with HDA Cloud Registration (within 30 days of installation)
    Faulty From New*:
    (Within 28 Days Of Purchase)    		 Return to AWE for assessment.
    Please complete this online Returns Form
    *Terms & Conditions: For further information regarding AWE's returns procedures please see chapters 7 & 8 in our Terms & Conditions
    Name File Name
    MHUB S (8plus8x8 _ 16plus16x16) 100A_DM Manual MHUB S (8plus8x8 _ 16plus16x16) 100A_DM Manual.pdf
    MHUB Stacking Guide MHUB Stacking Guide.docx
    Spec Sheet_ MHUB S (16plus16x16) 100A_DM Spec Sheet_ MHUB S (16plus16x16) 100A_DM.pdf
