Kordz PRS SlimCat™ Cat6A RJ45 Keystone Socket 12 pieces Metallic

Kordz PRS SlimCat™ Cat6A RJ45 Keystone Socket 12 pieces Metallic

Stock Code: KKS-PRSSlim-RJ45-12(MET)

Need more information?

Description
Product Features
Specification
Downloads

Kordz PRS Slim Cat6a Keystone RJ45 Socket, 12 pieces

Metallic T3R48J-C6AS-ME

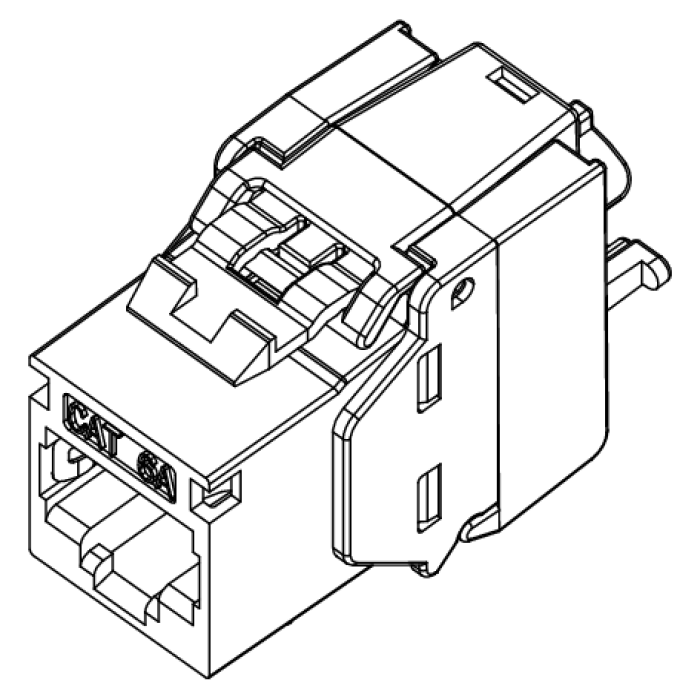

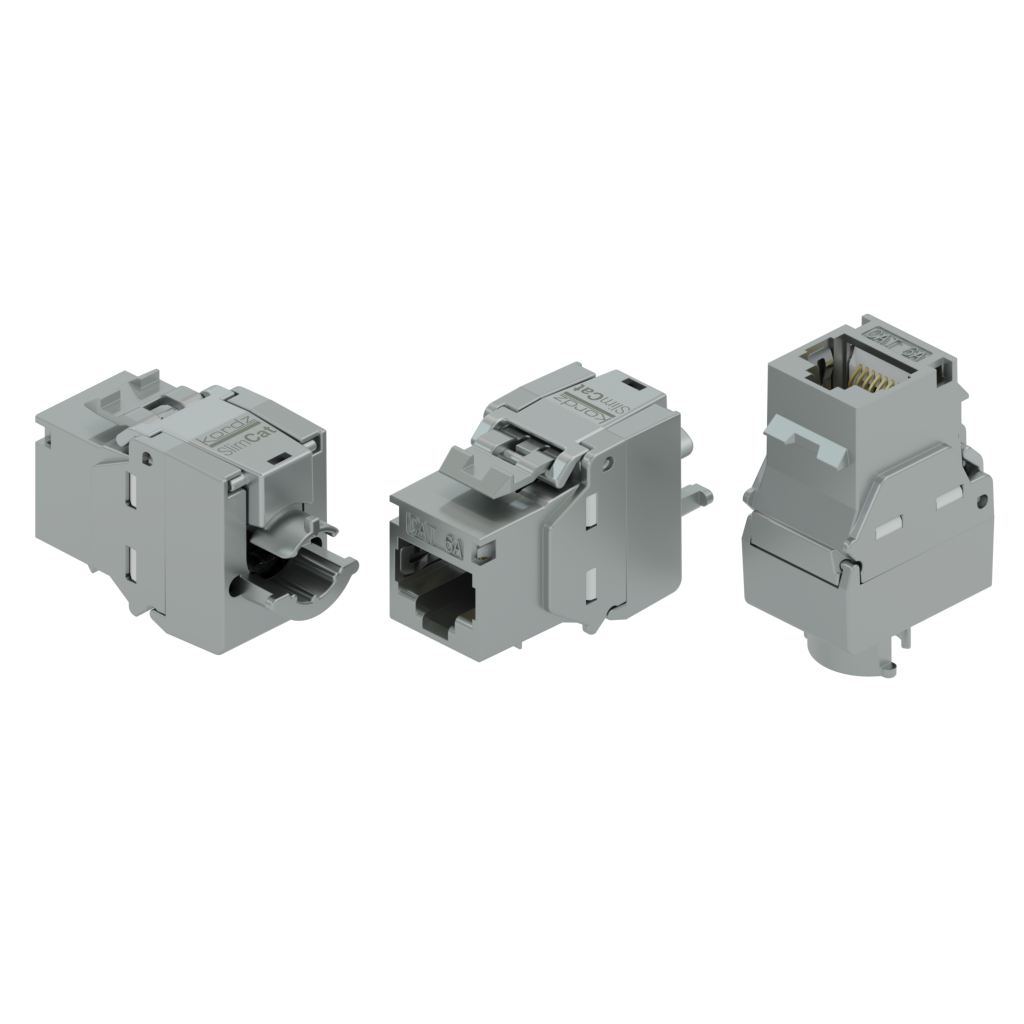

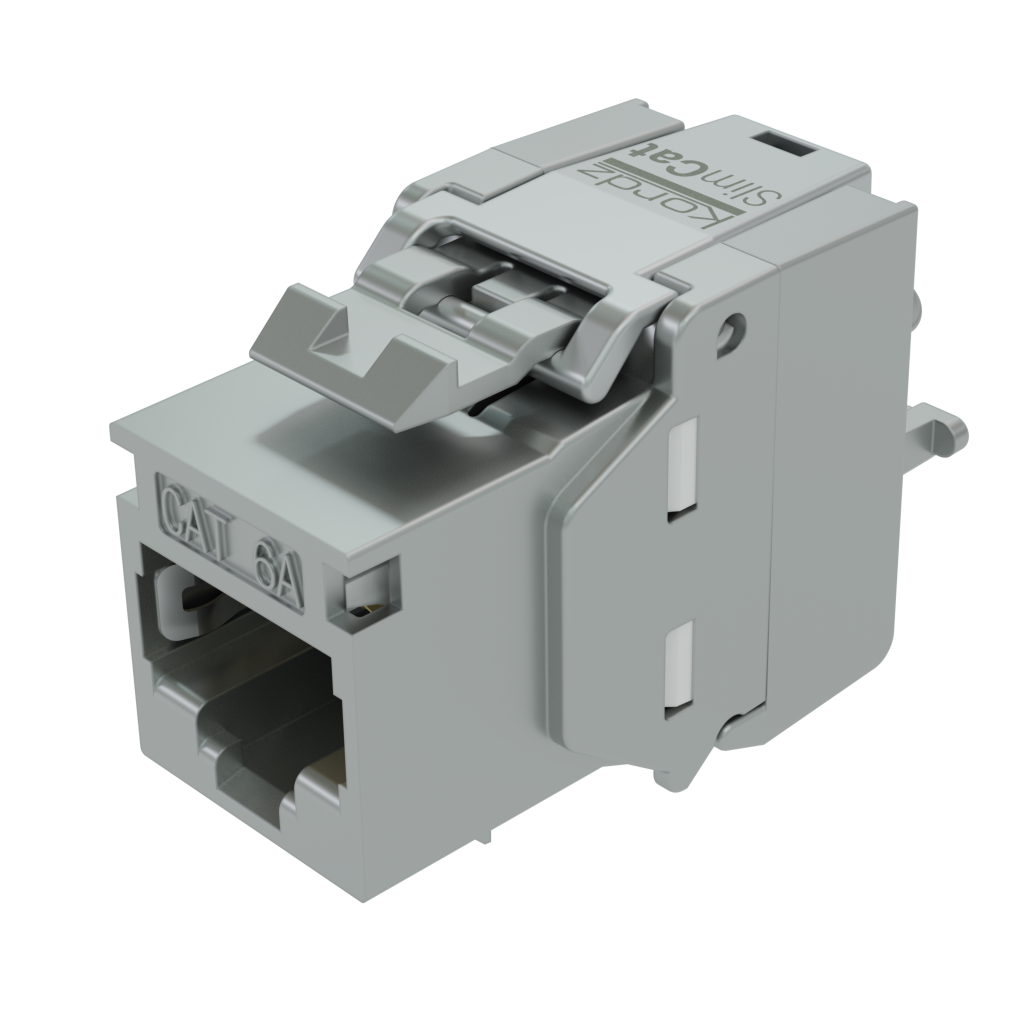

The Kordz PRS SlimCat™ Cat6A Keystone RJ45 Socket is designed specifically for use with the Kordz PRS SlimCat™ Network Cable, enabling professional integrators to deliver ANSI/TIA-568.2-D Cat6A permanent link performance up to 50 metres. Featuring a die-cast zinc-alloy metallic clamshell design and metal latching mechanism, Kordz PRS SlimCat™ Keystones make installation easier, support PoE++ at 100W and fit standard keystone panel cut-outs. Match with other Kordz PRS SlimCat™ Cat6A components for a complete Kordz ecosystem that delivers ‘Connectivity Assured’.

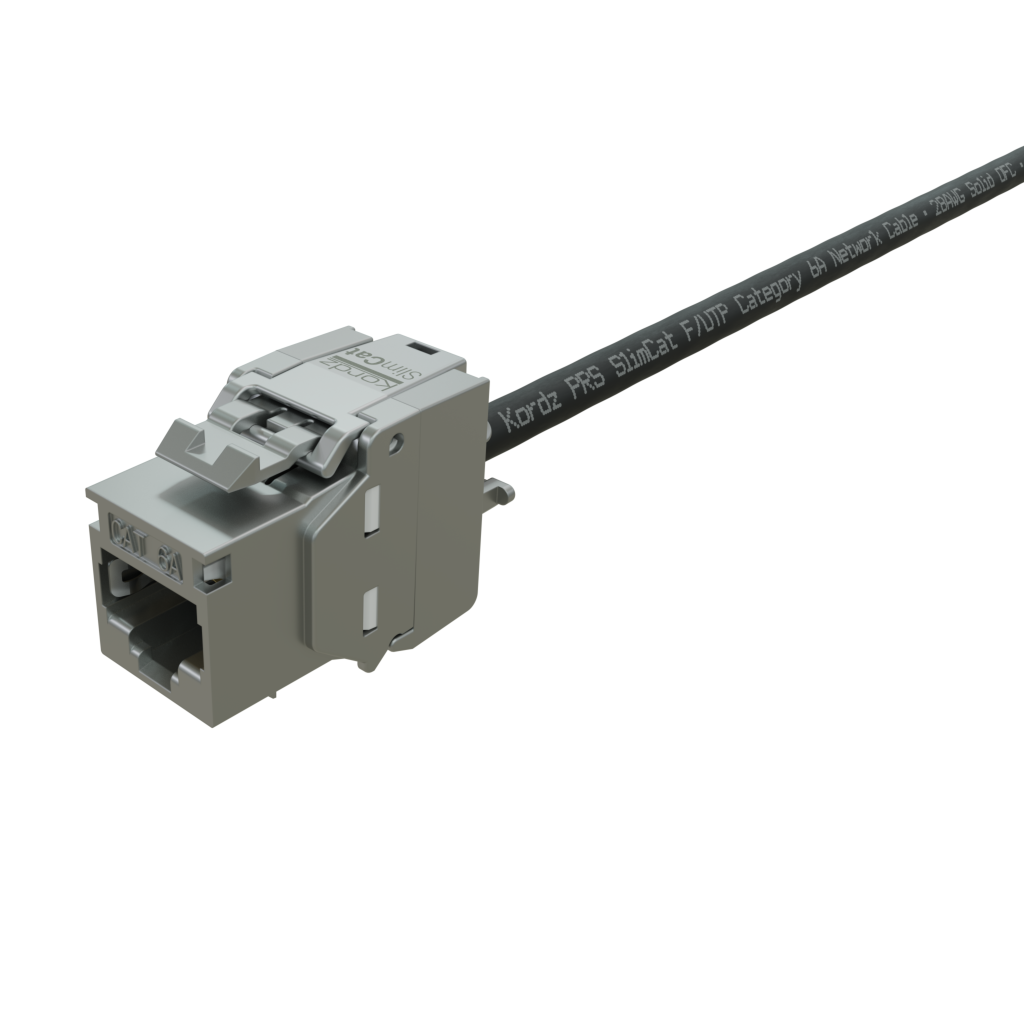

Enables delivery of ANSI/TIA-568.2-D Cat6A permanent link performance up to 50m when paired with Kordz PRS SlimCat™ Cat6A Network Cables

Contacts and wire manager customised for 28AWG conductors

Easy to terminate with metal latching mechanism

Die-cast zinc-alloy metallic clamshell design

3bt 100W PoE++ capable

UL94 V-0 fire-rated

Eco-friendly packaging

Manufactured with quality materials and using advanced manufacturing methods

Lifetime warranty

General Specifications
	Guaranteed Performance Category:	Category 6A
	Applicable Performance Standards:	ANSI/TIA-568-C.2 / ISO/IEC 11802
	Power over Ethernet Performance:	PoE++ (max 100W)
	Power over Ethernet Tested Standards:	IEEE802.3bt
	Shielding Type:	Shielded
	Wiring method:	T568A T568B
Dimensions
	Body Length:	37.65mm 1.48"
	Body Width:	37.65mm 1.48"
	Body Height:	23.64mm 0.93"
	Panel Cut-out Height (recommended):	16.10mm 0.63"
	Panel Cut-out Width (recommended):	14.50mm 0.57"
Mechanical Specifications
	Housing material:	Polycarbonate
	Flammability Rating:	UL 94 V-0
	Housing Colour:	White / Black
Front connection (RJ45 socket)
	Termination method:	RJ45 socket
	Contact material:	Phosphor bronze
	Contact plating:	50µ" Gold Plating
	Insertion durability:	≥ 750 insertions
	Plug retention force:	133N 13.3kg 30lb
Rear connection (IDC side)
	Termination method:	IDC (Insulation Displacement Contact)
	Compatible insulated conductor gauge:	28AWG
	Compatible cable diameter:	5.5mm
	Contact material:	Phosphor bronze
	Contact plating:	100µ" Tin Plated
	Insertion IDC: Termination durability	≥ 20 terminations
	Operating Temperature:	-40° to 66°C
Electrical Specifications Requirement (per IEC 60603-7-4) / Tested Limit
	Voltage/Current rating UL Applications:	125 Volts AC / 1.5 Amps / 125 Volts AC / 1.5 Amps/td>
	Dielectric Withstanding Voltage:	1000 Volts DC / AC Peak / 1000 Volts DC / AC Peak
	Contact Resistance:	200mΩ minimum / ≤ 20mΩ
	Insulation Resistance:	500MΩ / ≥ 500MΩ
	Current carrying capacity:	-- / 1A at 50°C
Warranty
	Manufacturer's Warranty:	The Kordz PRS SlimCat™ Keystone RJ45 Socket is backed by our Lifetime Guarantee that promises maintained product functionality and performance for your lifetime.
	*Terms & Conditions:	For further information regarding AWE's returns procedures, please see chapters 7 & 8 in our Terms & Conditions

Name	File Name
PRS-KS Instruction manual	PRS-KS Instruction manual.pdf
PRS-KS SlimCat Datasheet	PRS-KS SlimCat Datasheet.pdf

Related Products

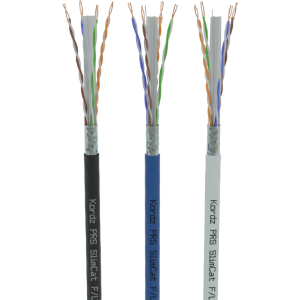

Kordz PRS SlimCat™ Cat6A 305m Network Cable
