Kordz PRS CAT6a RJ45 Keystone Socket

Kordz PRS CAT6a RJ45 Keystone Socket, 6 pieces in Foil Bag

Metallic
T3R45J-C6AS-ME

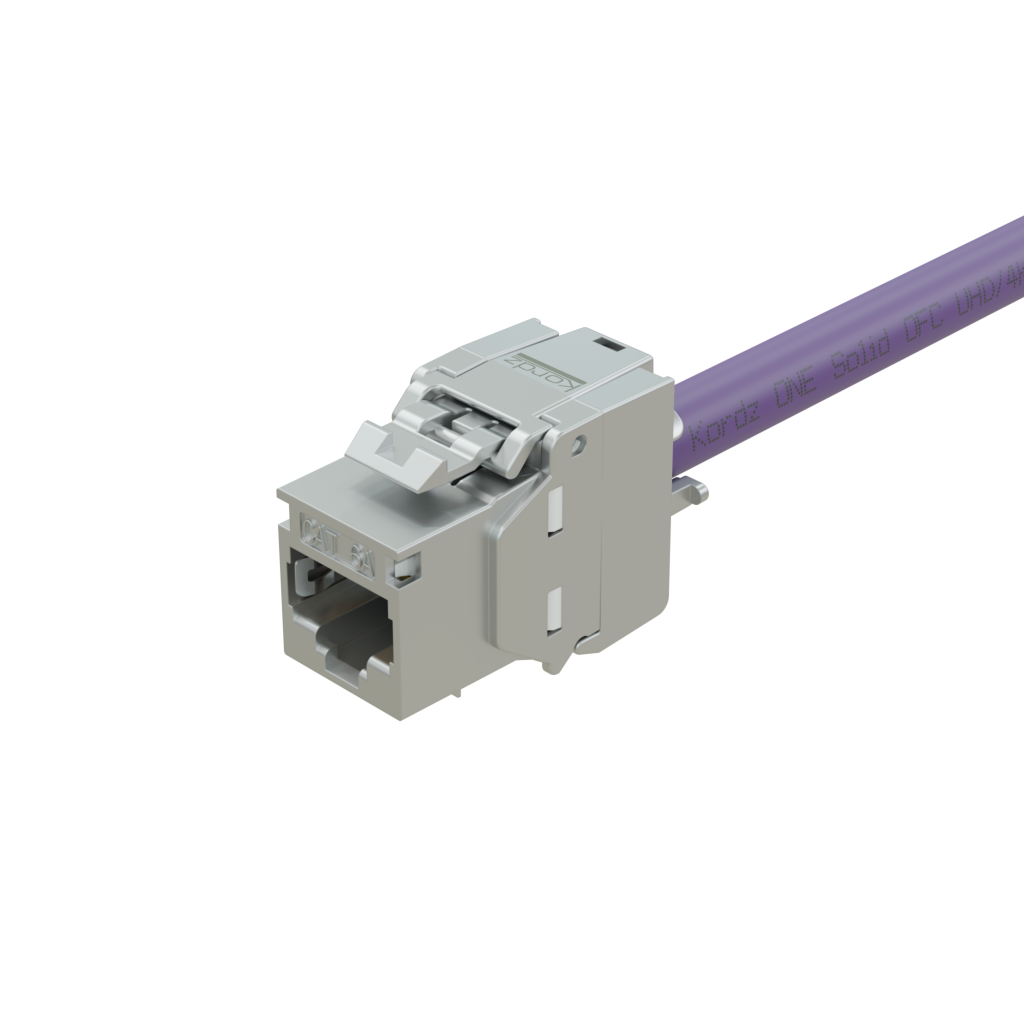

Kordz Keystone RJ45 Sockets perfectly complement Kordz ONE Series Bulk Category Cabling. Featuring a die-cast metal clamshell design and a latching mechanism, Kordz Keystone RJ45 Sockets are very easy to fit. Match them with Kordz PRS Patch Cords for a complete Kordz ecosystem that delivers ‘Connectivity Assured’.

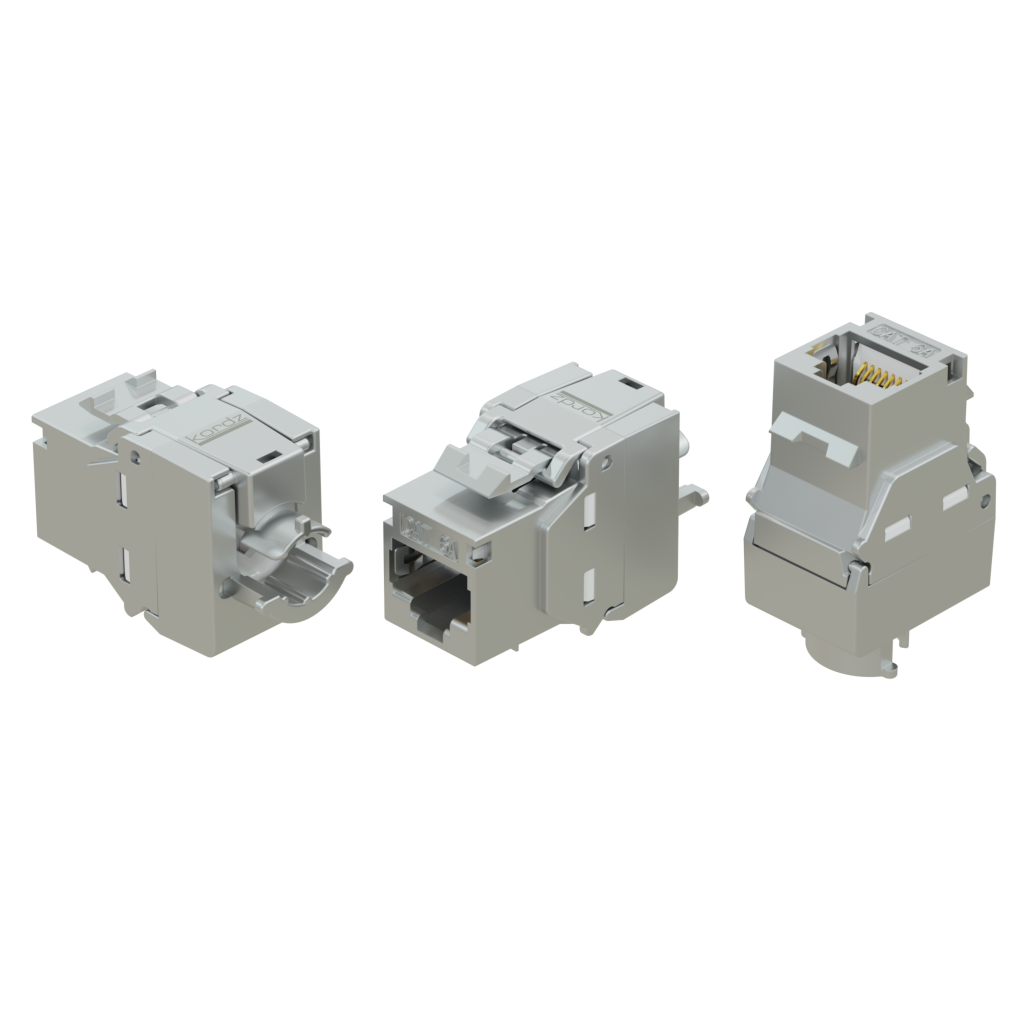

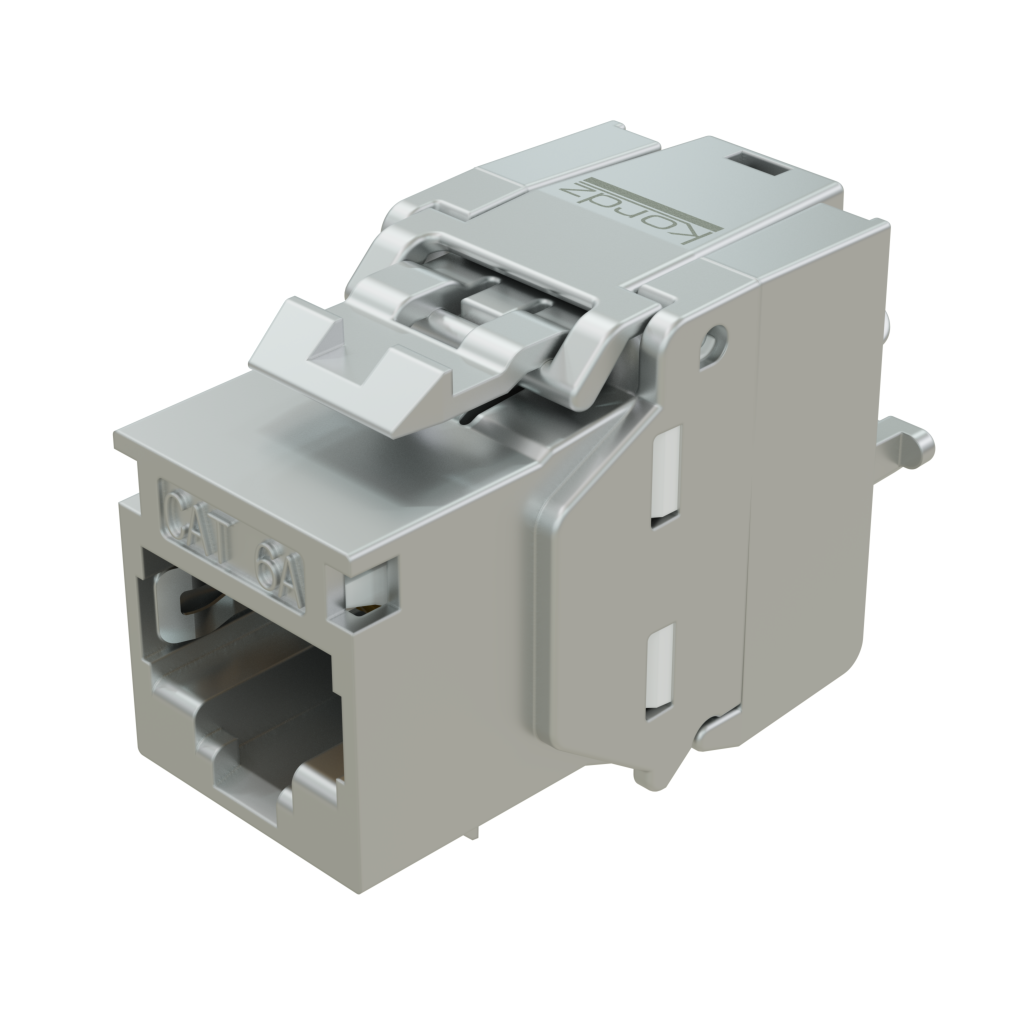

Die-cast metal clamshell design

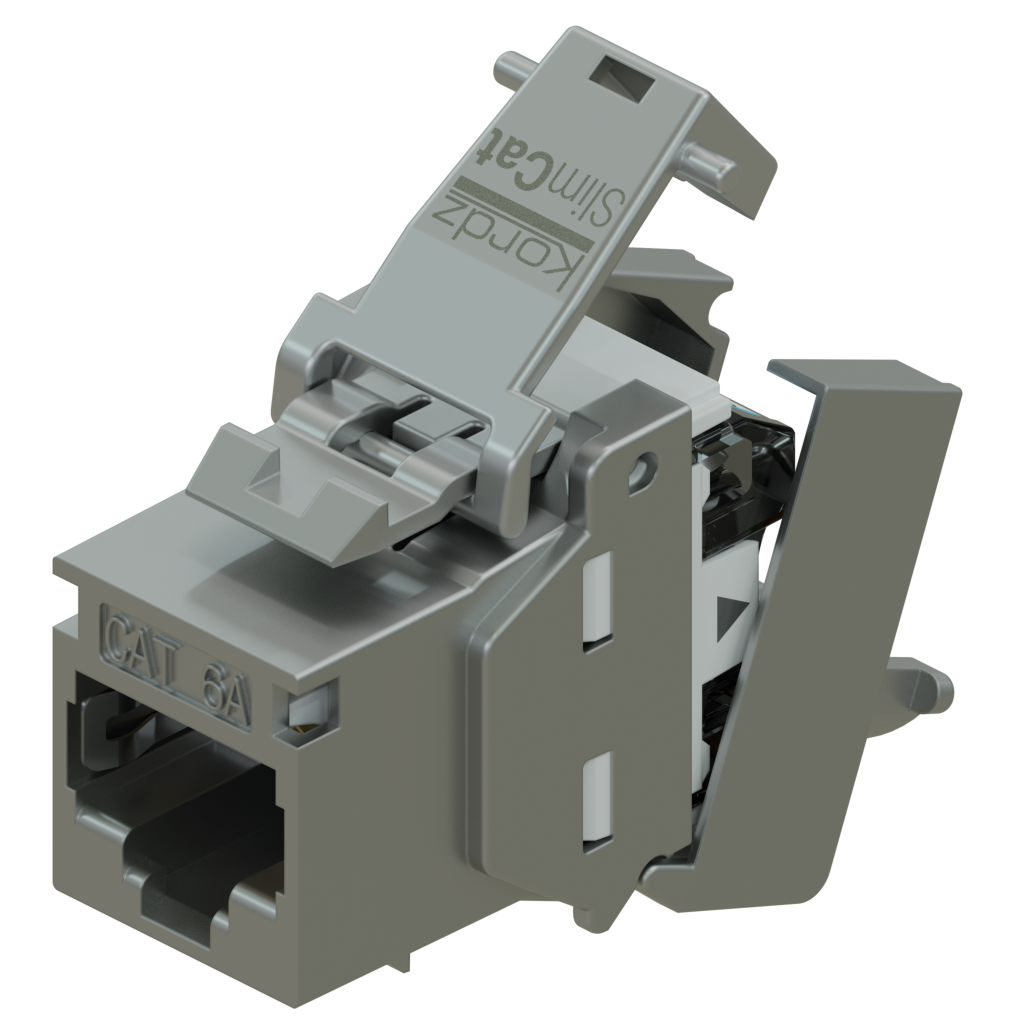

Easy to terminate with latching mechanism

6 pieces per pack

Sturdy and robust shielded construction

Manufactured with quality materials and using advanced manufacturing methods

Backed by the Kordz Lifetime Guarantee

General Specifications
	Guaranteed Performance Category:	Category 6A
	Applicable Performance Standards:	ANSI/TIA-568.2-D
	Power over Ethernet Performance:	IEEE 802.3bt PoE++ (max 100W)
	Power over Ethernet Tested Standards:	IEC 60512-99-002
	Shielding Type:	Shielded
	Wiring method:	T568A T568B

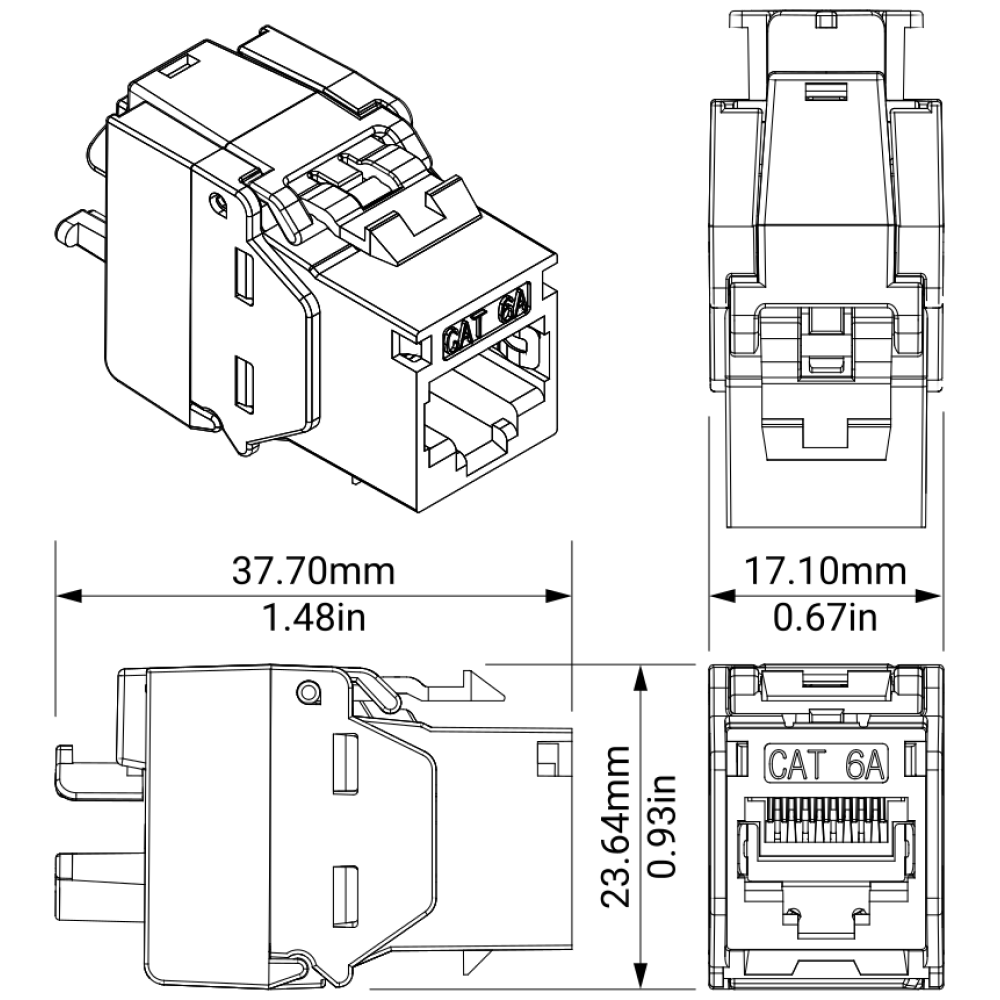

Dimensions
	Body Length:	37.33mm 1.47"
	Body Width:	17.10mm 0.67"
	Body Height:	23.68mm 0.93"
	Panel Cut-out Height (recommended):	16.10mm 0.63"
	Panel Cut-out Width (recommended):	14.50mm 0.57"
Mechanical Specifications
	Housing material:	Zinc Alloy
	Flammability Rating:	UL 94 V-0
	Housing Colour:	Metallic
Front connection (RJ45 socket)
	Termination method:	RJ45 socket
	Contact material:	Phosphor bronze
	Contact plating:	50µ" Gold Plating
	Insertion durability:	≥ 750 insertions
	Plug retention force:	133N 13.3kg 30lb
Rear connection (IDC side)
	Termination method:	IDC (Insulation Displacement Contact)
	Compatible insulated conductor gauge:	min: 26AWG max: 23AWG
	Compatible cable diameter:	min: 5.5mm max: 8.0mm
	Contact material:	Phosphor bronze
	Contact plating:	100µ" Tin Plated
	Insertion IDC: Termination durability	≥ 20 terminations
	Operating Temperature:	-40° to 66°C
Electrical Specifications Requirement (per IEC 60603-7-4) / Tested Limit
	Voltage/Current rating UL Applications:	125 Volts AC / 1.5 Amps / 125 Volts AC / 1.5 Amps/td>
	Dielectric Withstanding Voltage:	1000 Volts DC / AC Peak / 1000 Volts DC / AC Peak
	Contact Resistance:	200mΩ minimum / ≤ 20mΩ
	Insulation Resistance:	500MΩ / ≥ 500MΩ
	Current carrying capacity:	-- / 1A at 50°C
Warranty
	Manufacturer's Warranty:	The Kordz PRS Keystone RJ45 Socket is backed by our Lifetime Guarantee that promises maintained product functionality and performance for your lifetime.
