Kordz PRO Cat6 RJ45 24AWG Crimp Connector 100 pieces

Stock Code: KCC-PRO-RJ45-100

Kordz PRO Cat6 24AWG RJ45 Crimp Connectors

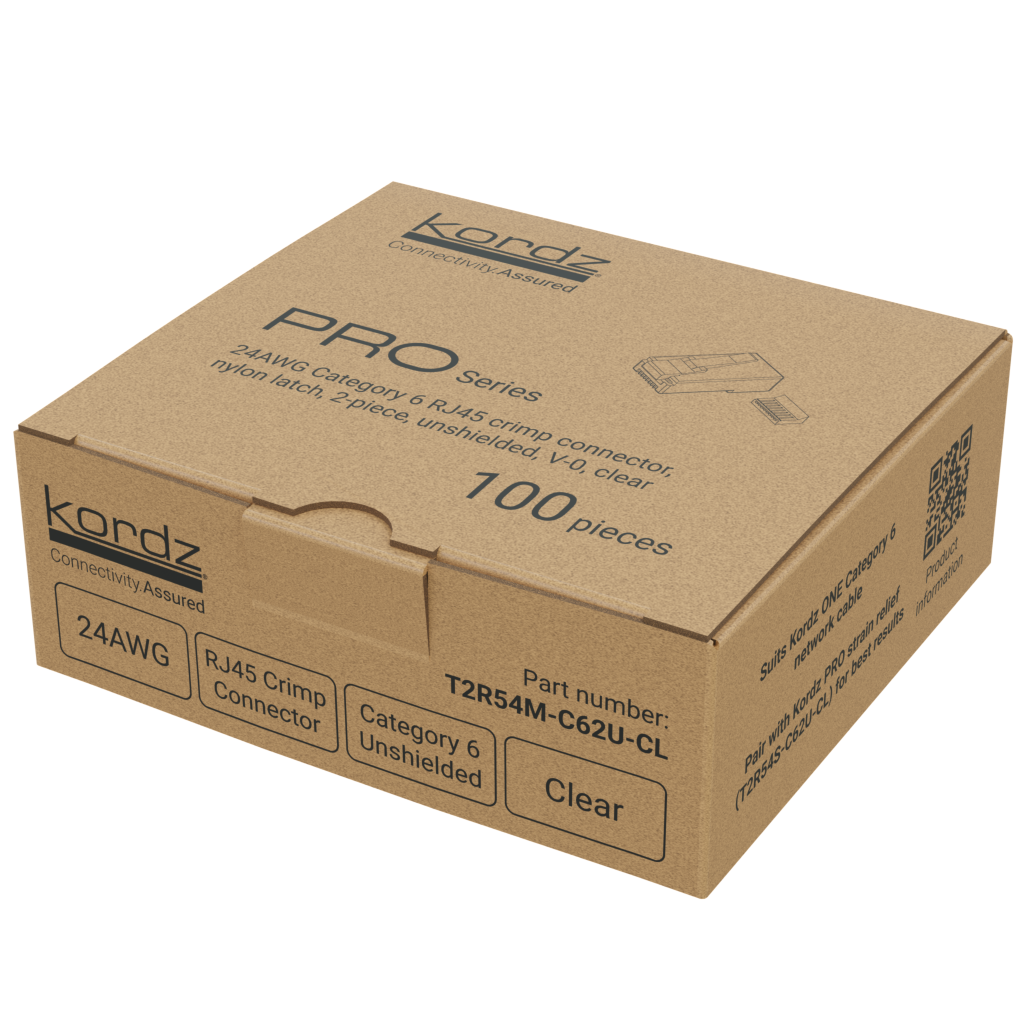

100 pieces in Box, Clear T2R54M-C62U-CL

RJ45
Cat 6
24 AWG
PoE++
Unshielded
UL94 V-0
Snap Proof
Lifetime Warranty


Kordz PRO 24AWG RJ45 Crimp Connectors are a revolutionary solution for networking projects that demand robustness. Resolving a key problem for professional systems technicians, these connectors feature a snap-proof nylon latch, capable of withstanding over 2,000 bend cycles, ensuring robust, long lasting connection and reducing the likelihood for callouts and maintenance. PRO 24AWG RJ45 Crimp Connectors are tested to support IEEE803.2bt POE++ at 100W as well as industry-standard ANSI TIA-568.2-D Category 6 and IEC11801 Class E connecting component performance. This guarantees that the connectors meet the highest standards for data transmission, making them perfect for high-demand networking applications.

The optional Strain Relief features a removable locking pin to reduce the chance of any accidental RJ45 connector disconnects. The tinted pass-through wire manager simplifies the termination process, making it more efficient and error-free. Termination can be achieved using the Kordz ONE Series Crimping Tool. Backed by a lifetime warranty and packaged in 100% recyclable material, the Kordz PRO 24AWG RJ45 Crimp Connector is the professional’s choice for reliable networking installations.

  • Industry standard ANSI-TIA-568.2-D Category 6 & IEC11801 Class E connecting component performance
  • Durable snap-proof nylon connector latch that can withstand over 2,000 bend cycles
  • HDBaseT and PoE system certifiable termination solution

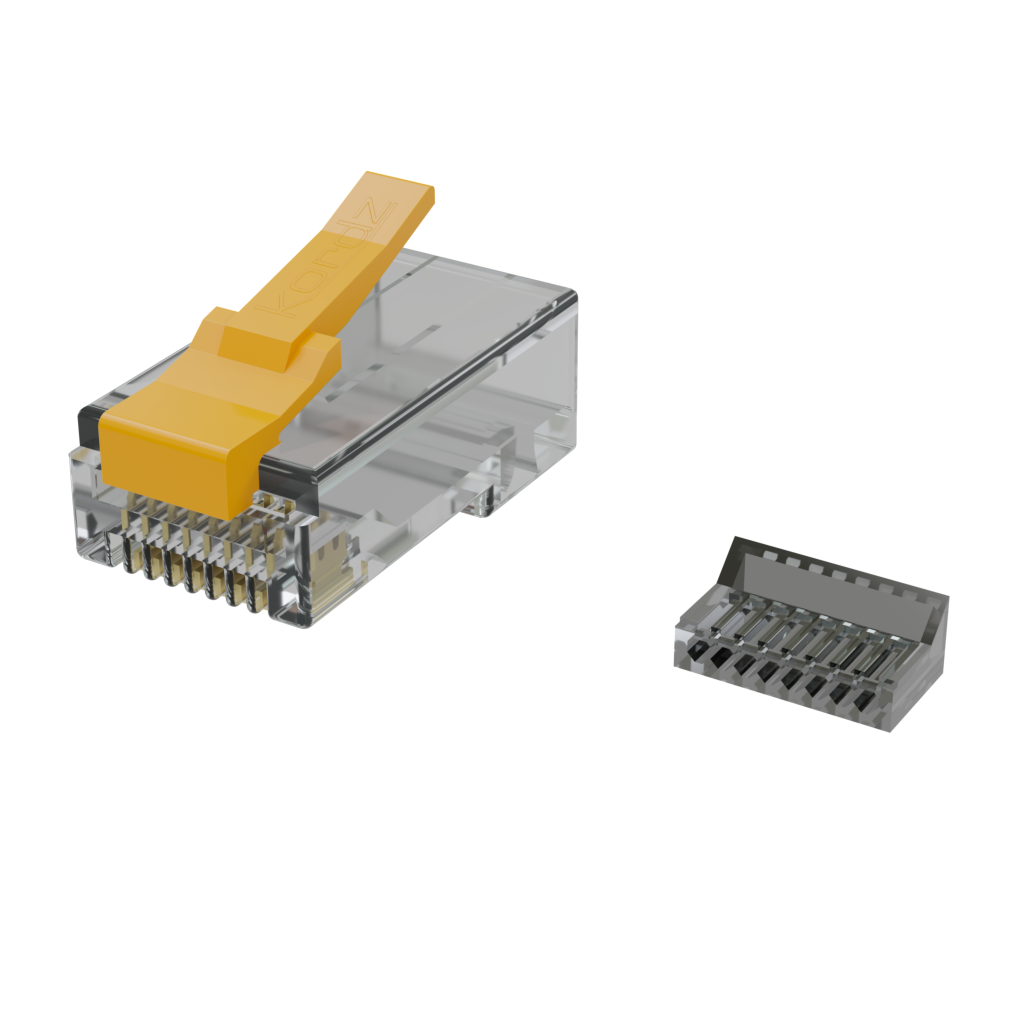

  • Non-push through, two-piece construction with transparent connector body for termination ease
  • Tinted wire-manager for handling ease and insertion verification
  • Optional strain relief featuring a removable locking pin
  • IEEE802.3bt 100W PoE++ capable
  • UL94 V-0 fire-rated
  • 100% recyclable packaging
  • Lifetime warranty
  • General
    Guaranteed Performance category: Category 6
    Applications standard: ANSI/TIA-568.2-D
    Power over Ethernet Performance: IEEE 802.3bt PoE++ (max 100W)
    Power over Ethernet Tested Standards: IEC 60512-99-002
    Shielding Type: Unshielded
    Wiring Method: T568A
    T568B
    Dimensions
    Connector Body Length: 22.50mm | 0.89in
    Connector Body Width: 11.68mm | 0.46in
    Connector Body Height: 6.6mm | 0.26in
    Mechanical
    Construction: Non-pushthrough body with pushthrough wire manager
    Housing Material: Polycarbonate
    Flammability Rating: UL 94 V-0
    Housing Colour: Translucent grey
    Contact Type: 3 prongs (suits solid / stranded wires)
    Gold Plating Thickness: 50μ”
    Latch Material: Nylon composite
    Recommended tool: Kordz ONE-RJ45TOOL1
    Warranty
    Manufacturer's Warranty The Kordz PRO series Crimp Connector and Strain Relief are backed by their Lifetime Guarantee that promises maintained product functionality and performance for your lifetime.
    *Terms & Conditions: For further information regarding AWE's returns procedures, please see chapters 7 & 8 in our Terms & Conditions
    Name File Name
    Kordz PRO-RJ24 Data Sheet Kordz PRO-RJ24 Data Sheet.pdf
