Kordz ONE Cat6 RJ45 Push Through Connector 100 pieces Clear

Stock Code: KC-ONE-RJ45-100

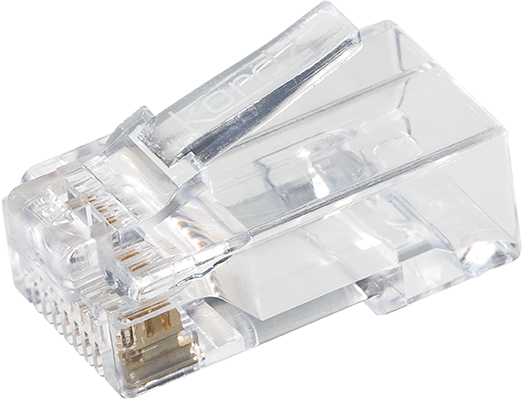

Kordz ONE Cat6 RJ45 Push Through Connector

100 pieces in Jar, Clear
P1R45M-C6XU-CL

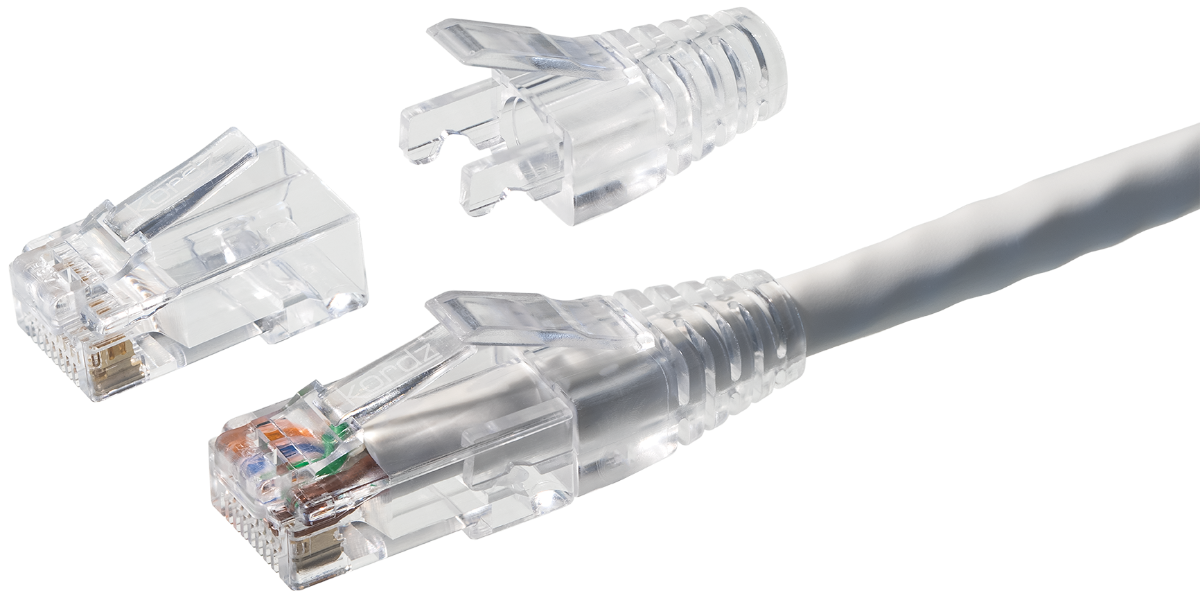

Kordz CAT6 RJ45 field termination connectors are designed and engineered for the installer to make installations easier. Even with something as small as an RJ45 plug, it must be engineered correctly and manufactured with precision processes to ensure that the connection is just going to work. These RJ45 connectors work with both solid and stranded cable 8 pins (gold plated) and 8 conductors. Kordz CAT6 RJ45 field termination connectors make it easy to quickly and efficiently terminate CAT6 wires of any length. Large cable openings reduce the distance between the wires and contacts, creating optimal performance and reliable connections every time. The Kordz Pass Through CAT6 connectors are designed for fast RJ45 connector installations. Conductors easily pass through the RJ45 connector for fast and easy verification of wire sequence.

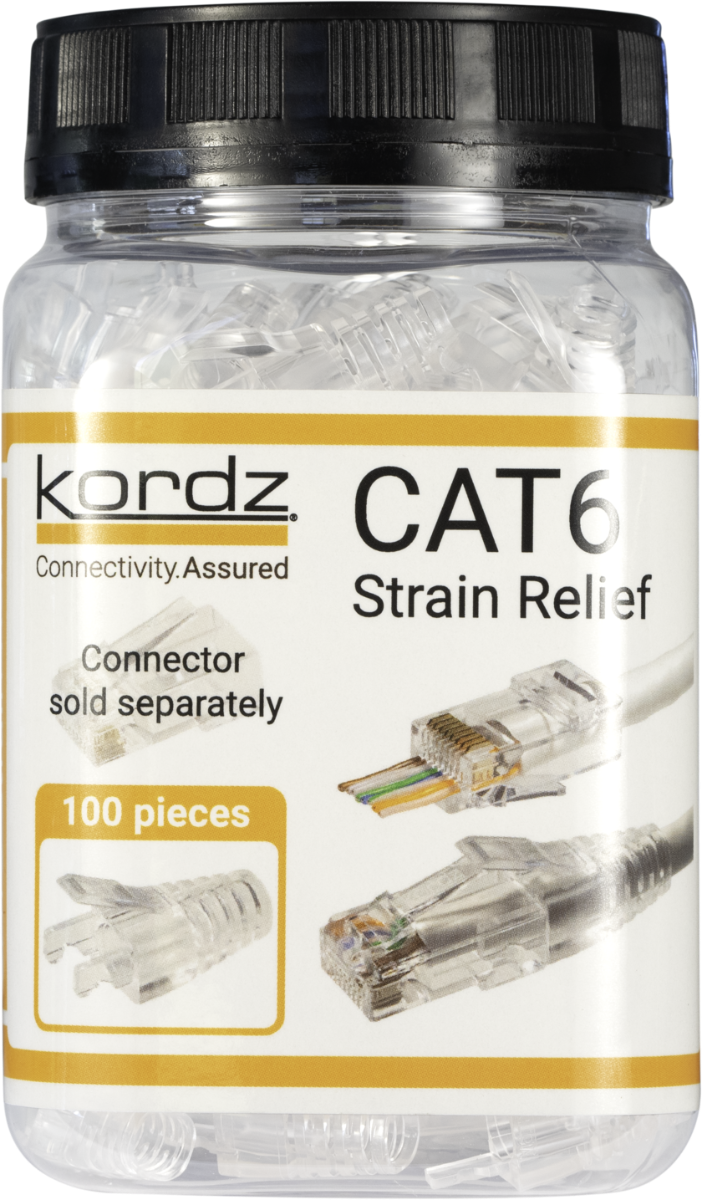

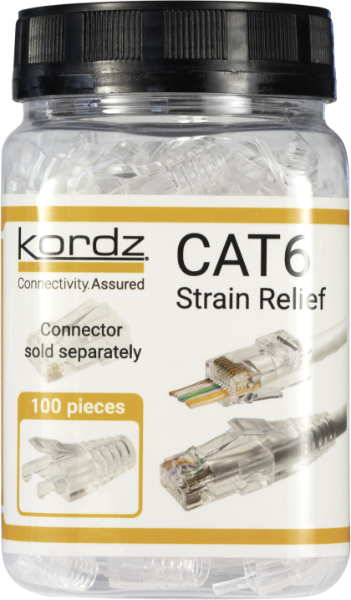

Strain relief parts are sold separately.

Connecter
Performance category: Category 6
Applications standard: TIA/EIA-568-2-D
Housing material: Polycarbonate
UL flammability rating: UL94V-2 [RoHS Compliant]
Contact type: Three prong pin for solid/stranded wires
Contact material: Copper
Contact plating: Gold Plating 50μ [1.27μm]
Housing colour: Clear
Shield type: Non-shielded
Operating temperature: -10ᴼ to 60ᴼC
Voltage/Current rating [UL applications]: 125Volts AC/1.5Amps
Dielectric withstanding voltage: 1500Volts DC / AC peak
Contact resistance: ≤ 20mΩ
Insulation resistance: ≥ 500MΩ
Insertion/Extraction cycles: ≥ 1250 Cycles
Wire gauge min/max: min: 0.92mm Ø
max: 1.02mm Ø
Conductor diameter min/max min: 0.405mm Ø (26AWG)
max: 0.511mm Ø (24AWG)
Maximum cable jacket diameter: 6.5mm ODØ
Recommended tool: Kordz ONE-RJ45TOOL1
Name File Name
ONE-RJ45 Connectors Datasheet ONE-RJ45 Connectors Datasheet.pdf
