Kordz PRO Slim Cat6 Outdoor Network Cable 305m Black
Kordz PRO Slim Cat6 Outdoor Network Cable 305m Black

Kordz PRO SlimCat Cat6 Outdoor Network Cable 305m Black

Stock Code: KON-PROSlim-Cat6-305(BLK)

Login to purchase
Need more information?

Kordz PRO SlimCat Cat6, Outdoor Network Cable

305m in Reel Box, Black K23403-305M-BK

SlimCat
1 Gbps
10 Gbps
28 AWG
Cat 6
UUTP
PoE++
UV Stabilised
PE
Reel Box
5 Year Warranty


Delivering all the power and performance of Cat6 outdoor cable in half the size, the Kordz PRO SlimCat Outdoor Cat6 Network Cable revolutionises outdoor connectivity and goes where other cables can’t. The slim and flexible, yet robust design supports PoE++ for high performance power and data transmission, making it perfect for tight pathways and discrete installations. Ideal for IP cameras, Wi-Fi access points and smart doorbells, it features a black PE UV-stabilised jacket engineered to withstand harsh external conditions and complies with EU, UK and Australian standards. It works seamlessly with existing PRO SlimCat system components and comes backed by Kordz’ 5 Year Warranty.

  • UV-stabilised PE jacket compliant with EU, UK and AU standards
  • Fully compatible with existing PRO SlimCat system components
  • Reduced bundle sizes that are half the cross-sectional area of 23/24 AWG network cable bundles
  • Performs to industry standards and is fully featured including PoE++ up to 50m
  • Conveniently packaged on a 305m drum
  • Slim, flexible design enabling discreet installations and dense cable pathways
  • Engineered to meet the demands of modern outdoor PoE applications
  • Kordz quality, as backed by a 5 Year Warranty.

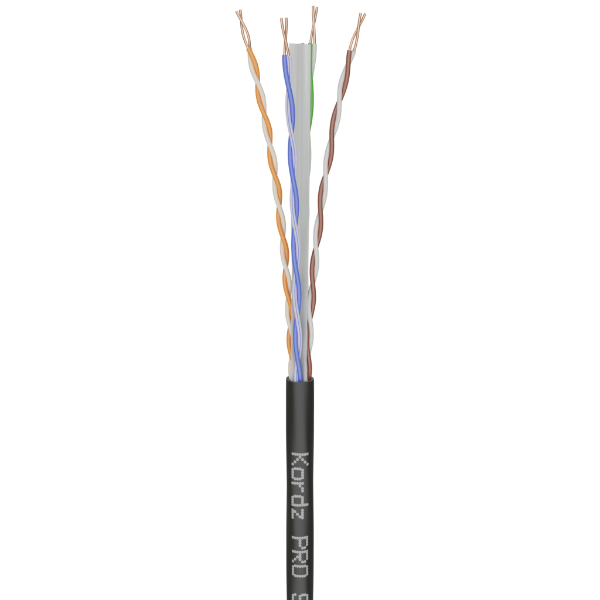

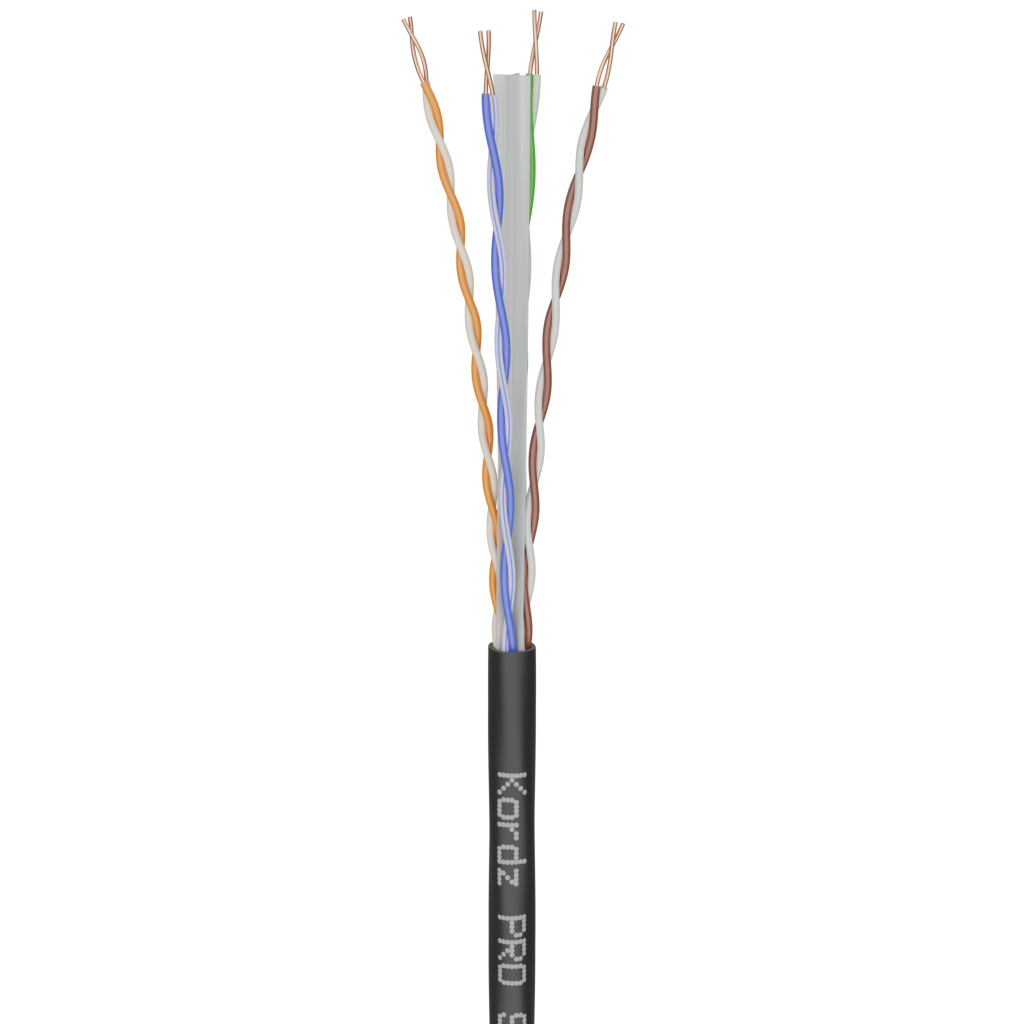

    • Construction
    Conductor: 28AWG solid OFC 0.338 +0/-0.02mm
    Insulation: Polyethylene, 0.61±0.1 mm
    Twisting: 4 twisted pairs of conductors, not bonded
    Twisted Pair Colour Code: 1 – white-blue/blue
    2 – white-orange/orange
    3 – white-green/green
    4 – white-brown/brown
    Shielding : Unshielded (U/UTP)
    Cable lay up: Non-Metallic cross separator
    Jacket Material: UV resistant Polyethylene-based composite
    Outer diameter: 3.9 ± 0.5 mm
    Mechanical
    Minimum Bend Radius: without load ≥ 16 mm
    with load ≥ 32 mm
    Temperature Range: During operation: -20 °C to 60°C
    During installation: 0°C to 50°C
    Electrical Properties
    (- at 20°C ± 5°C)
    DC Resistance: max. 23.6 Ω/100 m at 20°C
    Resistance Unbalance: max. 4% at 20°C
    Insulation resistance (500V): min. 5000 MΩ/km at 20°C
    Mutual capacitance: max. 5.6 nf/100 m at 1 kHz
    Capacitance Unbalance (Pair to Ground): max. 330 pf/100 m at 1 kHz
    Nominal velocity of propagation : nom. 67%
    Test Voltage: 1kV / 1 min
    Warranty
    Manufacturer's Warranty: The Kordz PRO SlimCat Cat6 U/UTP Outdoor Network Cable is backed by their 5 Year Product Guarantee
    *Terms & Conditions: For further information regarding AWE's returns procedures, please see chapters 7 & 8 in our Terms & Conditions
    Name File Name
    Kordz PRO SlimCat Outdoor Network Cables Kordz PRO SlimCat Outdoor Network Cables.pdf
