Kordz ONE Cat6 Outdoor Network Cable 305m Black

Stock Code: KON-ONE-Cat6-305(BLK)

Need more information?

Description
Product Features
Specification
Downloads

Kordz ONE Cat6, Outdoor Network Cable

305m in Reel Box, Black K13003-305M-BK

The professional grade Cat 6 Outdoor Cable designed and engineered for systems integrators that’s robust, reliable and easy to install. Delivering ANSI/TIA-568.2-D compliant performance with robust durability, it features a UV-stabilised PE jacket, withstands harsh weather conditions and meets EU, UK, and Australian standards. Its compact 5.4mm diameter and solid OFC conductors ensure flexibility and easy handling. Supporting 1Gbps performance up to 100m and PoE++ up to 100W, this cable offers reliable connectivity for IP cameras, Wi-Fi access points and other outdoor devices.

UV-stabilised PE jacket compliant with EU, UK and AU standards

24AWG solid OFC conductors for durable, reliable performance

ANSI/TIA-568.2-D compliant for 1Gbps up to 100m and 10Gbps up to 55m

Supports PoE++ up to 100W

4mm diameter for flexible and compact installation in tight spaces

Ideal for connecting outdoor IP cameras, Wi-Fi access points and smart doorbells

Convenient Reel-in-Box packaging with metre-marked cable for precise installation

Compatible with existing Kordz Cat6 networking components for streamlined integration

Kordz quality, as backed by a 5 Year Warranty.

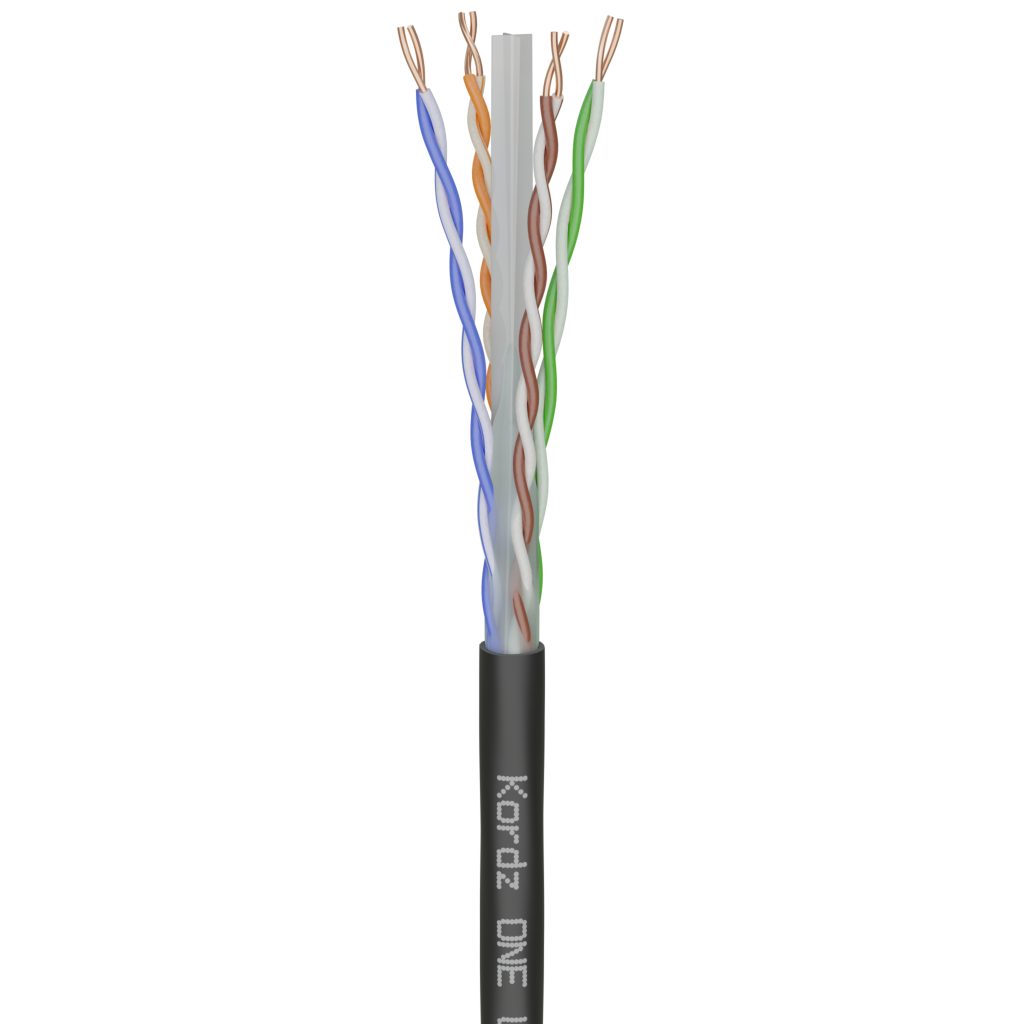

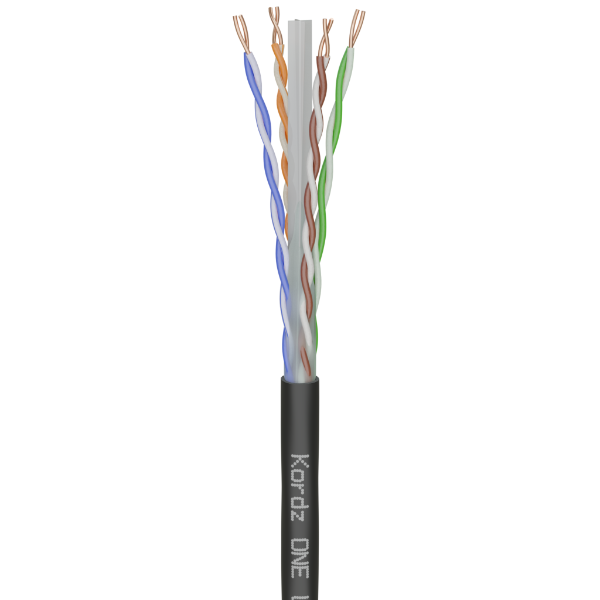

Construction
	Conductor:	24AWG solid OFC 0.526 ± 0.02mm
	Insulation:	Polyethylene, 0.91 ± 0.1 mm
	Cable lay up:	4 twisted pairs of insulated conductors with cross separators
	Twisted Pair Colour Code:	1 – white-blue/blue 2 – white-orange/orange 3 – white-green/green 4 – white-brown/brown
	Shielding :	Unshielded (U/UTP)
	Jacket Material :	UV-stabilised Polyethylene-based composite
	Outer diameter:	5.4 ± 0.3 mm
Mechanical
	Minimum Bend Radius:	without load ≥ 21.6 mm” with load ≥ 43.2 mm
	Temperature Range:	During operation: -20 °C to 60°C During installation: 0°C to 50°C
Electrical Properties (- at 20°C ± 5°C)
	DC Resistance:	max. 9.38 Ω/100 m at 20°C
	Resistance Unbalance:	max. 5% at 20°C
	Insulation Resistance (500V):	min. 5000 MΩ/km at 20°C
	Mutual Capacitance:	max. 5.6 nf/100 m at 1 kHz
	Capacitance Unbalance (Pair to Ground):	max. 330 pf/100 m at 1 kHz
	Nominal Velocity of Propagation:	nom. 67%
	Test Voltage:	1kV / 1 min
Warranty
	Manufacturer's Warranty	The Kordz ONE Cat6 U/UTP Outdoor Network Cable is backed by their 5 Year Product Guarantee.
