Kordz ONE Cat6 Direct Burial Network Cable 305m Black

Stock Code: KON-ONE-Cat6-DB-305(BLK)

Need more information?

Description
Product Features
Specification
Downloads

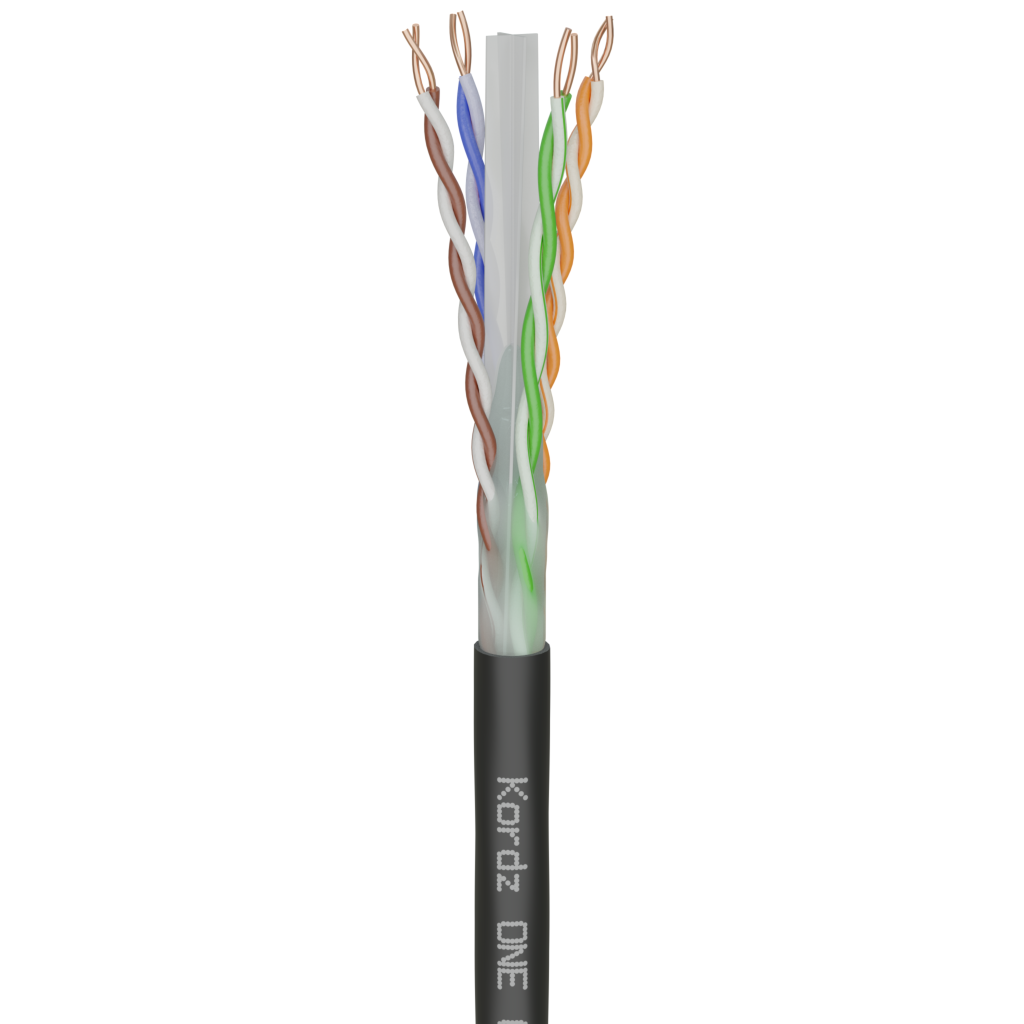

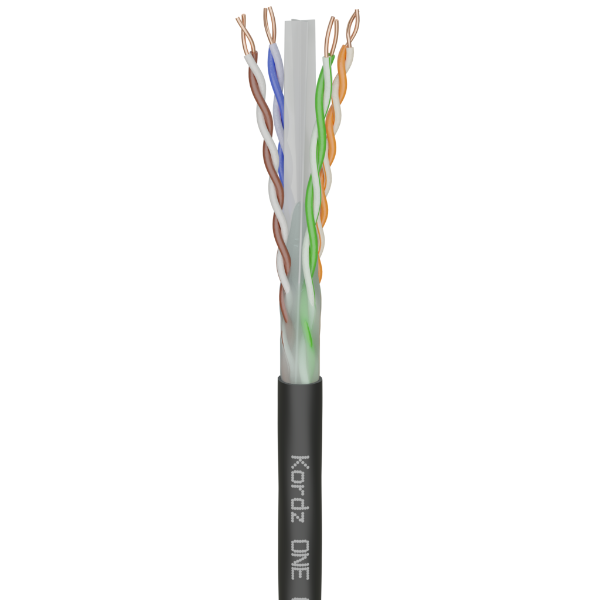

Kordz ONE Cat6, Direct Burial Network Cable

305m Plywood Reel, Black K14703-305M-BK

The Kordz ONE Cat6 Direct Burial Network Cable is the professional grade solution for long-lasting performance in direct burial installations. Designed and engineered for systems integrators, it features a UV-stabilised PE jacket and water-blocking gel filler to withstand harsh underground conditions. Meeting ANSI/TIA-568.2-D Cat6 standards, it supports reliable 1Gbps data transmission up to 100m, 10Gbps up to 55m, and PoE++. With solid 24AWG conductors and a durable 6.3mm design, this cable offers robust, easy-to-install connectivity for buried network projects, including IP cameras, Wi-Fi access points, and security systems, all backed by Kordz’ 5 Year Warranty.

UV-stabilised PE jacket with water-blocking gel filler for durability in underground installations

24AWG solid OFC conductors for reliable and long lasting performance

ANSI/TIA-568.2-D compliant for 1Gbps up to 100m and 10Gbps up to 55m

Supports PoE++ up to 100W

3mm diameter for flexible and easy installation in confined spaces

Ideal for direct burial applications, such as security cameras, Wi-Fi access points and smart doorbells

Convenient wooden reel packaging with metre-marked cable for precise installation

Compatible with existing Kordz Cat6 networking components for streamlined integration

Kordz quality, as backed by a 5 Year Warranty.

Construction
	Conductor:	24AWG solid OFC 0.546 + 0.015mm
	Insulation:	Orange & Brown pairs: Polyethylene, 1.05 ± 0.1 mm Blue & Green pairs: Foam PE, 1.05 ± 0.1 mm
	Cable lay up:	4 twisted pairs of conductors with non-metallic cross separator
	Twisted Pair Colour Code:	1 – white-blue/blue 2 – white-orange/orange 3 – white-green/green 4 – white-brown/brown
	Filler:	Water-resistant gel
	Buffer:	Mylar tape
	Jacket Material:	UV-stabilised Polyethylene-based composite
	Outer Diameter:	6.3 ± 0.5 mm
Mechanical
	Bend Radius:	without load ≥ 25.2 mm” with load ≥ 50.4 mm
	Temperature Range:	During operation: -20 °C to 60°C During installation: 0°C to 50°C
Electrical Properties (- at 20°C ± 5°C)
	DC Resistance:	max. 9.38 Ω/100 m at 20°C
	Resistance Unbalance:	max. 2% at 20°C
	Insulation Resistance (500V):	min. 5000 MΩ/km at 20°C
	Mutual Capacitance:	max. 5.6 nf/100 m at 1 kHz
	Capacitance Unbalance (Pair to Ground):	max. 330 pf/100 m at 1 kHz
	Nominal Velocity of Propagation:	nom. 63% c
	Test Voltage:	1kV / 1 min
Warranty
	Manufacturer's Warranty:	The Kordz ONE Cat6 U/UTP Direct Burial Network Cable is backed by their 5 Year Product Guarantee.
