Kordz PRO HDMI 5V Power Injector 0.50m Grey 1PK

Kordz PRO HDMI 5V Power Injector 0.50m Grey 1PK

Stock Code: KPI-PRO-5V-0.50-1(GRY)

Need more information?

Description
Product Features
Specification
Downloads

Kordz PRO HDMI 5V Power Injector, 0.50m in Paper Bag

1 Pack, Grey PRO-HD5VI

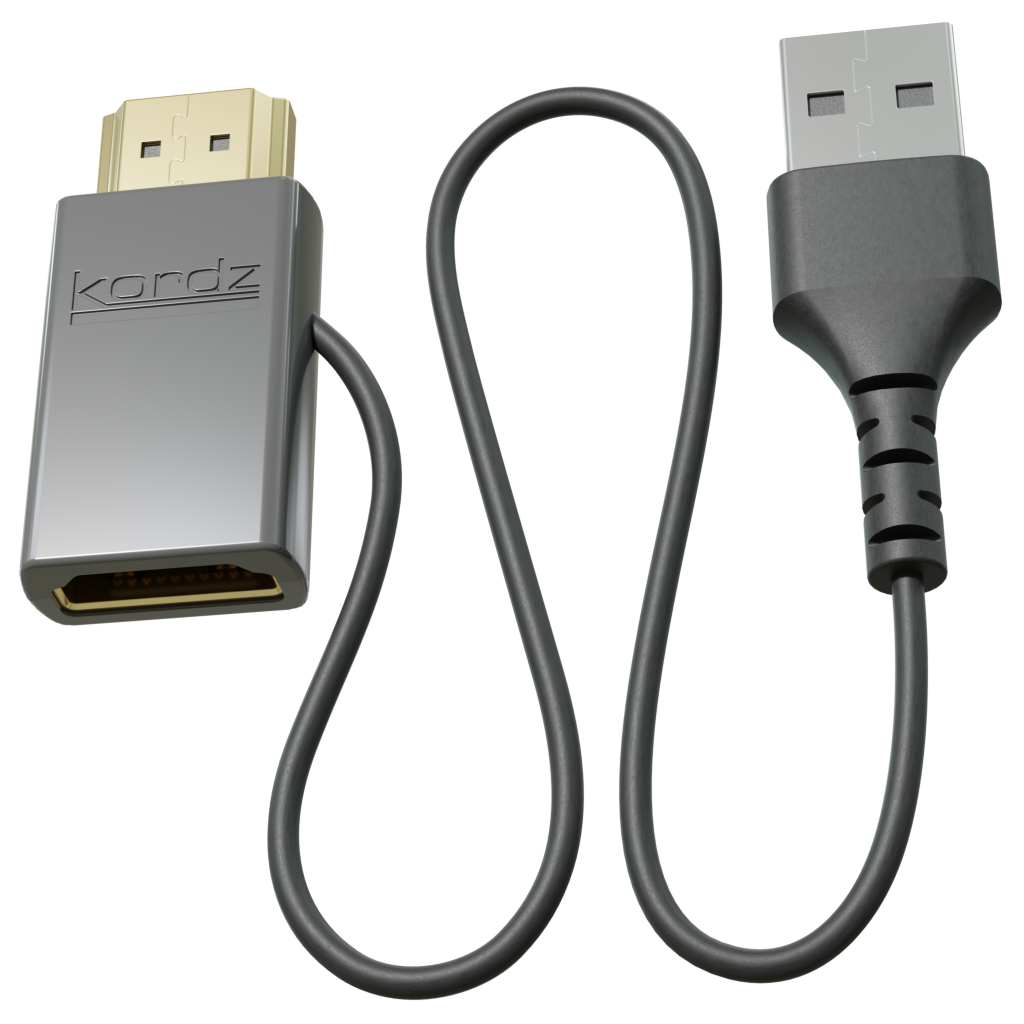

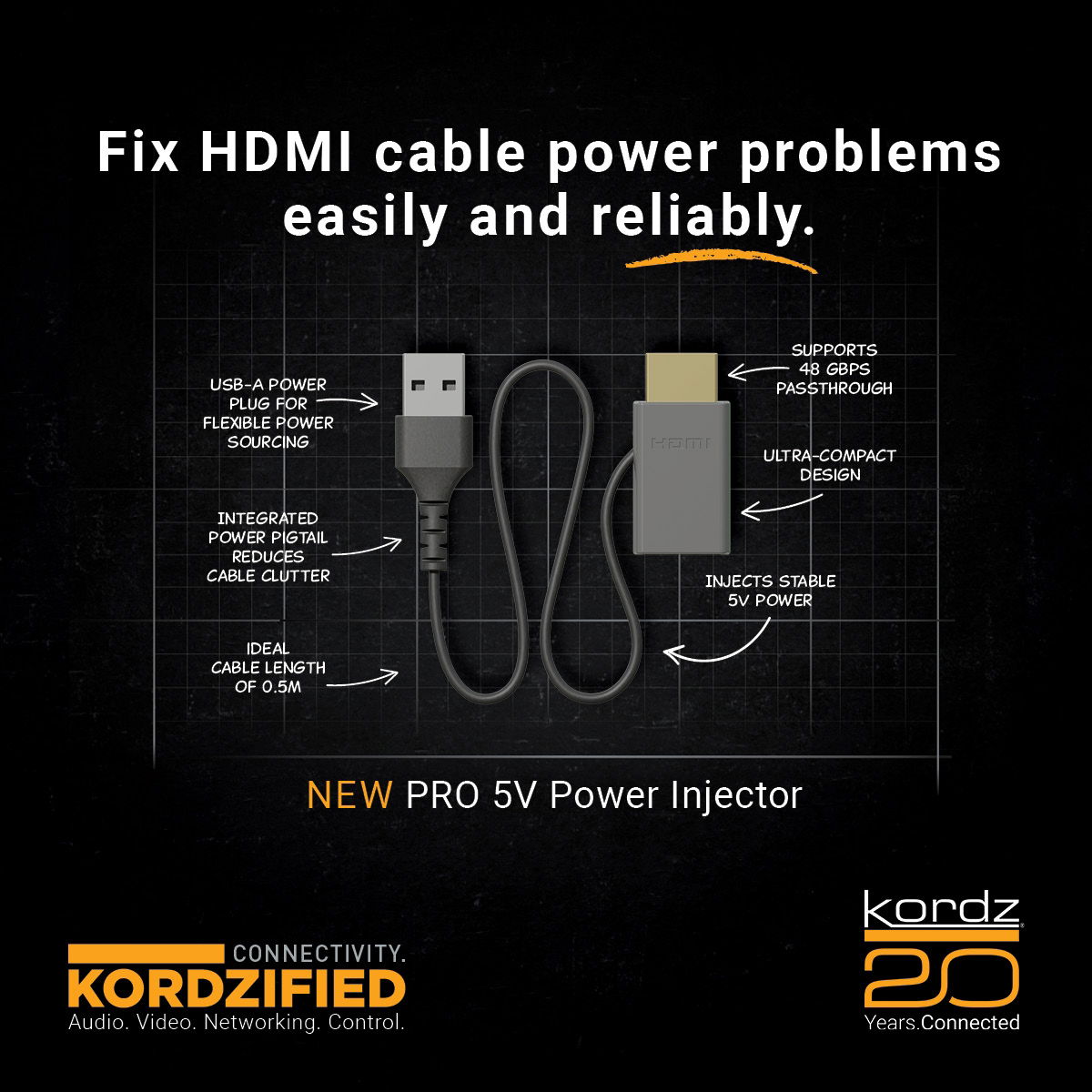

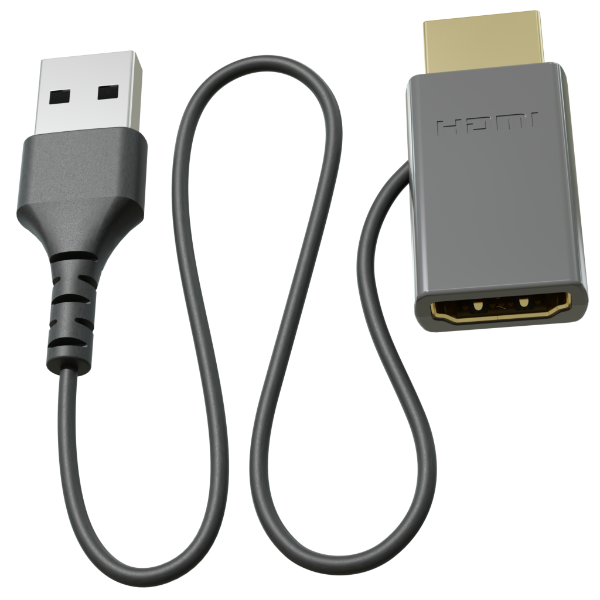

The Kordz PRO HDMI 5V Power Injector is the easy and reliable way to fix power issues in professional HDMI installations. Designed by integrators for integrators, it injects stable 5V power directly into the HDMI signal path, ensuring Active HDMI cables and connected devices operate reliably, even when source devices fail to provide sufficient power. Designed with an ultra-compact form factor, integrated power pigtail, and USB-A power plug, it’s perfect for tight installation spaces. With 48Gbps passthrough and a lightweight design, this power injector is the must-have solution for professional integrators seeking faultless HDMI performance.

Injects stable 5V power into the HDMI 5V pin for reliable Active HDMI cable operation

Supports 48Gbps passthrough for uncompressed 8K/10K video

Ultra-compact design for easy installation in high-density setups

Integrated power pigtail reduces cable clutter in tight spaces

USB A power plug for flexible power sourcing

Thin and flexible 0.5m USB-A cable ideal for installation

Lightweight construction prevents added strain on HDMI sockets

Individually tested for consistent quality and performance

Backed by a 2 Year Warranty for peace of mind

Connections
	Input connector:	HDMI-A female
	Output connectors:	1 x HDMI-A male
	Power Connector:	1x USB-A (50cm cable)
	Contact Material:	24kt. Gold-plated
Electric Signal
	Maximum pixel clock / bandwidth:	4K@60Hz, UltraHD, 2160p
	Digital video formats:	HDMI High Speed w. Ethernet compatible
	Digital audio formats:	HDMI High Speed w. Ethernet compatible
	HDCP:	Yes
	CEC:	Yes
	EDID:	Yes
Construction
	Main Conductors:	Stranded OFC 30 AWG
	Cable Jacket:	VW-1 PVC Composite, 2.0mm, 0.08in Ø
	Connector Shell:	Stainless Steel , Gold-plated
	Insulation Resistance:	10MΩ(Min) 100V/DC
	Connector Pins:	Solid OFC, Gold-plated, 30μ”
	Backshell Material:	PVC outer shell, PVC boot & strain relief
Mechanical
	Power consumption:	5V USB
	Cable Diameter:	2.0mm \| 0.2in Ø
	Connector Shell:	Stainless Steel, Gold-plated
	Withdrawal Force HDMI:	>9.8N (1.0kg/ 2.2 lbs), <39.2N (4kg / 8.8 lbs)
	Withdrawal Force USB:	>10N (1.0kg / 2.2lbs), <35N (3.5kg / 7.8 lbs)
	Connector Lifetime:	>10000 times
Warranty Information
	Manufacturer's Warranty:	The Kordz PRO HDMI 5V Power Injector is backed by their 2 Year Product Guarantee.
	*Terms & Conditions:	For further information regarding AWE's returns procedures please see chapters 7 & 8 in our Terms & Conditions
