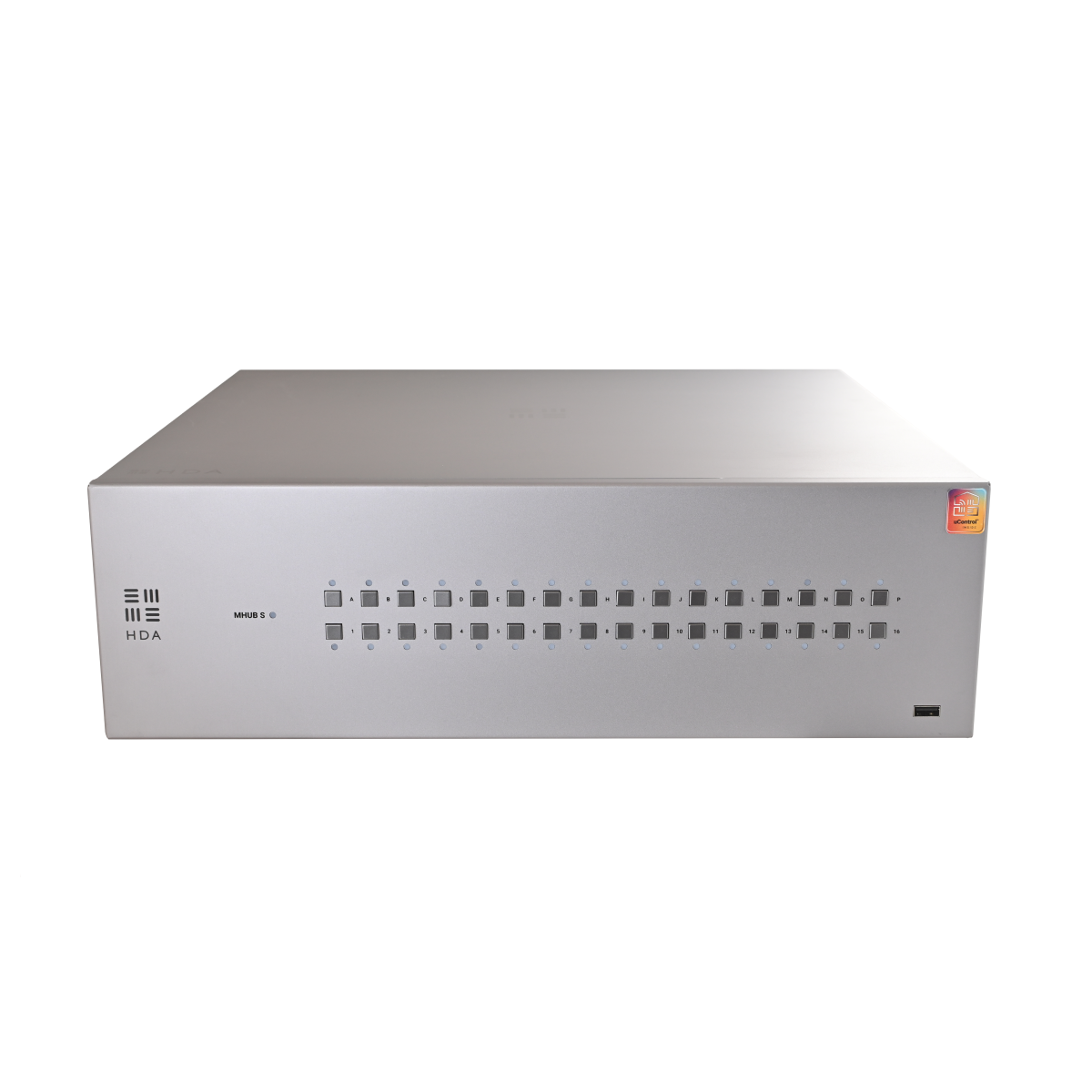

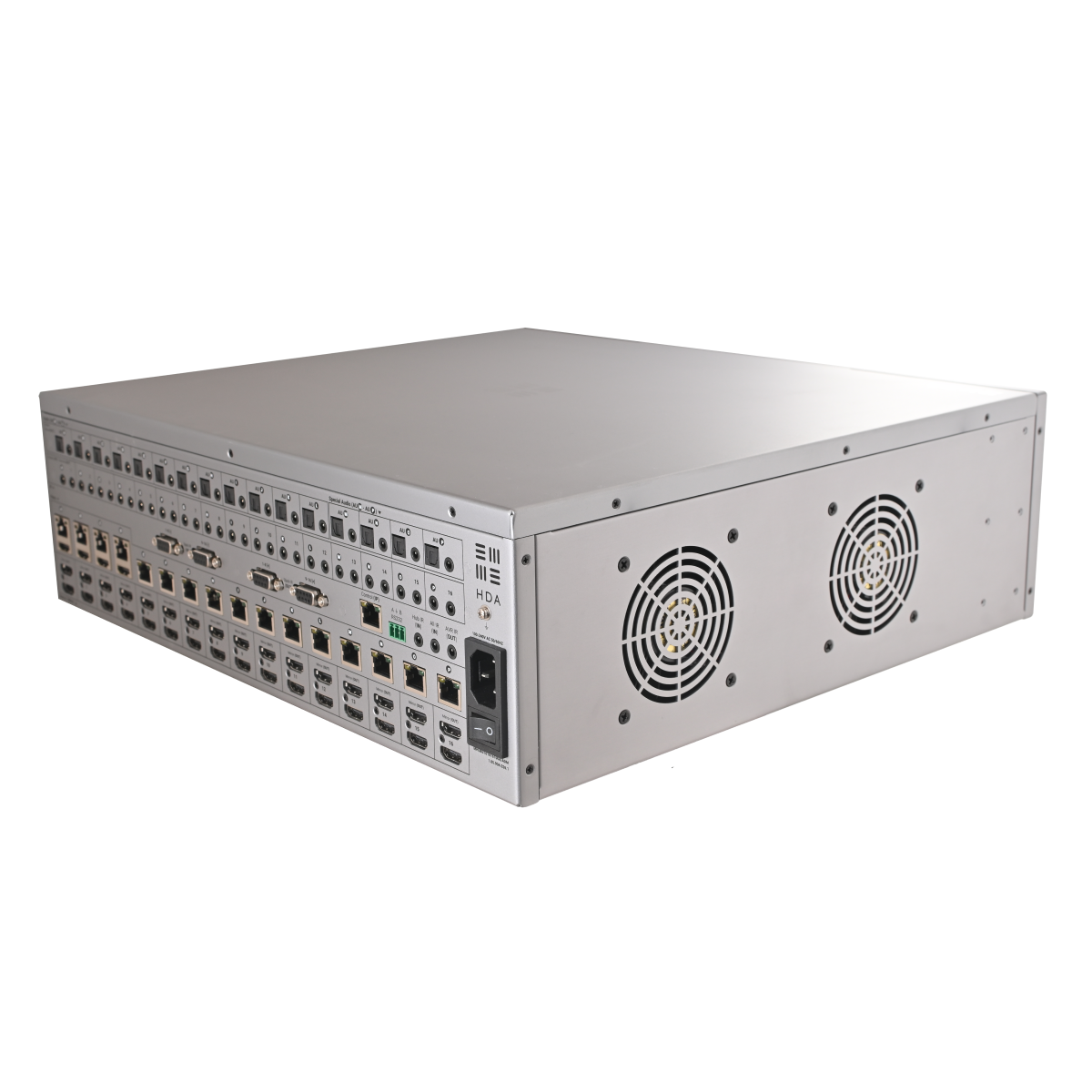

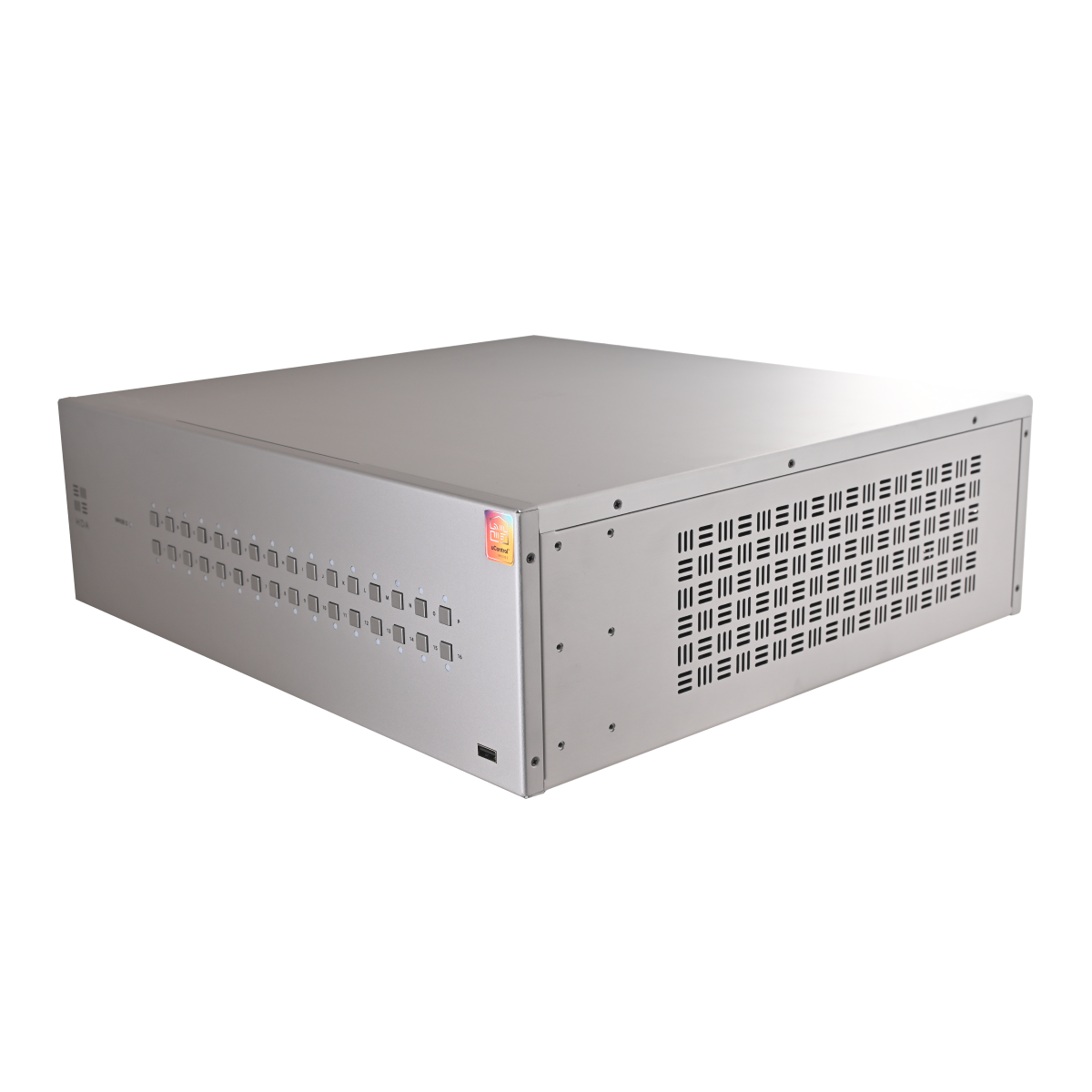

HDANYWHERE MHUB-S (16+16x16) 100A

Stock Code: MHUBS(16+16x16)100A

HDA MHUB-S (16+16x16) 100m

The everything-in-one box (stackable) system.

Be the master of impressive AV arrays throughout large homes and venues. MHUB S makes big AV projects up to 160+ zones efficient and easy to deploy.

Shun complexity with simplicity.

Time and effort is important, so burn less deploying MHUB S - the plug-and-play, everything-in-one-box solution. A compelling easier alternative to AV-over-IP that's simple enough for a junior tech to install.

Stack your way to success.

MHUB S standalone or stacked systems can be quickly installed and is simple to deploy. Projects involving 16/24/32/48/64 and 80+ screens are achieved by stacking 2, 3, 4, 5 and more MHUB S hubs together.

Features
Stackable to 160+ Zones (x10 MHUB S) with uControl
Auto or selectable downscaling on all outputs
Multi-channel digital audio support up to and including Dolby/Atmos and DTS:X
HDMI Output Mirrors (x2) for AVRs
Video source or zone audio extraction modes
analogue and Optical audio extraction on all outputs (not downmixed)
Line-level (Pre-Out) analogue volume control
Adjustable output gain from -12dBu to +12dBu in 1dB steps
Bi-directional IR
Source Stacking IR (Pass IR from one MHUB system to the next)
Expanded IO capability (API pass-through of IR and RS232 data)
CEC Display control
uControl, Apple Watch
, IP* & Amazon Alexa compatible
Remotely monitorable
Works with uControl™ Remote

  • Distribution to 160+ screens
  • 18G Video using TPC
  • Source, AVR, display & MHUB S control included
  • IR passback supported
  • Cloud connected
  • Form factor: 2U Rackmountable

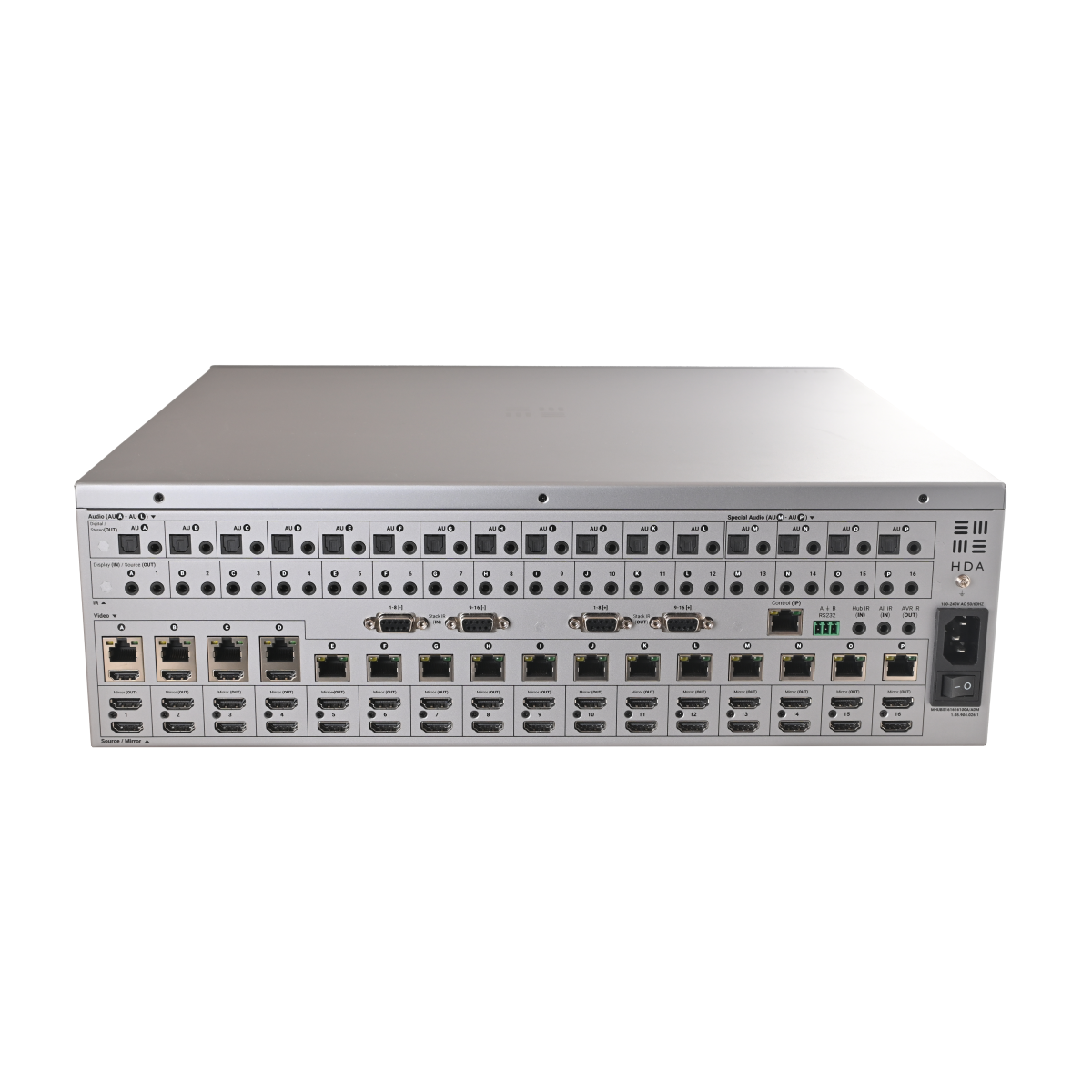

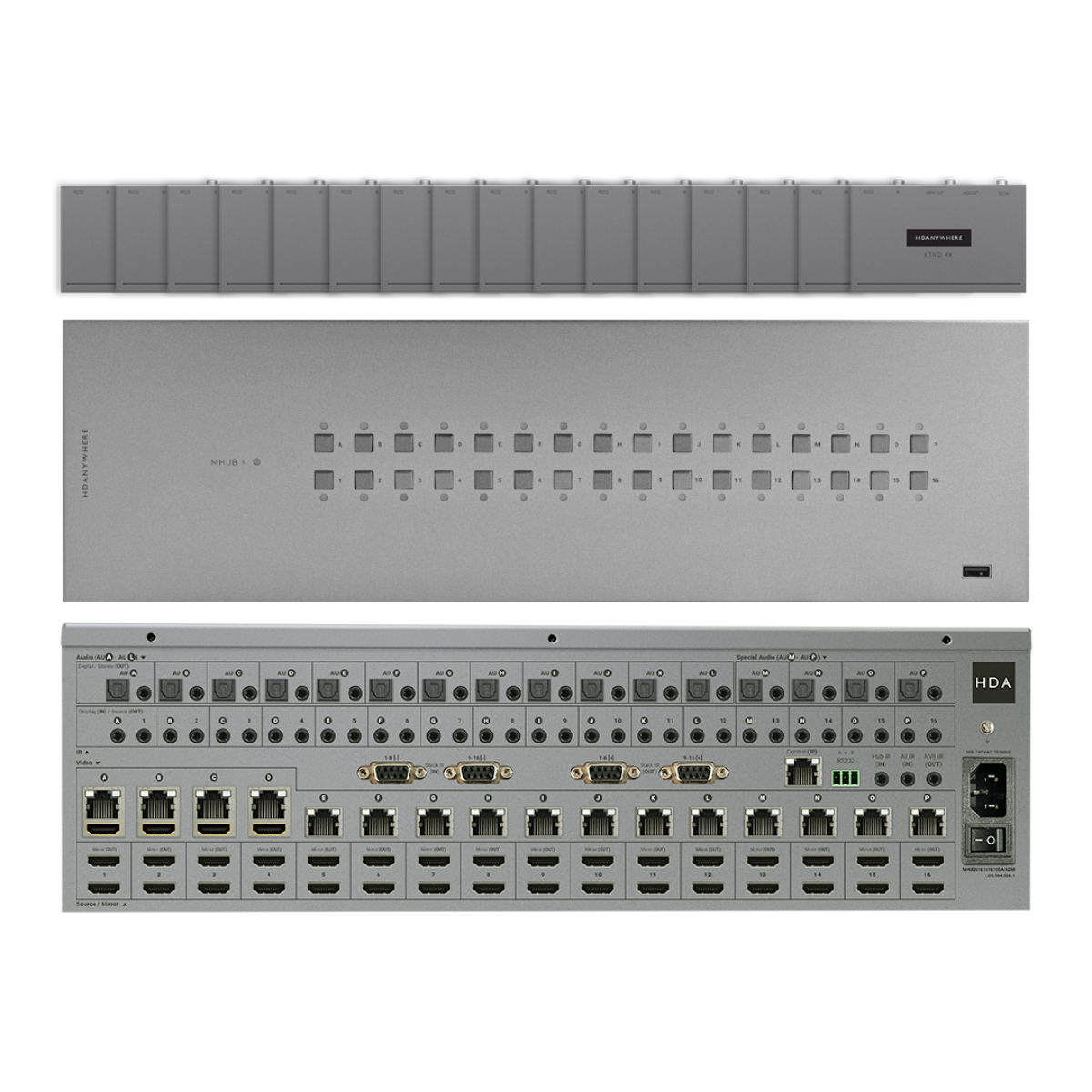

    Inputs / Mirrors / Outputs: (x8) HDMI Inputs / (x8) HDMI Input Mirrors
    (x8) Toslink Optical
    (x8) 3.5mm Stereo Jack / (x2) HDBaseT + HDMI Outputs
    (x6) HDBaseT Outputs
    Video bandwidth: HDMI backplane 594MHz clock / 18Gbps data
    HDBT 340MHz clock / 10.2Gbps data
    ESD protection: ± 8kV (air-gap discharge) ± 4kV (contact discharge)
    Hub control: Web GUI
    IR
    TCP/IP
    RS232
    App
    Alexa
    App control: Full control over sources, matrix hub & display functions.
    Device weight: Chassis: 2400g
    Receiver: 187g
    Package weight: 4100g
    Dimensions (W/D/H): Hub 440 / 362 / 88mm (without feet)
    RX 162.8 / 90 / 18mm
    Operating temperature: 32°F to 104°F (0°C to 40°C)
    Storage temperature: -4°F to 140°F (-20°C to 60°C)
    Relative humidity: 20~90 % RH (non-condensing)
    Power consumption: 101W (max) tbcW (standby)
    Warranty: 2/5-year guarantee (Cloud registration required)
    Name File Name
    Spec Sheet_ MHUB S (16+16x16) 100A_100ADM Spec Sheet_ MHUB S (16+16x16) 100A_100ADM.pdf
    User Manual_ MHUB S (8+8x8 _ 16+16x16) 100A_100ADM User Manual_ MHUB S (8+8x8 _ 16+16x16) 100A_100ADM.pdf
