HDA XTND2KP30, 2K 30m Extender (2.50.708)

Stock Code: XTND2KP30

HDA XTND2KP30, 2K 30m Extender

(2.50.708)

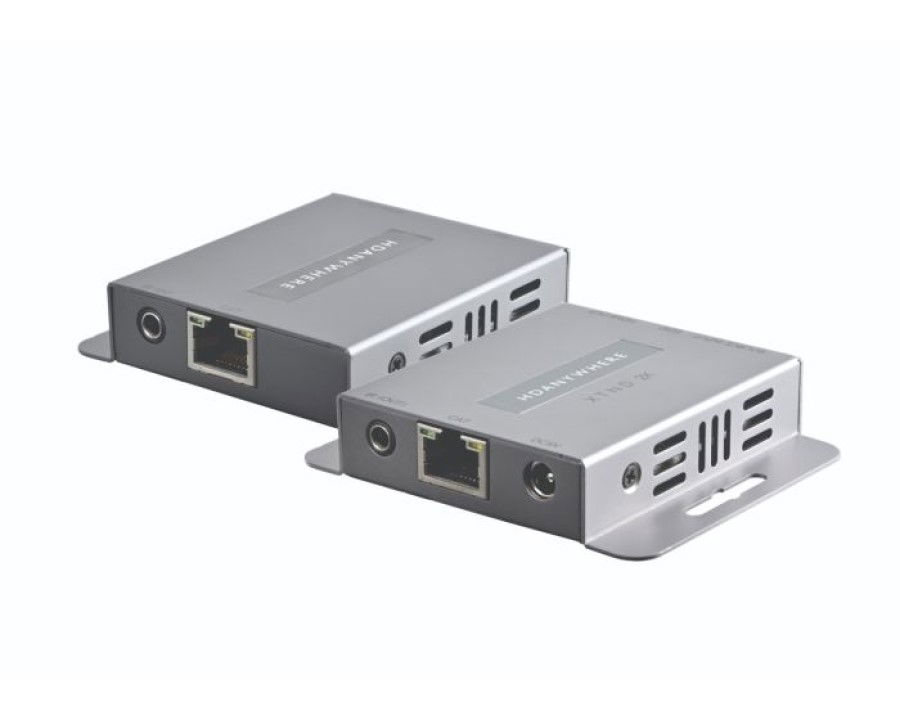

The XTND 2K (30) is an ultra-compact HDMI extender set that delivers Full HD 1080p 60Hz content uncompressed up to 30 metres over a single twisted pair Cat cable. Designed for professional AV installations, it includes a return IR channel, allowing control of the transmitter source from the receiver location. The HDMI loop-out enables connection to a local display. This plug-and-play extender is perfect for residential and commercial setups, ensuring reliable transmission with minimal signal degradation.

  • Supports up to 1080p 60Hz over 30m
  • Uncompressed HDMI TMDS signal transmission
  • Return IR control (RX to TX) for remote operation
  • HDMI loop port on TX for local display connection
  • Complete install package with IR cabling & mounting kit
  • Includes multi-territory power adapters (UK/EU/AU/US)
  • Specification
    Form Factor: Slim aluminium enclosure with mounting wings

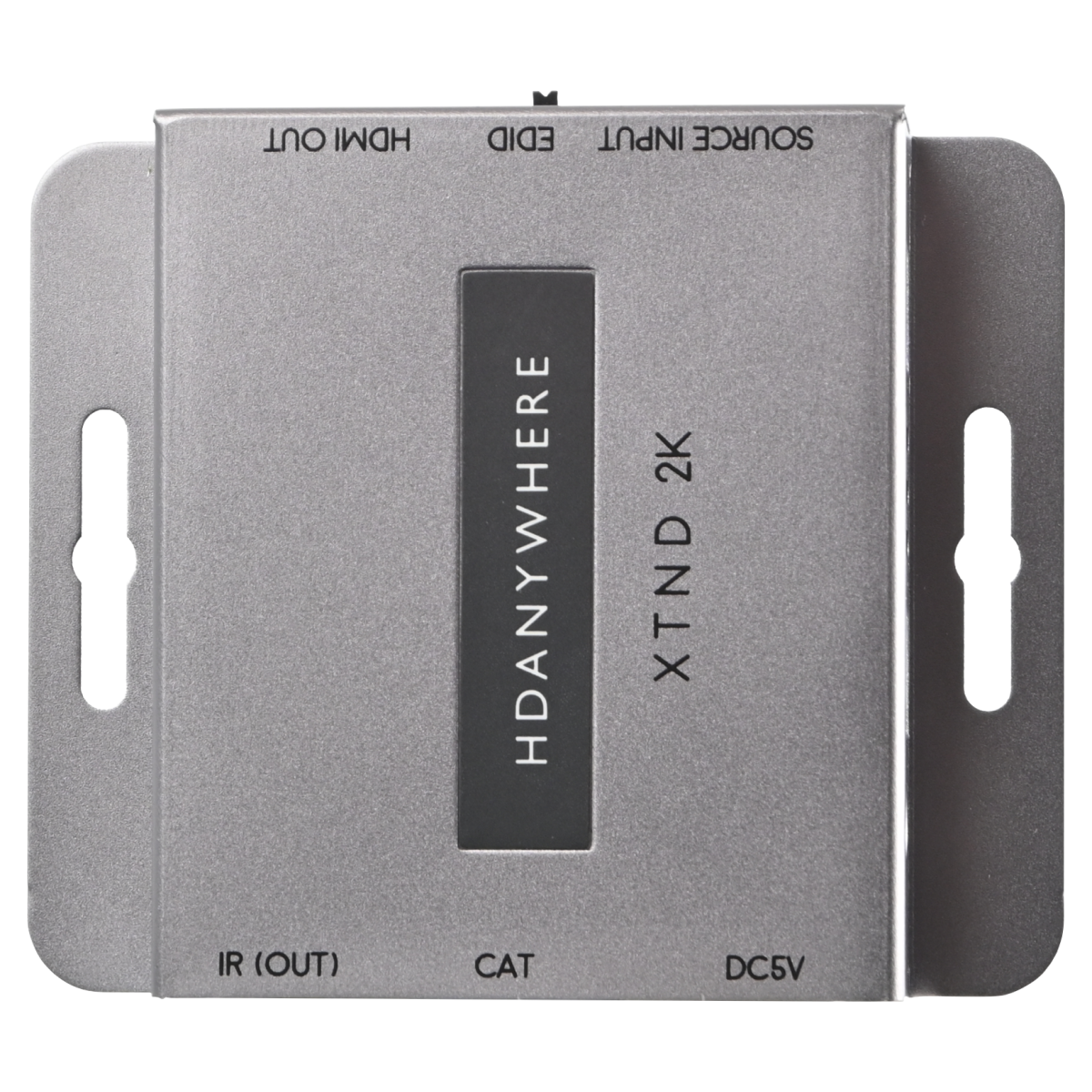

    Inputs/Outputs: TX: HDMI in, RJ45 out, IR 3.5mm jack (out = from RX)

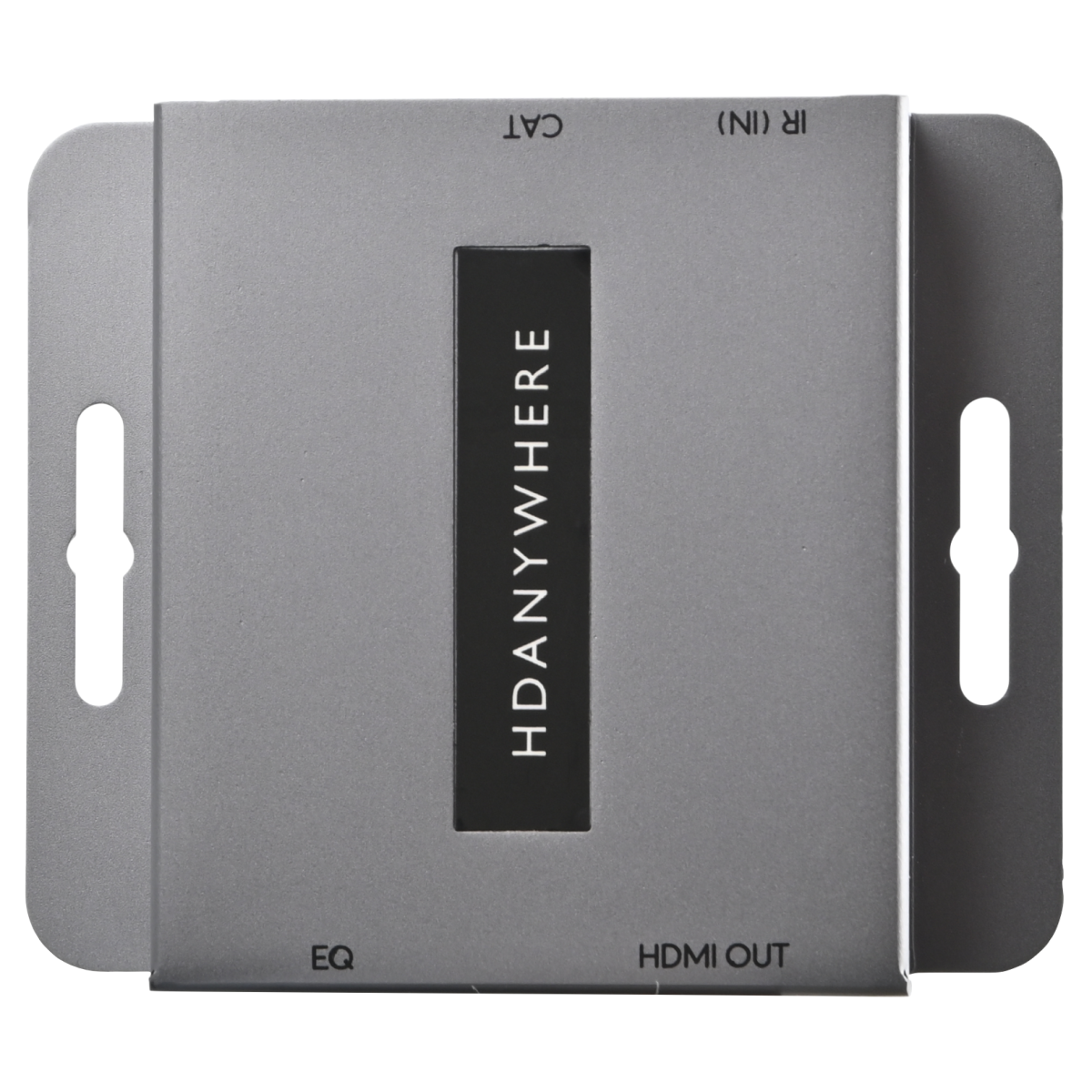

    RX: RJ45 in, HDMI out, IR 3.5mm jack (in = to TX)
    Video Bandwidth: 165MHz / 6.75Gbps
    ESD Protection: ±8kV (air-gap), ±4kV (contact)
    Power: 5V/1A DC, CE/FCC/UL certified
    Operating Temp: 0°C to 40°C
    Power Consumption: 9.5W (max)
    Dimensions: 78 x 67 x 16mm (TX & RX)
    Weight: Device: 56g
    Package: 500g
    Dimensions: 12mm thin, ergonomic design
    Warranty
    Manufacturer's Warranty*: 2 Years
    Faulty From New*:
    (Within 28 Days Of Purchase)
    Return to AWE for assessment.
    Please complete this online Returns Form
    *Terms & Conditions: For further information regarding AWE's returns procedures please see chapters 7 & 8 in our Terms & Conditions
    Name File Name
    Short Range Adjust Configuration Short Range Adjust Configuration.pdf
    XTND 2K 30 Datasheet XTND 2K 30 Datasheet.pdf
    XTND 2K 30 Manual XTND 2K 30 Manual.pdf
