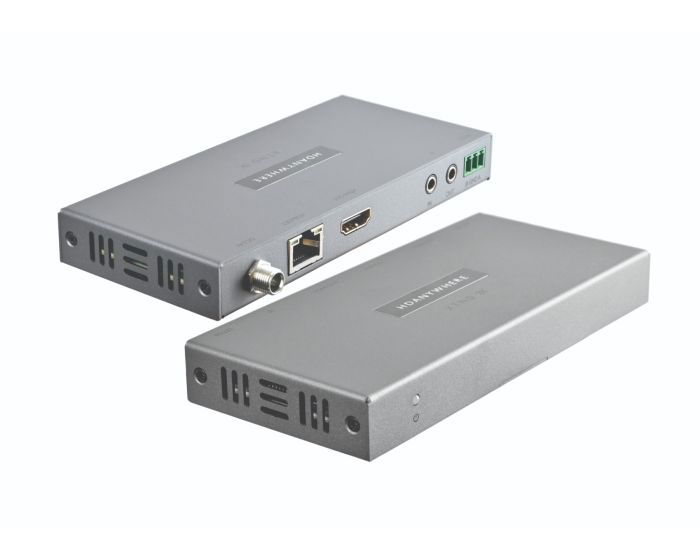

HDA XTND2K150 2K HDMI Extender up to 150m 1080p

The XTND 2K (150) is an advanced HDMI extender designed for large-scale installations requiring long-distance signal transmission. Powered by HDBaseT technology, it ensures a stable and uncompressed 1080p 60Hz signal up to 150 metres over a single Cat cable.

This model offers bi-directional IR & RS232 control, allowing full communication between the source and display devices. Bi-directional PoH (Power over HDBaseT) enables power delivery from either the TX or RX, making installation more flexible.

Ideal for commercial AV setups, conference rooms and digital signage, the XTND 2K (150) provides a highly reliable, interference-free HDMI extension solution.

1080p 60Hz transmission up to 150m

HDBaseT technology for long-distance stability

Bi-directional IR & RS232 control

Bi-directional PoH – power from either TX or RX

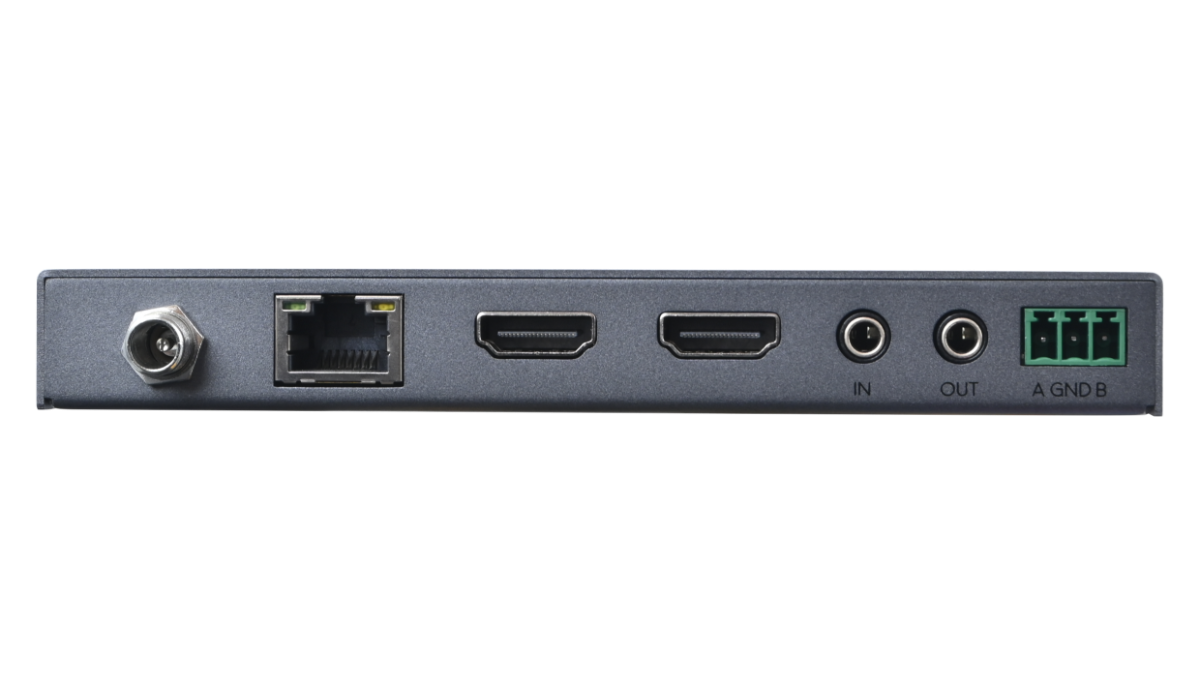

HDMI loop-out on TX for local display connection

Complete install package with IR cabling & mounting kit

Includes multi-territory power adapters (UK/EU/AU/US)

General
	Form Factor:	Lightweight aluminium enclosure

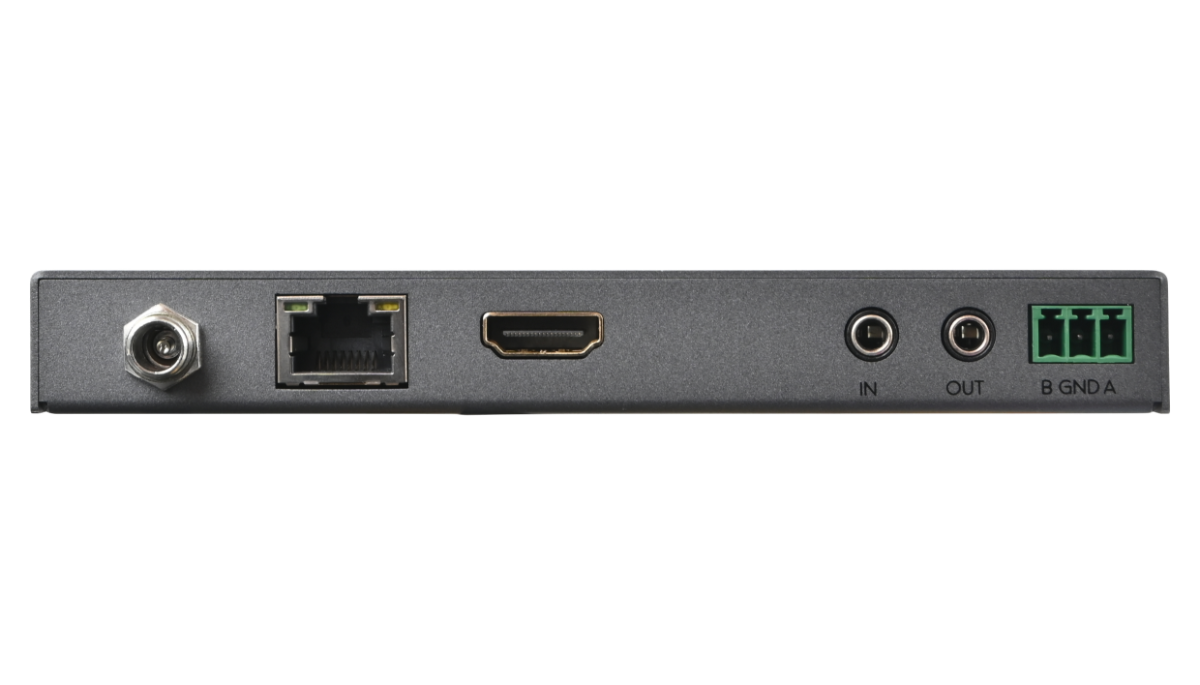

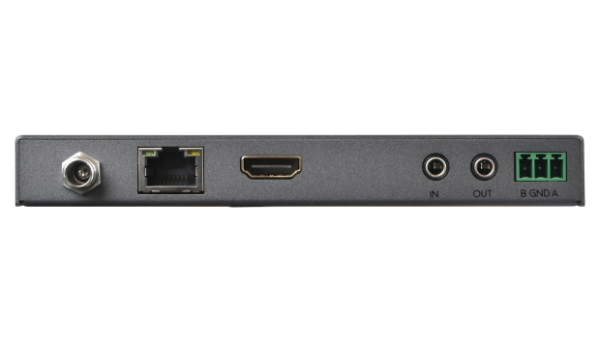

	Inputs/Outputs:	TX: HDMI in, RJ45 HDBaseT out, RS232, 2x IR 3.5mm jacks (in = to RX / out = from RX) RX: RJ45 HDBaseT in, HDMI out, RS232, 2x IR 3.5mm jacks (in = to TX / out = from TX)
	Video Bandwidth:	4Gbps
	Transmission Technology:	HDBaseT
	Control:	Bi-directional IR & RS232, HDMI-CEC pass-through
	ESD Protection:	±8kV (air-gap), ±4kV (contact)
	Power:	24V/1A DC, CE/FCC/UL certified
	Operating Temperature:	0°C to 40°C
	Power consumption:	9.5W (max)
	Dimensions:	140 x 65 x 17mm (TX & RX)
	Weight:	Device: 125g Package: 1100g
Warranty Info
	Manufacturer's Warranty*:	2 Years
	Faulty From New*: (Within 28 Days Of Purchase)	Return to AWE for assessment. Please complete this online Returns Form
	*Terms & Conditions:	For further information regarding AWE's returns procedures please see chapters 7 & 8 in our Terms & Conditions

Name	File Name
XTND 2K (150) - Datasheet	XTND 2K (150) - Datasheet.pdf
XTND 2K 150 Manual	XTND 2K 150 Manual.pdf
