Stock Code: XTND4K100eARC+USB

Login to purchase
Need more information?

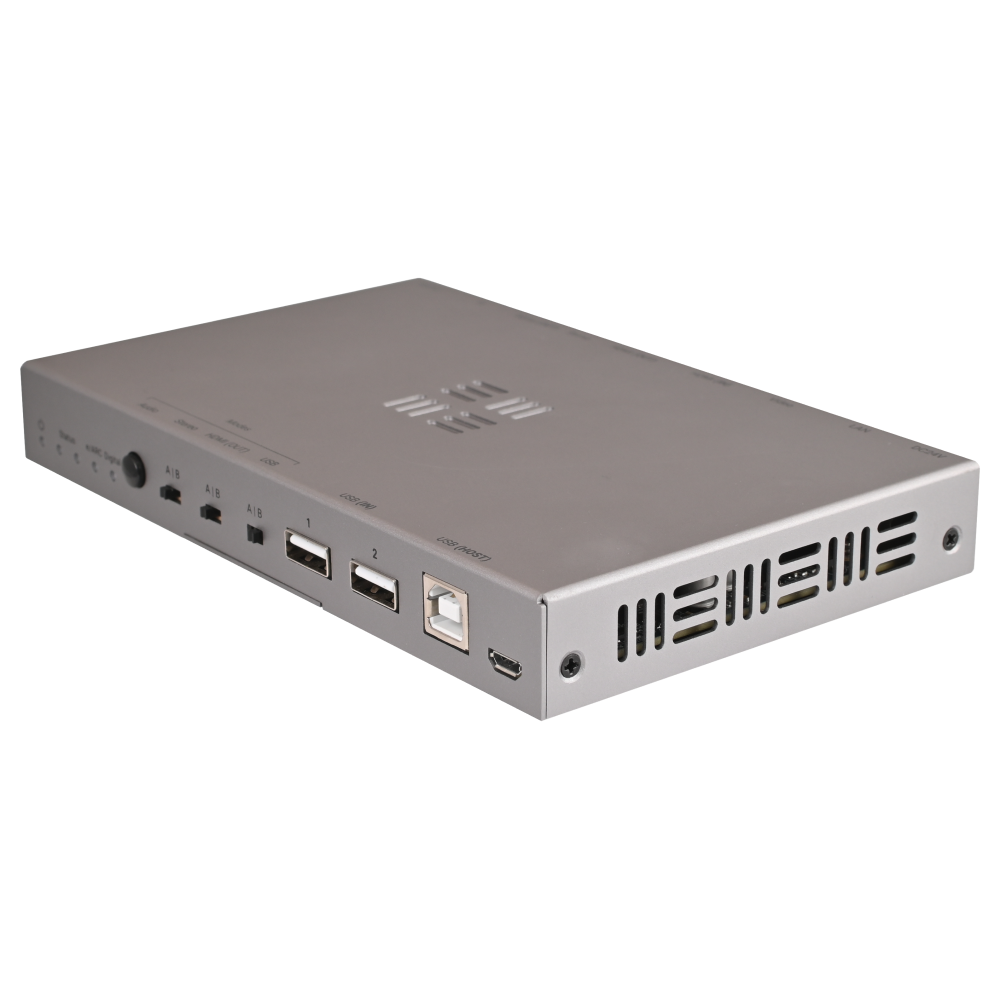

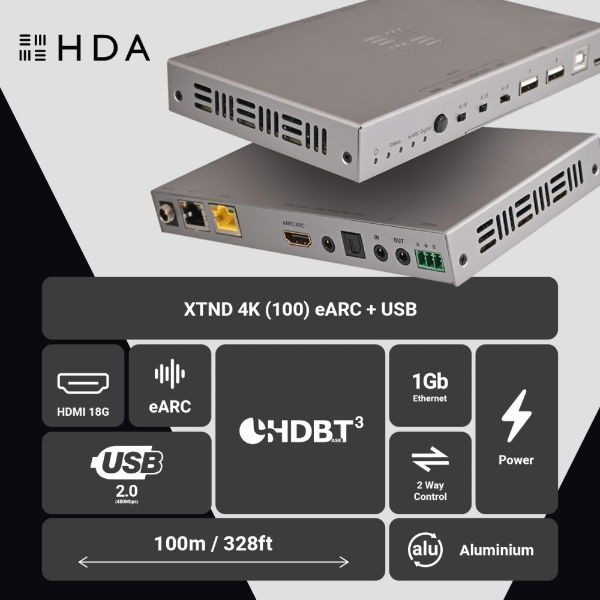

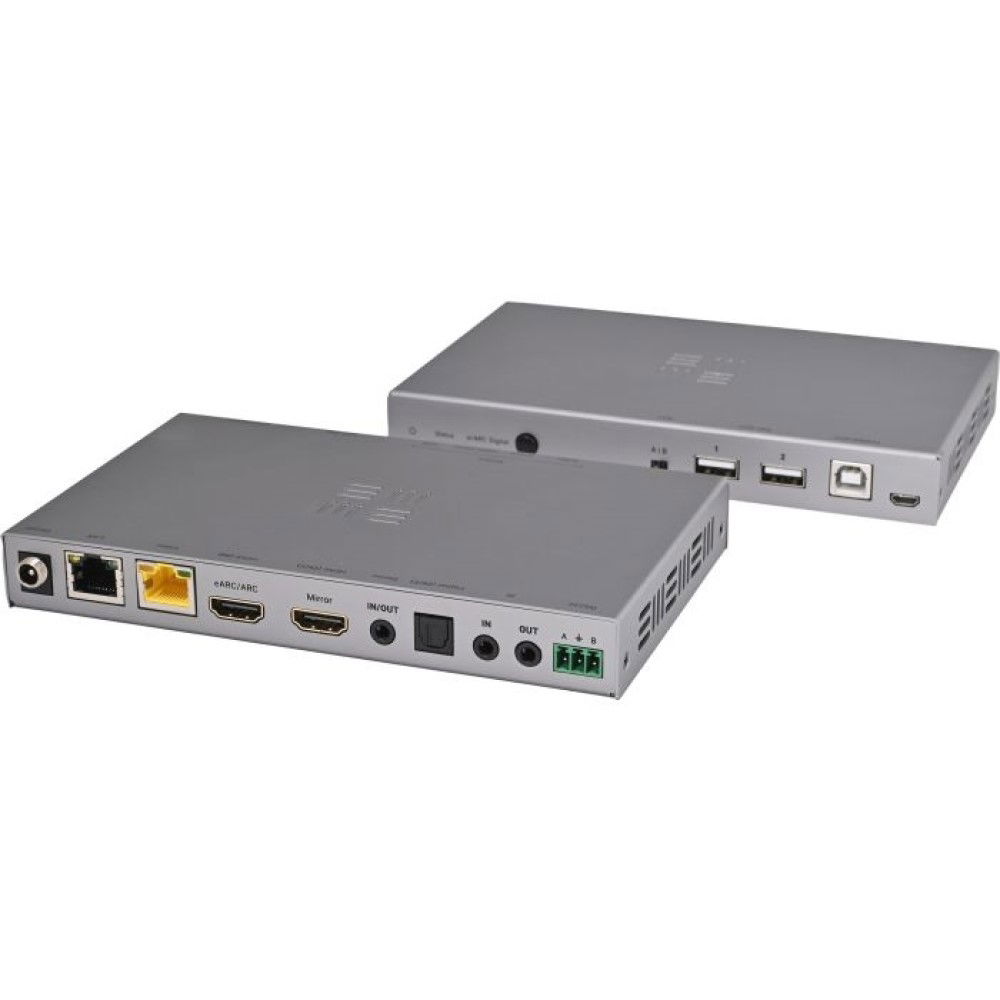

HDA XTND4K100eARC+USB. 100m Extender inc eARC and USB

The Ultimate Extender Kit for Long-Distance, High-Performance Connectivity. The XTND 4K (100) eARC + USB from HDA is the pinnacle of TX + RX HDMI extender kits. A true all-in-one AV connectivity solution with uncompressed 4K video, USB, Ethernet, eARC, audio and control over a single Cat6A cable – up to 100 metres.

  • Supports 18Gbps data rate for resolutions up to 4K60Hz (YUV4:4:4) with HDR, including Dolby Vision®.
  • Send and receive IR, RS232 and USB signals to control connected devices from either side of the setup.
  • Selectable from either TX or RX for connecting USB 2.0 devices in either direction.
  • Only one side needs a power source, reducing setup complexity.
  • Supports connectivity up to 100 metres over Cat6A

    • Technical Information
    Supported Resolutions: Up to 4K60Hz (YUV4:4:4), 4K30Hz, 1080p120Hz, and 1080p3D.
    Audio Formats: Dolby Atmos
    DTS
    Dolby Digital
    DTS 5.1
    Dolby Digital+
    Dolby TrueHD
    DTS-HD Master Audio
    Inputs: HDMI (TX), Stereo 3.5mm (TX), Optical audio (RX), 2 x USB A (2.0).
    Outputs: 1 xHDMI (RX), 1 x HDMI (Mirror) - TX, USB B (2.0), Stereo 3.5mm (RX), Optical audio (TX).
    Power Supply: DC 24V/1A (US/EU standards, CE/FCC/UL certified).
    Operating Temperature: 0°C to 40°C
    (32°F to 104°F).
    Dimensions: 73.5mm (W) x 60.7mm (D) x 17mm (H)
    2.9" x 2.4" x 0.7".
    Weight: 122g
    4.3 oz
    Warranty
    Manufacturer's Warranty*: 2 Years
    Faulty From New*:
    (Within 28 Days Of Purchase)    		 Return to AWE for assessment.
    Please complete this online Returns Form
    *Terms & Conditions: For further information regarding AWE's returns procedures please see chapters 7 & 8 in our Terms & Conditions
    Name File Name
    XTND 4K (100) eARC and USB User Guide XTND 4K (100) eARC and USB User Guide.pdf
    XTND 4K (100) with eARC _ USB - Datasheet XTND 4K (100) with eARC _ USB - Datasheet.pdf
