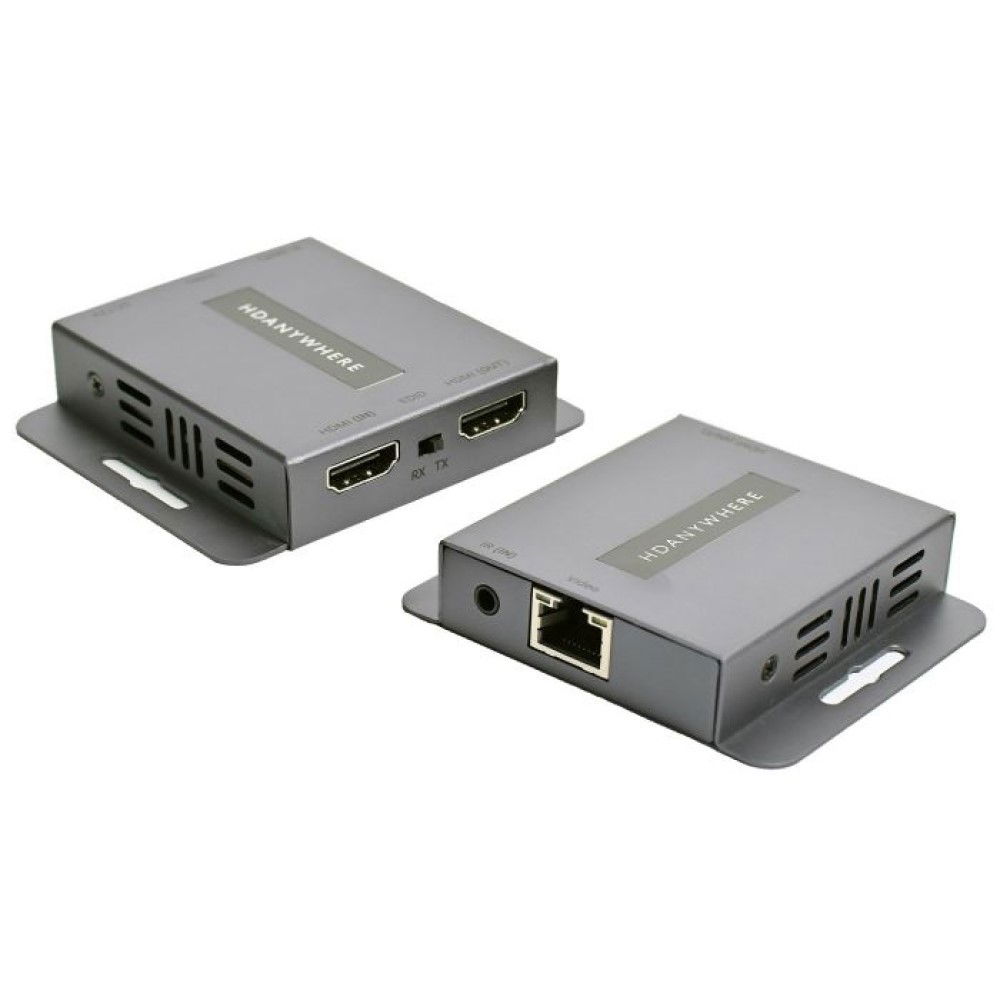

HDA XTND2K60 2K 60m Extender

Stock Code: XTND2K60

HDA XTND2K60 2K 60m Extender<./h2>

The XTND 2K (60) extends Full HD 1080p 60Hz content uncompressed over 60 metres using a single Cat cable. The return IR channel allows remote control of the transmitter source, while the HDMI loop-out supports a second local display or daisy-chaining multiple extenders. PoE power simplifies installation by powering the receiver through the Cat cable, reducing the need for additional power supplies at the display location. Ideal for professional AV setups requiring long-range transmission without compromise.

  • 1080p 60Hz transmission up to 60m
  • Uncompressed HDMI TMDS signal transmission
  • Return IR control (RX to TX) for remote operation
  • PoE-powered receiver – no additional PSU needed at RX
  • HDMI loop-out on TX for a second display
  • Complete install package with IR cabling & mounting kit
  • Includes multi-territory power adapters (UK/EU/AU/US)
  • General
    Form Factor: Slim aluminium enclosure with mounting wings
    Inputs/Outputs: TX: HDMI in, RJ45 out, IR 3.5mm jack (out = from RX)
    RX: RJ45 in, HDMI out, IR 3.5mm jack (in = to TX)
    Video Bandwidth: 10.2Gbps
    ESD Protection: ±8kV (air-gap), ±4kV (contact)
    Power: 12V/1A DC, CE/FCC/UL certified
    Operating Temperature: 0°C to 40°C
    Power consumption: 2.73W (max)
    Dimensions: 78 x 67 x 16mm (TX & RX)
    Weight: Device: 56g | Package: 700g
    Warranty Info
    Manufacturer's Warranty*: 2 Years
    Faulty From New*:
    (Within 28 Days Of Purchase)
    Return to AWE for assessment.
    Please complete this online Returns Form
    *Terms & Conditions: For further information regarding AWE's returns procedures please see chapters 7 & 8 in our Terms & Conditions
    Name File Name
    XTND2K60 Datasheet XTND2K60 Datasheet.pdf
    XTND2K60 Instruction Manual XTND2K60 Instruction Manual.pdf
