Bowers & Wilkins CWM663 600 Series 6" In Wall Speaker (FP29661) Pair

Stock Code: CWM663(P)

CWM663: In-Wall Performance Series Pair

Performance Series
For situations when you want near-invisible loudspeakers but refuse to compromise on sound quality. CI 800 Series Diamond and CI 700 Series models feature matching performance levels to their in-room counterparts in the 800 Series Diamond and 700 Series.

See nothing, hear everything

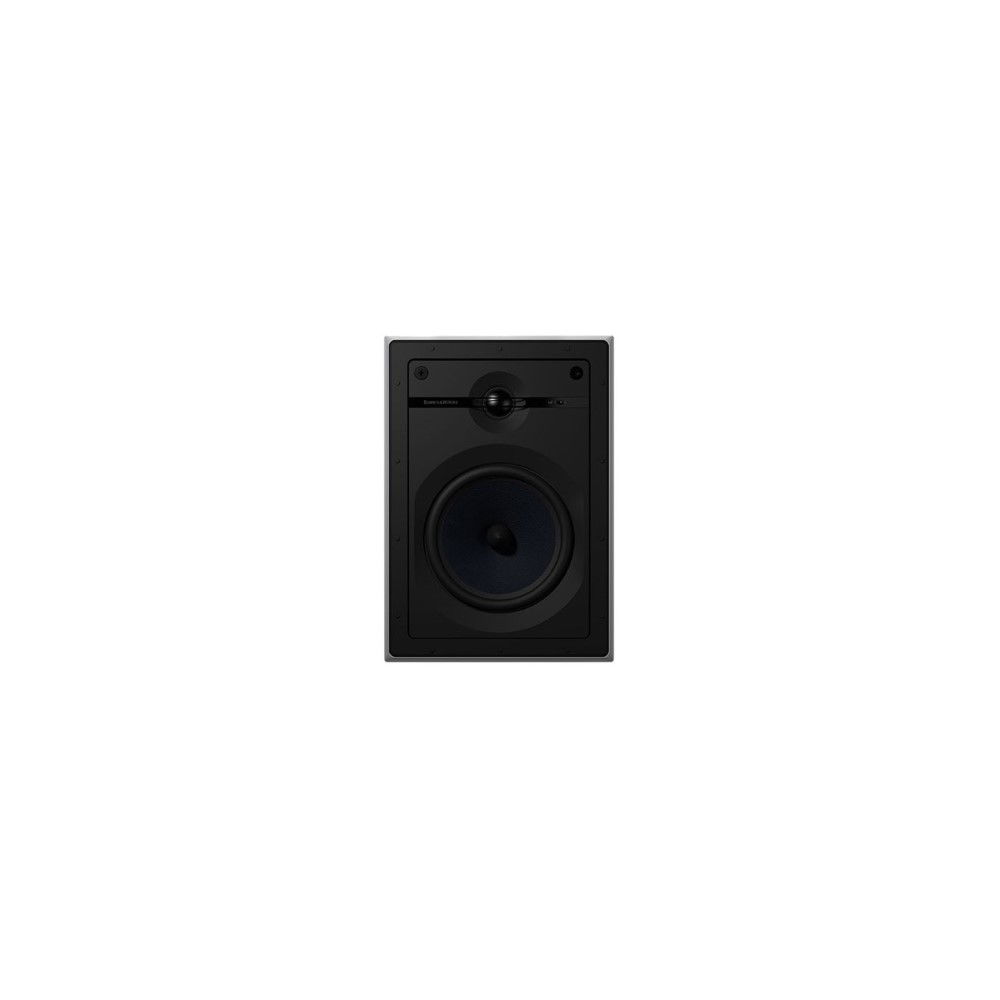

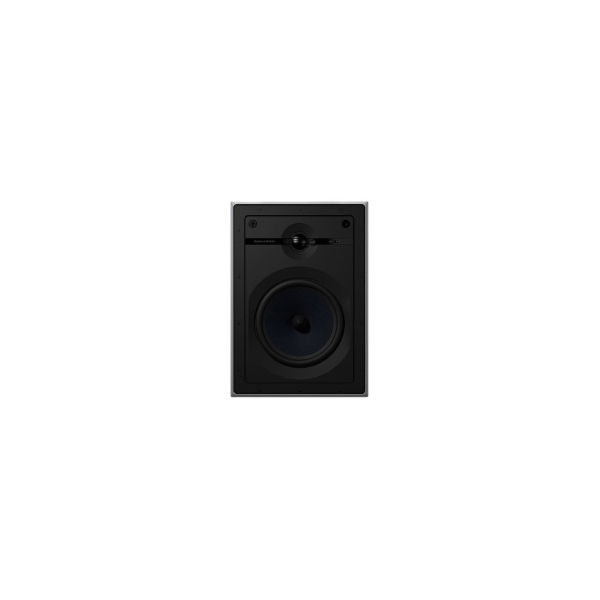

The CWM663 features a blue Aramid Fibre bass/midrange driver housed in a die-cast chassis which provides the extra rigidity to provide a cleaner, faster bass. Its aluminium tweeter also incorporates a Nautilus™ tube to absorb unwanted sonic radiation. The CWM663 also utilises a threeposition high frequency switch to fine tune the sound. The speaker is incredibly easy to install incorporating QuickDogs™ and plug-and-play functionality.

  • High resolution, low distortion drive technology
  • Adjustable tweeter output
  • QuickDogs™ and plug-and-play functionality
  • Description: 2-way in-wall system
    Drive Units: 1x ø25mm (1in) Nautilus™ tube loaded aluminium dome tweeter
    1x ø150mm (6in) blue Aramid Fibre cone bass/midrange
    Frequency Range (-6dB): 45Hz – 50kHz
    Maximum Amplifier Power: 25 - 150W
    Sensitivity: 88dB
    Nominal impedance: 8Ω (minimum 4.5Ω)
    Frame Height: 315mm
    Frame Width: 221mm
    Cut-out height: 279mm
    Cut-out width: 183mm
    Depth behind surface: 95mm
    Protrusion: 4mm
    Pre-Mounting Kit: PMKW6
    Back Box: BB 6W
    Manufacturer's Warranty*: 5 years
    Faulty From New*: (Within 14 Days Of Purchase): Return to AWE for assessment.
    Please complete this online Returns Form
    After 14 Days Of Purchase*:
    (Within The Manufacturer's Warranty):
    Return to AWE for assessment.
    Please complete this online Form
    Post-Warranty Service and Repair: Please contact an authorised service centre: Sontec or Sound System Technology
    *Terms & Conditions: For further information regarding AWE's returns procedures, please see chapters 7 & 8 in our Terms & Conditions
    Name File Name
    CWM663 Dimensions - PDF and DWG CWM663 Dimensions - PDF and DWG.zip
    CWM663 Drawing CWM663 Drawing.pdf
    CWM663 Information Sheet CWM663 Information Sheet.pdf
    CWM6xx Manual CWM6xx Manual.pdf
