Bowers & Wilkins CCM663SR 2 Way Dual Channel In Ceiling Speaker (FP29602) Single Unit

Stock Code: CCM663SR

CCM663SR: Performance Series

Our Performance Series delivers fantastic sound in an incredibly discreet package. These loudspeakers are engineered by the same team who creates the loudspeakers used in some of the world’s most advanced recording studios.

See nothing, hear everything

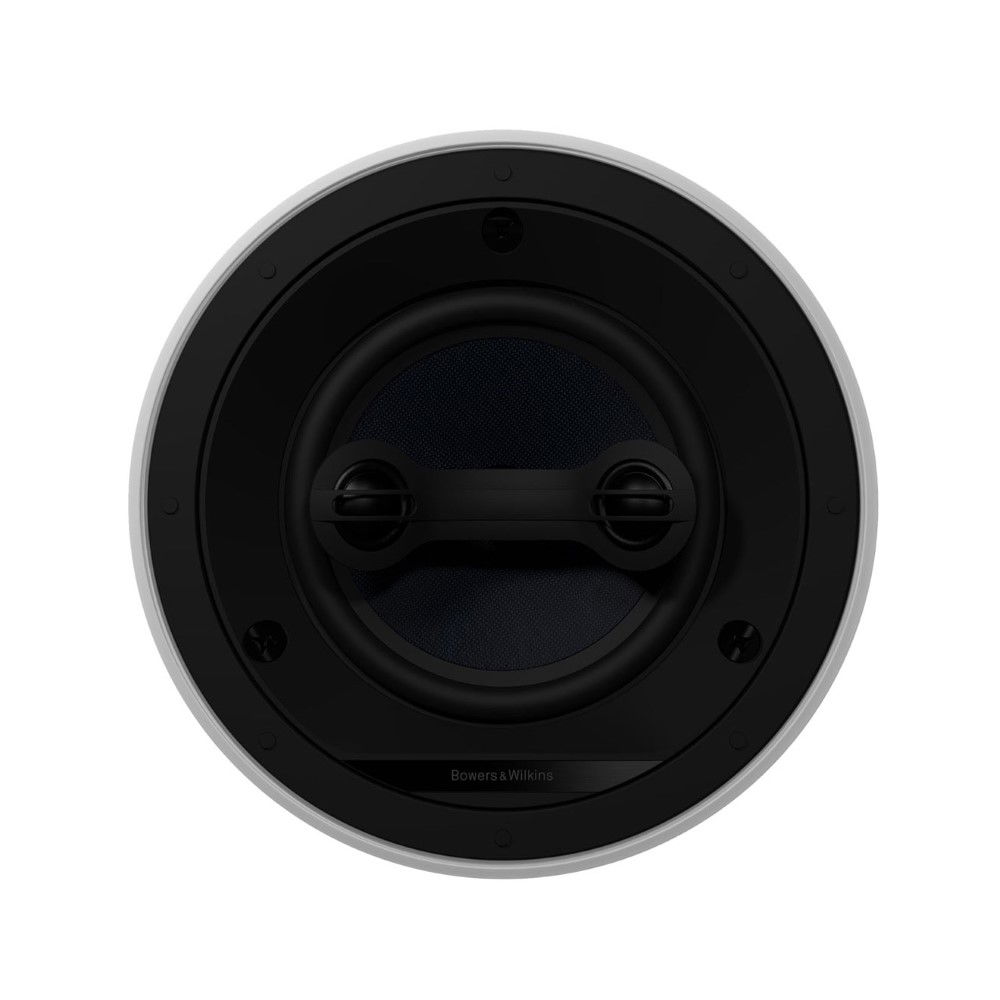

The combination of convenience and performance that is a feature of the entire custom installation range is no better demonstrated than by the CCM663SR ceiling speaker. It marries a woven Aramid Fibre coned twin voice-coil 150mm (6in) bass/midrange driver with an offset array of two 25mm (1in) soft dome tweeters. Thanks to its highly accurate and natural sound, Aramid Fibre features on our most advanced high performance hi-fi speakers and it brings the same qualities to the CCM663SR. The twin voice coils and tweeters combine the stereo signal to enable the use of just one ceiling speaker in an installation zone without the loss of one audio channel. The CCM663SR also includes a two-position stereo/surround switch to instantly make the speaker very suitable to be used as a surround channel

  • Stereo sound from a single speaker
  • Ideal for smaller rooms
  • High resolution drive technologies
  • Description: 2-way dual channel in-ceiling system
    Drive Units: 2x ø20mm (1in) soft dome tweeter
    1x ø150mm (6in) blue Aramid Fibre cone bass/midrange
    Frequency Range (-6dB): 48Hz – 30kHz
    Sensitivity: 89 dB (both channels driven)
    Nominal Impedance: 8Ω
    Power Handling: 25 - 80W per channel
    Frame Diameter: 240mm
    Cut-out Diameter: 202mm
    Depth behind surface: 133mm
    Protrusion: 4mm
    Pre-Mounting Kit: PMKC6
    Back Box: BB 6C
    Manufacturer's Warranty*: 5 years
    Faulty From New*: (Within 14 Days Of Purchase): Return to AWE for assessment.
    Please complete this online Returns Form
    After 14 Days Of Purchase*:
    (Within The Manufacturer's Warranty):
    Return to AWE for assessment.
    Please complete this online Form
    Post-Warranty Service and Repair: Please contact an authorised service centre: Sontec or Sound System Technology
    *Terms & Conditions: For further information regarding AWE's returns procedures, please see chapters 7 & 8 in our Terms & Conditions
    Name File Name
    CCM663SR Dimensions - PDF and DWG CCM663SR Dimensions - PDF and DWG.zip
    CCM663SR Information Sheet_0 CCM663SR Information Sheet_0.pdf
    CCM6xx Manual_5 CCM6xx Manual_5.pdf
