Bowers & Wilkins CCM663RD 600 Series 6" In Ceiling Speaker (FP37915) Pair

Stock Code: CCM663RD(P)

CCM663RD: Performance Series Pair

Our Performance Series delivers fantastic sound in an incredibly discreet package. These loudspeakers are engineered by the same team who creates the loudspeakers used in some of the world’s most advanced recording studios.

See nothing, hear everything

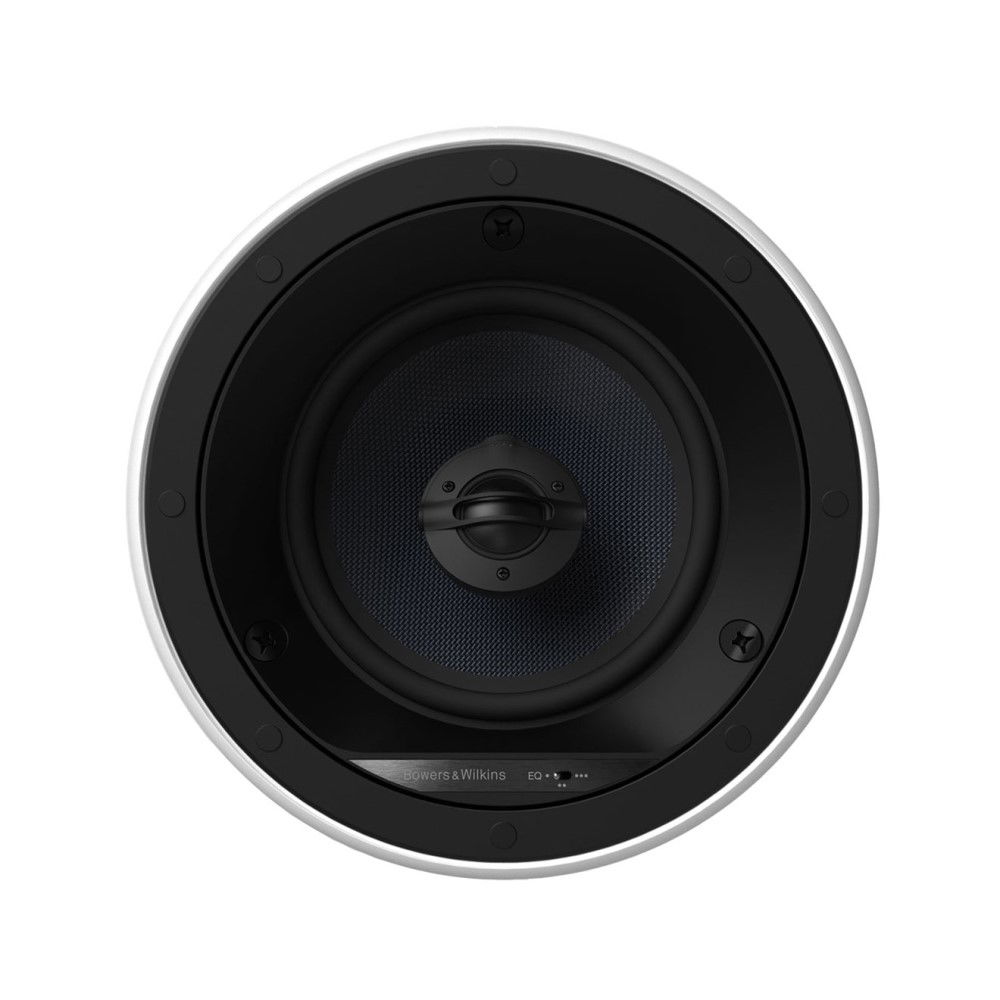

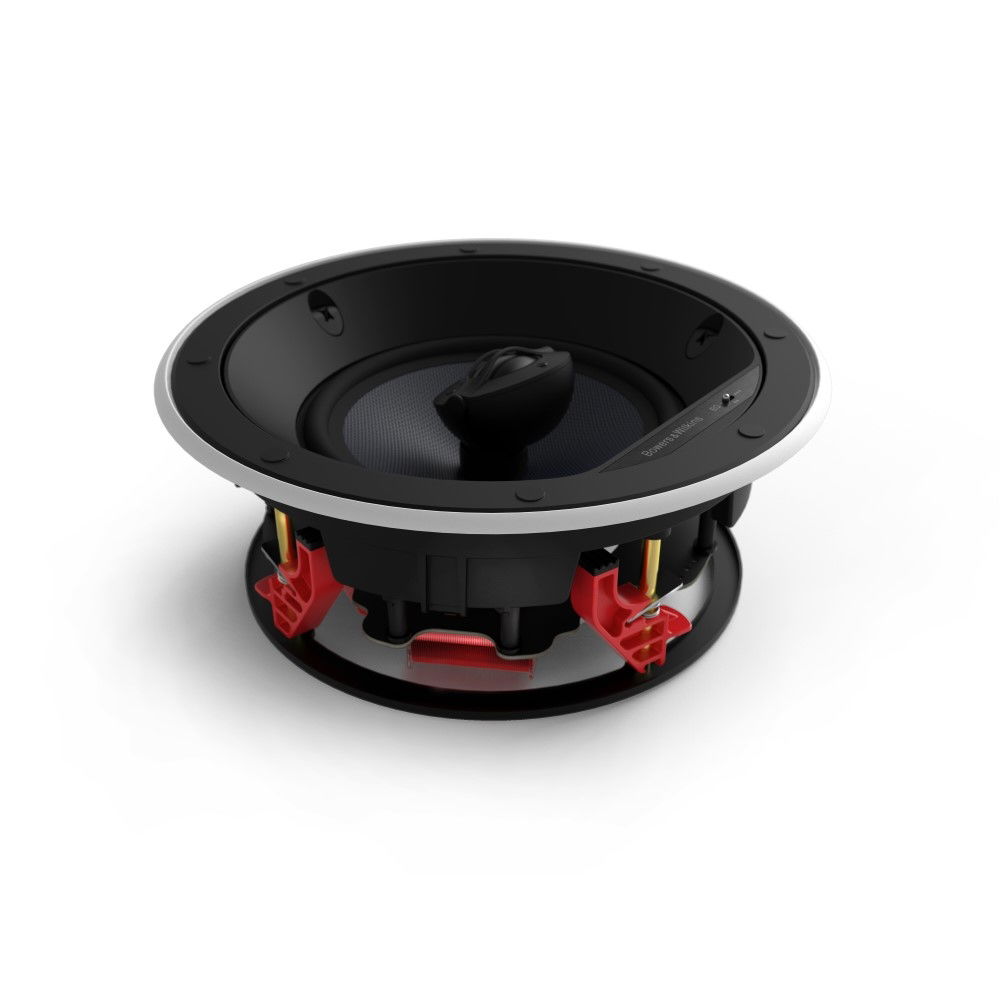

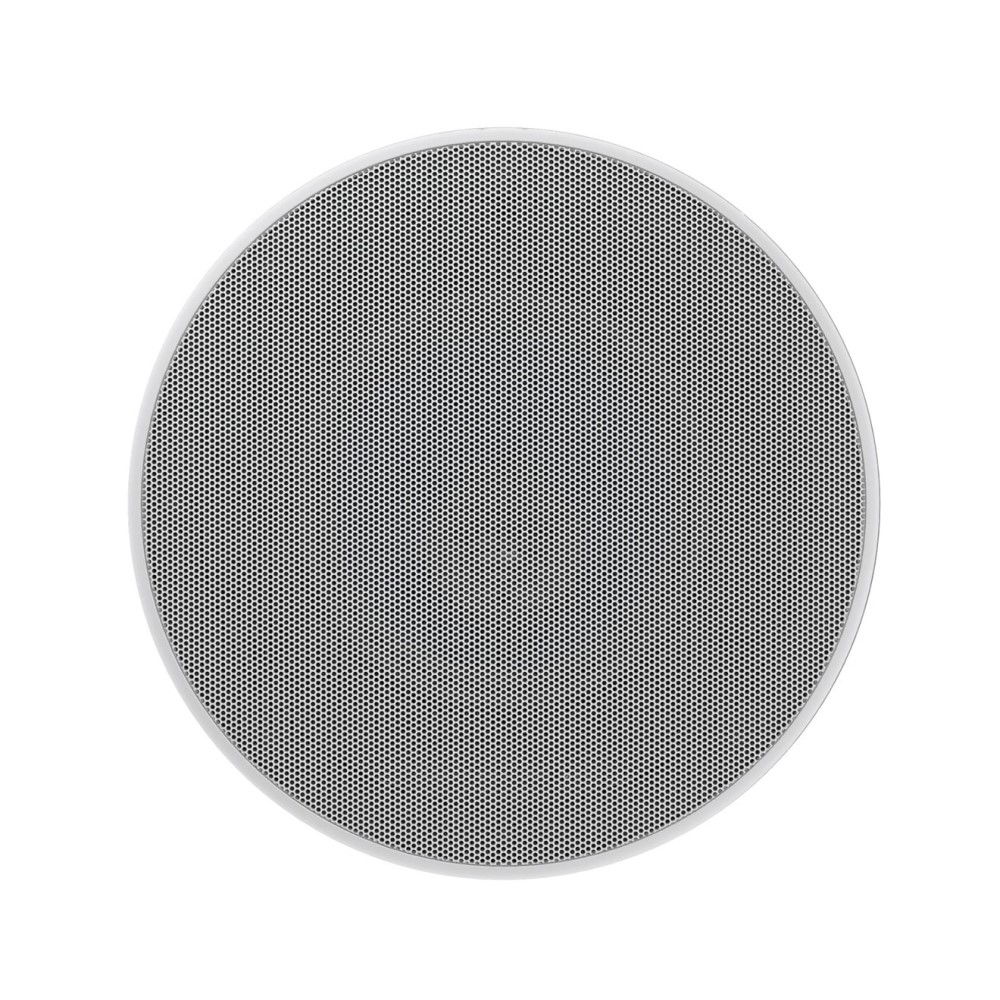

RD stands for Reduced Depth – so this speaker will fit into tighter spaces than the standard CCM663. A shallower cone and a redesign of the easy-fit QuickDogs™ frame reduce depth to a more usable 92mm, while retaining everything that makes the CCM663 such a great in-ceiling speaker. The familiar, yet discreet, dark blue Kevlar® cone of the bass/midrange driver delivers a stunningly clean, detailed response. This, combined with the pivoting aluminium dome tweeter for adjustable off-axis treble response and three-position EQ, make this one of the most versatile custom speakers around. If preferred, the supplied round grille can be replaced with an optional, square CCM663 grille.

  • Reduced depth
  • Adjustable EQ and tweeter directivity to optimise sound
  • High resolution drive technologies
  • Description: 2-way in-ceiling system
    Drive Units: 1x Ø25mm (1 in) Nautilus™ swirl loaded aluminium dome tweeter
    1x Ø150mm (6 in) blue Kevlar® cone bass/midrange
    Frequency Range (-6dB): 35Hz – 50kHz
    Recommended Amplifier Power: 25 - 100W
    Sensitivity: 86 dB
    Nominal Impedance: 8Ω (minimum 4.8Ω)
    Frame Diameter: 240mm
    Cut-out diameter: 202mm
    Depth Behind Surface: 92mm
    Protrusion: 7mm
    Pre-Mounting Kit: PMKC6
    Back Box: BB 6W or BB125C
    Weight: 2.3kg
    Manufacturer's Warranty* 5 years
    Faulty From New*: (Within 14 Days Of Purchase): Return to AWE for assessment.
    Please complete this online Returns Form
    After 14 Days Of Purchase*:
    (Within The Manufacturer's Warranty):
    Return to AWE for assessment.
    Please complete this online Form
    Post-Warranty Service and Repair: Please contact an authorised service centre: Sontec or Sound System Technology
    *Terms & Conditions: For further information regarding AWE's returns procedures, please see chapters 7 & 8 in our Terms & Conditions
    Name File Name
    CCM663RD Dimensions - PDF and DWG CCM663RD Dimensions - PDF and DWG.zip
    CCM663RD Quick Start Guide CCM663RD Quick Start Guide.pdf
    CCM663RD-Information-Sheet CCM663RD-Information-Sheet.pdf
