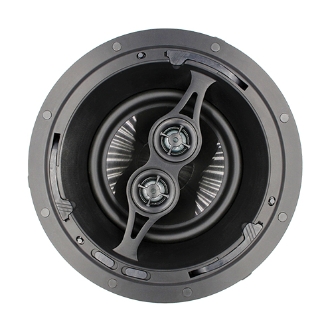

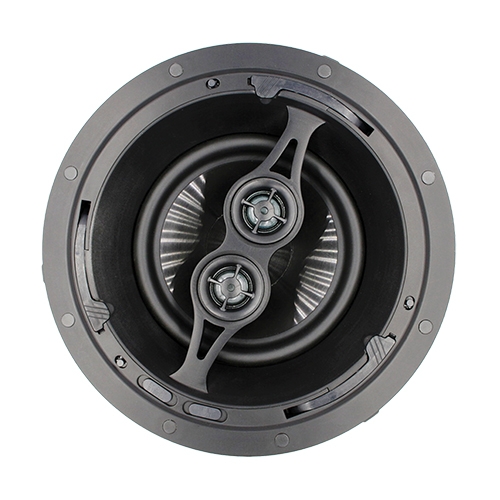

URC SP-DV6 6.5” In-Ceiling Stereo Speaker - Dual Voice Coil Speaker

Additional Information

Description Specification Downloads

URC SP-DV6 6.5” In-Ceiling speaker Dual voice coil speaker polypropylene woofer, silk dome tweeters

The SP-DV6 is perfect for locations that cannot support two separate speakers. It provides both stereo channels from one location. With our revolutionary clamping system and easy wire connectivity, the SP-DV6 is a true tool-less architectural speaker. Simply connect the speaker wire to the removable terminal, install the speaker into the cut-out and then push down the levers to engage the clamps to the drywall. The unique clamping system locks the speaker in place. That’s it!

A speaker install that takes seconds. No more balancing act on top of a ladder with a screw gun in one hand and the speaker in the other.

Speaker Type: In-ceiling, two-way round speaker
Woofer: 6.5” polypropylene woofer
Tweeter: Dual 3/4” silk dome swivel tweeters
Power Handling: 5-100 watts
Nominal Impedance: 8 ohms
Frequency Response: 50-20 kHz
Sensitivity: 91 dB
EQ Adjustments: -3 dB, 0 dB, +3 dB (tweeter and woofer)
Grill: Frameless magnetic micromesh steel grill
UPC: 656787-600010
Cutout Dimensions: 8.15” (207mm)
Ceiling Thickness: 0.5” min – 1.0” max
Finished Dimensions: 9.45” Diameter (240mm), 3.98” Depth (101mm)
Warranty: Limited lifetime

Features

  • True tool-less installation design
  • 6.5” Two-Way Dual Voice Coil In-Ceiling Speaker
  • Polypropylene Woofer, Silk Dome Tweeter
  • Unique, patented clamp system allows for easy installation and removal.
  • Removable speaker wire terminal.
