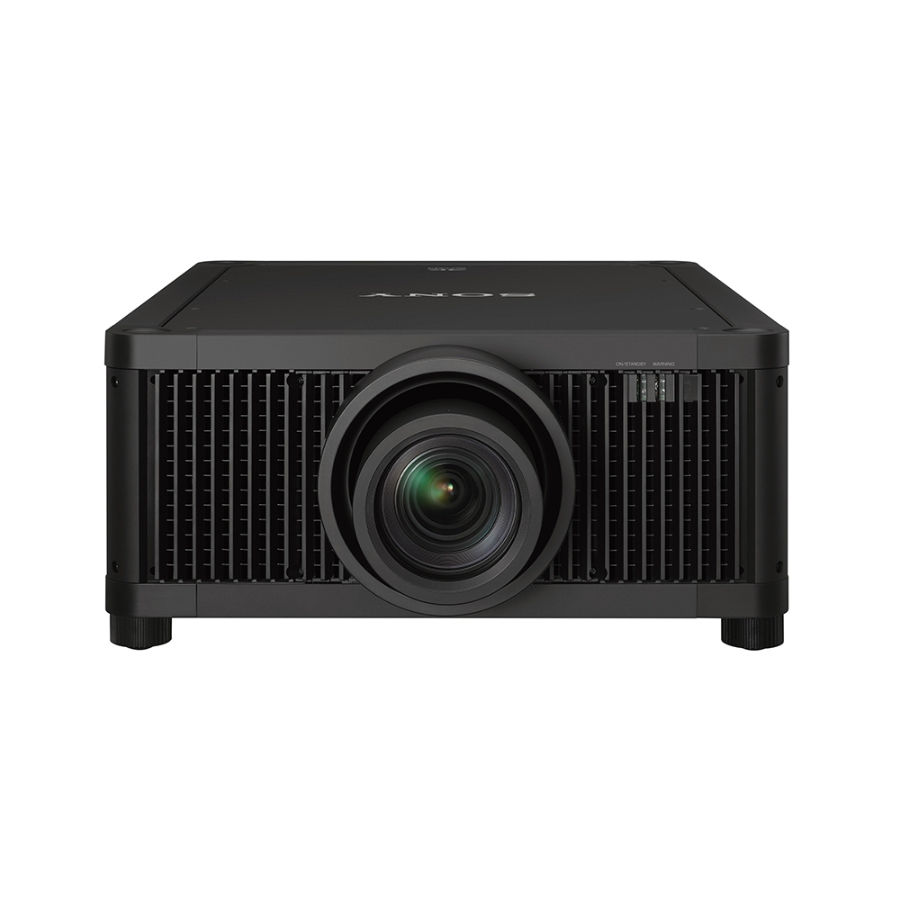

Sony PSE VPL-GTZ380 4K SXRD 10,000 Lumens Laser Projector, Black - Lens Sold Separately

The Sony VPL-GTZ380 is the world’s most advanced projector designed for large home cinemas to bring a true theatre experience home. An exceptional 10,000 lumens of brightness with 100% DCI-P3 wide colour gamut is perfect for the largest and most lavishly equipped home cinema rooms and well-lit living spaces alike. The VPL-GTZ380 brings movies to life with strikingly expressive images that deliver an unforgettable viewing experience, for whatever you’re watching.

Lens Choices: Short Throw
Normal Throw
Display System: 4K SXRD panel projection system
Display device - Size of effective display area: 0.74» (18.8mm) x3
Display device - Number of pixels: 26,542,080 (4096 x 2160 x 3) pixels
Projection lens focus: Powered
Projection lens zoom: Powered
Lens shift: VPLL-Z8008: Powered V:± 0.5V I H:± 0.18H
Throw RatioVPLL-Z8014: Powered V:± 0.8V I H:± 0.31H
Throw Ratio: VPLL-Z8008: 0.8:1 to 1.02:1
VPLL-Z8014: 1.4:1 to 2.73:1
Light source: Laser diode (Two Blue different wavelength lasers and Red laser)
Light output: 10,000 Im
Colour light output: 10,000 Im
Contrast Ratio: 16,000 : 1 ( Native contrast) / ∞ : 1 (dynamic contrast)
Display resolution - Computer signal input: Maximum display resolution: 4,096 x 2,160 dots
Maximum Video signal input: 4K120P RGB 4:4:4 10bit (via 2x Display Port)
4K60p YUV 4:2:2 12bit (via HDMI)
Input / Output: HDMI (HDCP 2.3) x 2
Display Port (HDCP 2.3) x 2
RS-232C
3D SYNC OUT (VESA 3D)
IR IN/OUT
Trigger x 2
LAN
USB
Acoustic noise : 39dB
Operating temperature / Operating humidity: 5℃ to 40℃ (41°F to +104°F) / 20% to 80% (no condensation)
Power requirements: AC100V to 240V, 50/60Hz
Power consumption / Standby Power Consumption: approx. 2.0KW / 0.3 W
Heat dissipation: 4,092 BTU/h
Dimensions: 560 x 228 x 760 mm (22 1/16 x 8 31/32 x 29 15/16 in) (without protrusions)
560 x 262 x 760 mm (22 1/16 x 10 5/16 x 29 15/16 in)
Weight: 51kg (excluding lens)
Manufacturer's Warranty*: 3 Year PrimeSupportPro or 7000 Hours RTB
Faulty From New*:
(Within 28 Days Of Purchase)		 Return to AWE for assessment.
Please complete this online Returns Form

Warranty Info

After 28 Days Of Purchase*:
(Within The Manufacturer's Warranty)		 The return is managed by Sony.
Please click through to find your nearest authorised Sony Service Centre
*Terms & Conditions: For further information regarding AWE's returns procedures please see chapters 7 & 8 in our Terms & Conditions

Features

  • Laser powered 10,000 lm brightness
  • 100% DCI-P3 colour gamut
  • Native 4K resolution (4096 x 2180)
  • X1™ Ultimate for projector
