SplitterMax14 1x4 HDMI 2.0 splitter

Additional Information

Description Specification Downloads

HDC SpliiterMax14 1x4 HDMI 2.0 splitter

Split one HDMI source device to up to 4 displays via HDMI. The 1x4 Splitter MAX has maximum bandwidth capabilities making it the ultimate splitter option for cinema purists, it supports the full HDMI 2.0 (a/b) 18Gbps max data rate, and is capable of carrying the most premium UHD/4K 60 4:4:4 content, with all HDR formats (10 & 12-bit), Dolby Vision®, HDR10+ and HLG.

The 1x4 Splitter MAX works with with 1080p and Ultra HD 4K HDMI devices alike, such as SkyQ, AppleTV, Xbox one,Tv Stick, PS3/PS4, Blu-Ray dvd, Roku, Virgin Tivo and many more.

Distribute up to 100m from the 1x4 Splitter MAX using our ActiveWire MAX or Fibre Optic MAX cables.

1x4 Splitter MAX's can even be stacked up to 4 times, so you can distribute to even more displays!

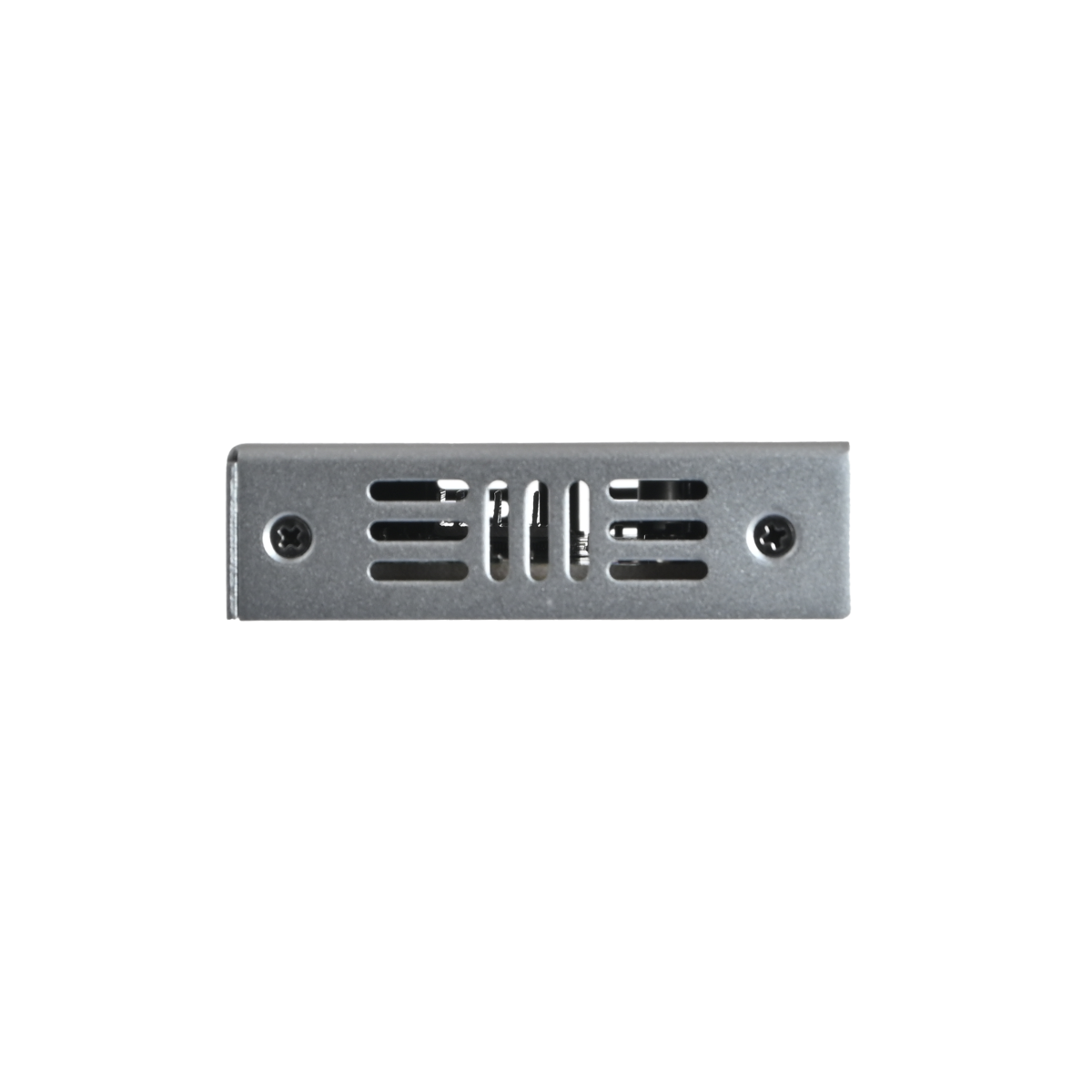

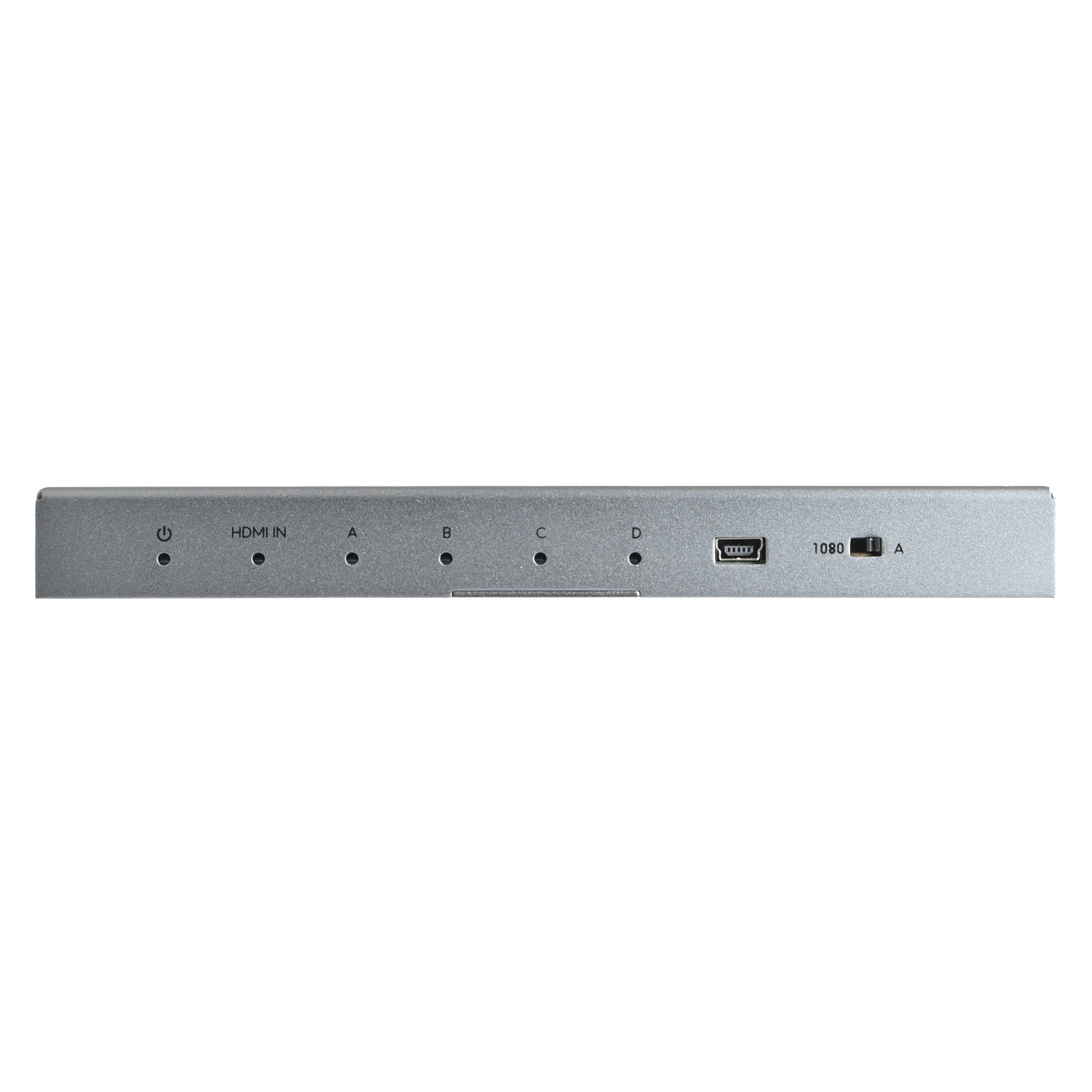

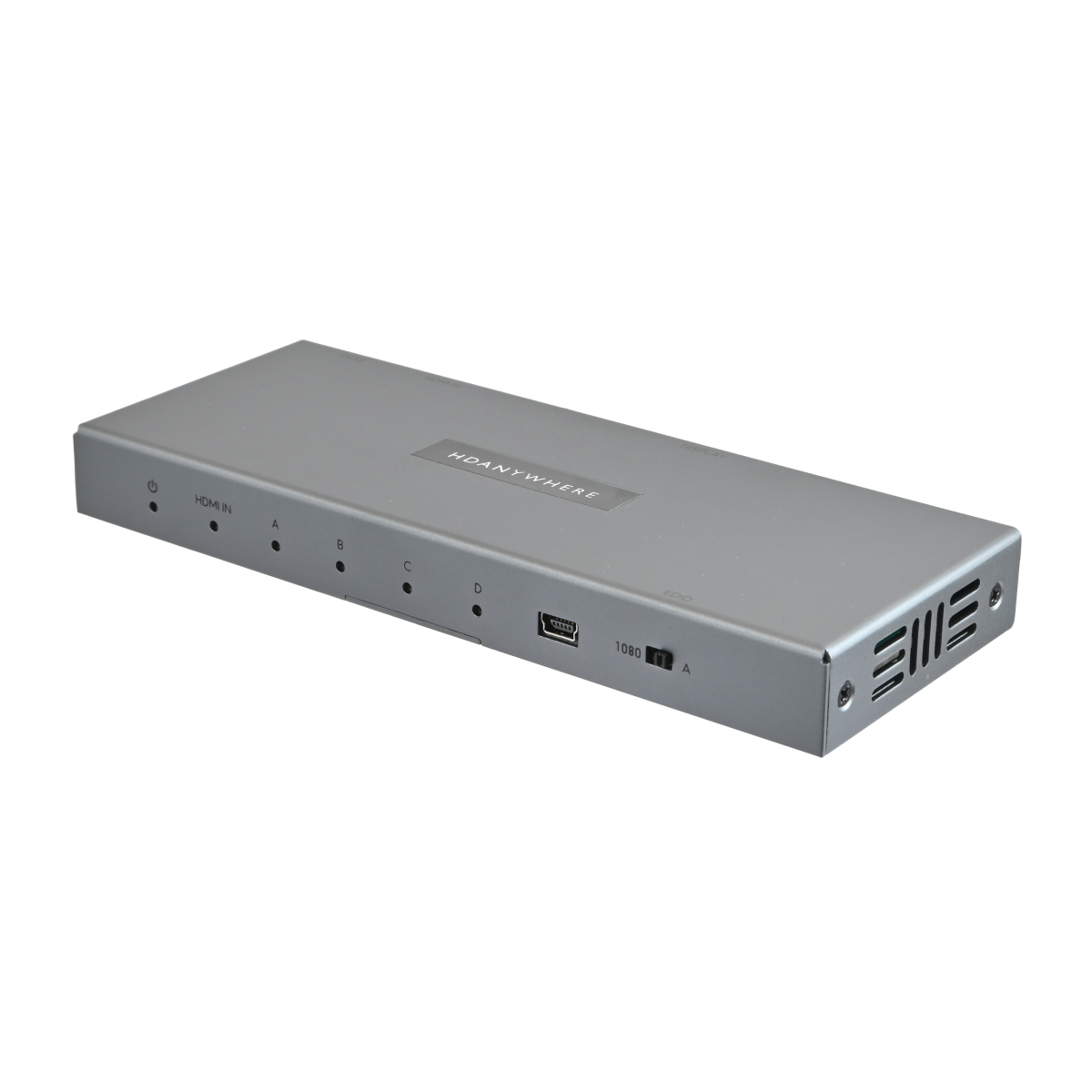

Form factor: Lightweight slender aluminium enclosure

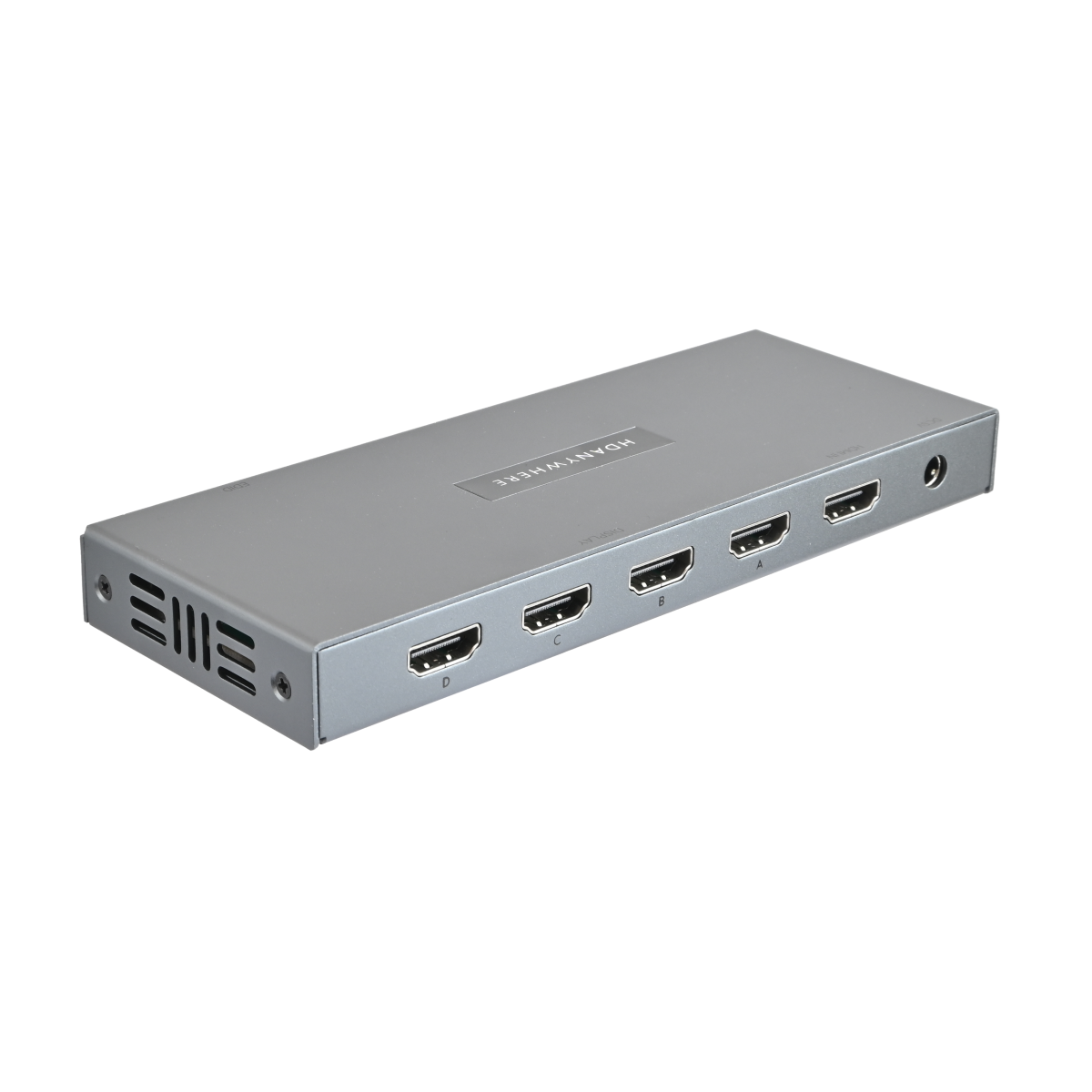

Inputs x outputs: 1 HDMI / 4 HDMI
Transmission tech: Native HDMI
Video bandwidth: 594MHz
ESD protection: ± 8kV (air-gap discharge) ± 4kV (contact discharge)
Device / Package weight: 165g
Dimensions (W/D/H): 163 / 63 / 16mm
Power: Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified)
Operating temperature: 0°C ~ 40°C / 32°F ~ 104°F
Storage temperature: -20°C ~ 60°C / -4°F ~ 140°F
Relative humidity: 20~90 % RH (non-condensing)
Power consumption: 2W
Warranty: 2 years
