Bowers & Wilkins CWM8.3D 3 Way In Wall System Rectangle (FP39349) Single unit

Stock Code: CWM8.3D

CWM8.3 D: In-Wall Reference Series


For situations when you want near-invisible loudspeakers but refuse to compromise on sound quality. CI 800 Series Diamond and CI 700 Series models feature matching performance levels to their in-room counterparts in the 800 Series Diamond and 700 Series.

See nothing, hear everything

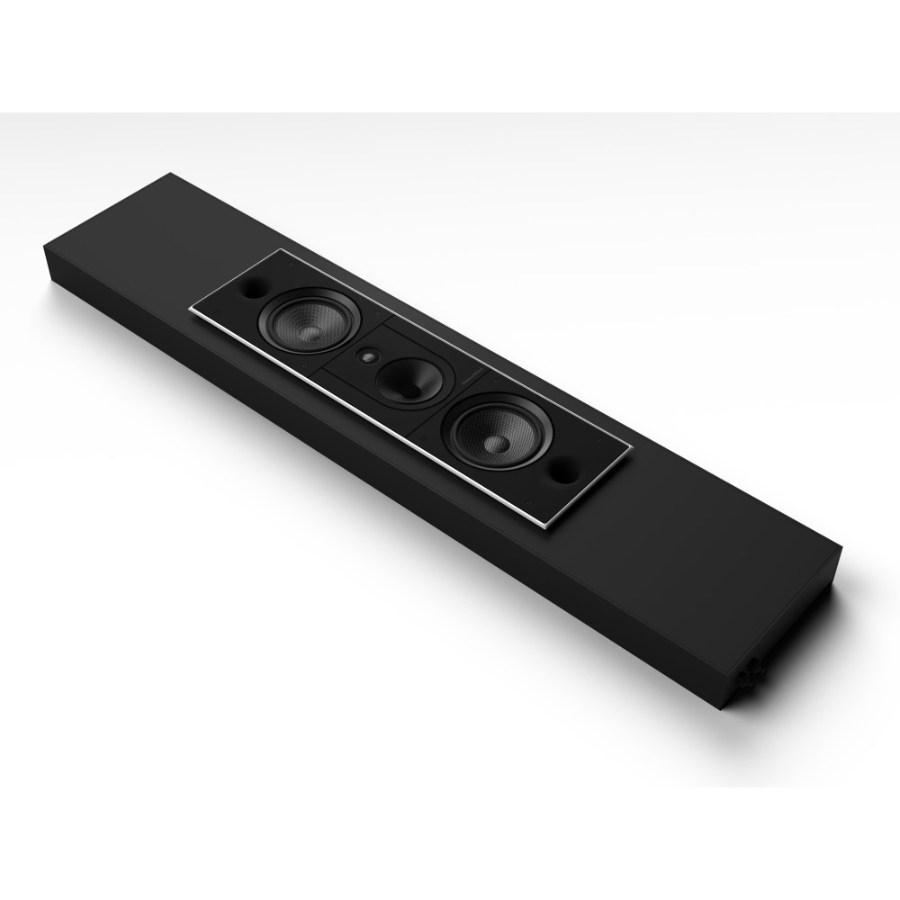

CWM8.3 D is a three-way in-wall loudspeaker, conceived to offer the very best performance for a customer requiring great sound without seeing the source. It features a decoupled Diamond dome tweeter, a 5in Continuum FST midrange drive unit and two 7in Aerofoil low-frequency drivers. The central baffle is rotatable, so CWM8.3 D can be used in either vertical or horizontal alignment. For optimum discretion when installed, the Continuum cone is given a dark finish.

  • Aluminium mini baffle can be turned through 90 degrees
  • Carbon Aerofoil bass drivers
  • Flowport™
  • Backbox not included
  • Description: 3-way in-wall loudspeaker
    Technical Features: Aluminium mini baffle can be turned through 90 degrees
    Diamond Dome, Nautilus™
    tube-loaded tweeter
    Anti-resonance plug
    Flowport™
    FST™ midrange unit
    Carbon Aerofoil bass drivers
    Drive Units: 1x ø25mm (1in) Diamond Dome, Nautilus™ tube-loaded tweeter
    1x ø130mm (5in) Continuum midrange driver
    2x ø180mm (7in) Aerofoil Bass drivers
    Frequency Range (-6dB): 30Hz - 35kHz
    Recommended Amplifier Power: 200W
    Sensitivity: 89dB
    Nominal Impedance: 8Ω
    Frame Height: 880mm
    Frame Width: 254mm
    Cut-out height: 864mm
    Cut-out width: 238mm
    Protrusion: 8mm
    Net Weight: 10.9kg
    Back Box: Not Included BBCWM8.3
    Manufacturer's Warranty*: 5 years
    Faulty From New*: (Within 14 Days Of Purchase): Return to AWE for assessment.
    Please complete this online Returns Form
    After 14 Days Of Purchase*:
    (Within The Manufacturer's Warranty):
    Return to AWE for assessment.
    Please complete this online Form
    Post-Warranty Service and Repair: Please contact an authorised service centre: Sontec or Sound System Technology
    *Terms & Conditions: For further information regarding AWE's returns procedures, please see chapters 7 & 8 in our Terms & Conditions
    Name File Name
    CWM8.3 D Installation Instructions CWM8.3 D Installation Instructions.pdf
    CWM8.3D Dimensions - PDF and DWG CWM8.3D Dimensions - PDF and DWG.zip
    CWM8-3-D-Information-Sheet CWM8-3-D-Information-Sheet.pdf
