Bowers & Wilkins CCM683 600 Series 8" In Ceiling Speaker (FP29637) Pair

Additional Information

Description Specification Downloads

CCM683: Performance Series Pair

Our Performance Series delivers fantastic sound in an incredibly discreet package. These loudspeakers are engineered by the same team who creates the loudspeakers used in some of the world’s most advanced recording studios.

See nothing, hear everything

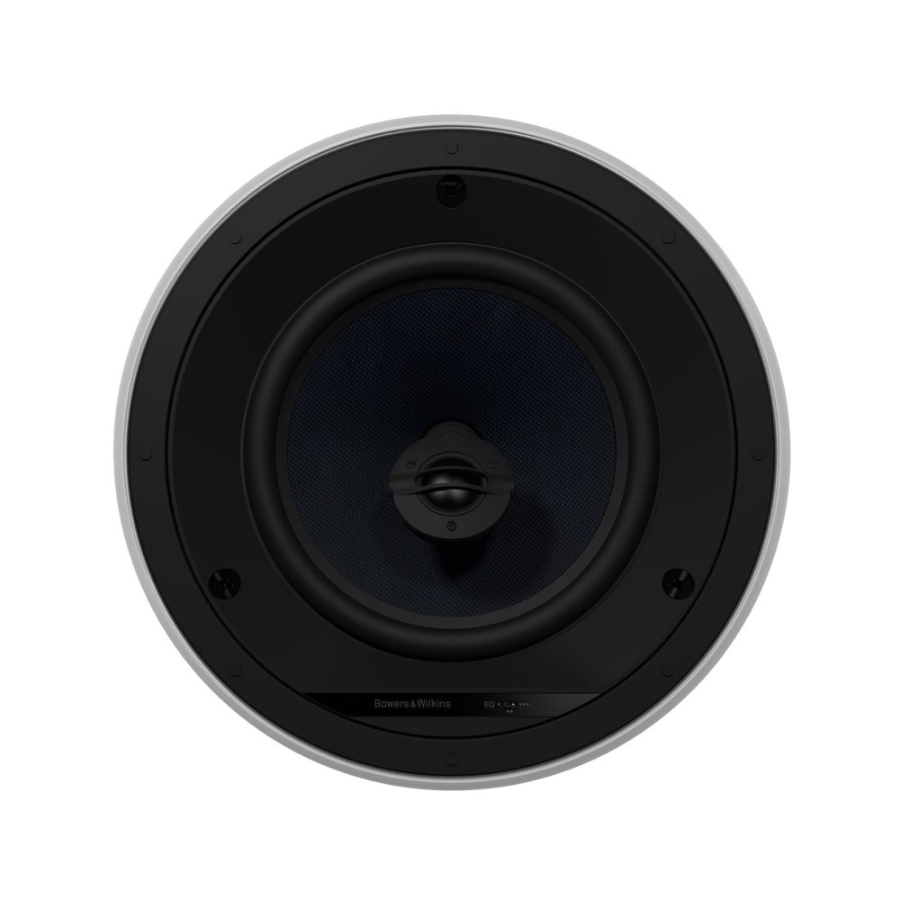

The CCM683 is a true high performance ceiling-mount speaker. The speaker features a 200mm (8in) woven blue Aramid Fibre cone bass/ midrange driver and an aluminium tweeter in a neat circular die-cast chassis. The tweeter’s housing pivots for adjustable off-axis treble response and the die-cast chassis provides extra rigidity that results in a cleaner, faster bass. The speaker also has a three-position EQ switch for a better off-axis response. The blue Aramid Fibre cone means that the unit is well hidden behind the grille but still produces a remarkably clear and dynamic sound. .

Description: 2-way in-ceiling system
Drive Units: 1x ø25mm (1 in) Nautilus™ swirl loaded aluminium dome tweeter
1x ø200mm (8in) blue Aramid Fibre cone bass/midrange
Frequency Range (-6dB): 35Hz – 50kHz
Recommended Amplifier Power: 25 - 130W
Sensitivity: 88 dB
Nominal Impedance: 8Ω (minimum 4.5Ω)
Frame Diameter: 290mm
Cut-out diameter: 250mm
Depth Behind Surface: 133mm
Protrusion: 4mm
Pre-Mounting Kit: PMKC8
Back Box: BB6C
Manufacturer's Warranty*: 5 years
Faulty From New*: (Within 14 Days Of Purchase): Return to AWE for assessment.
Please complete this online Returns Form
After 14 Days Of Purchase*:
(Within The Manufacturer's Warranty):
Return to AWE for assessment.
Please complete this online Form
Post-Warranty Service and Repair: Please contact an authorised service centre: Sontec or Sound System Technology
*Terms & Conditions: For further information regarding AWE's returns procedures, please see chapters 7 & 8 in our Terms & Conditions

Features

  • Three-position EQ switch
  • Low distortion, high-resolution drive unit technologies
  • Adjustable EQ and tweeter directivity to optimise sound
