HDA MHUBPRO288100 MHUB PRO 2.0 (8x8)

Stock Code: MHUBPRO288100

HDA MHUBPRO288100 MHUB PRO 2.0 (8x8)

Designed to address the needs of a contemporary AV install, MHUB PRO 2.0 is fully HDMI 2.0 compatible, equipped with 18G HDMI interfaces and backplane to support Ultra HD 4K/60 (4:4:4) with HDBaseT 2.0 technology to transmit 4K to displays up to 100 metres away over a single Cat6 cable with no latency

18G (600MHz) HDMI® 2.0 and HDCP 2.2 compatible
Supports source content up to and inc. Ultra HD 4K 60 4:4:4 with High Dynamic Range(HDR) all current formats inc. Dolby Vision®
Supports all current audio formats including Dolby Atmos® and DTS:X®
HDBaseT 2.0 with PoH
Internal video scaling (4K>1080p on every output)
Internal 20x8 audio matrix switcher with flexible grabbing audio (source or display HDMIARC) via digi coax, or audio downmix via stereo jack
Internal uControl IO expander universal controller
Control paths via TCP/IP, two-way IR and RS232

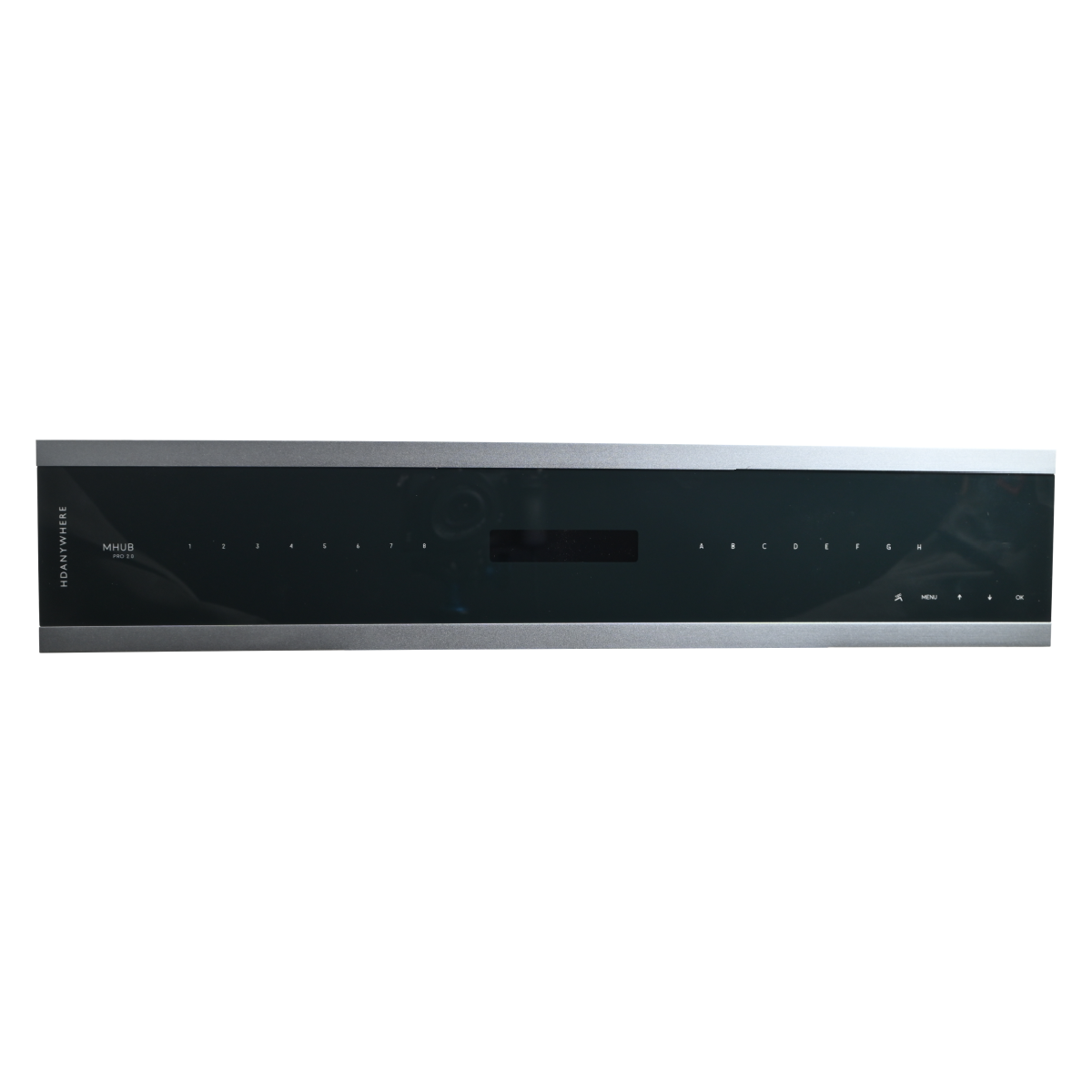

Backlit fade in/out touch panel controls
App/web GUI for easy config (MHUB-OS) with remote management (HDA Cloud)
2x integrated 10/100 Ethernet LAN connections at RX

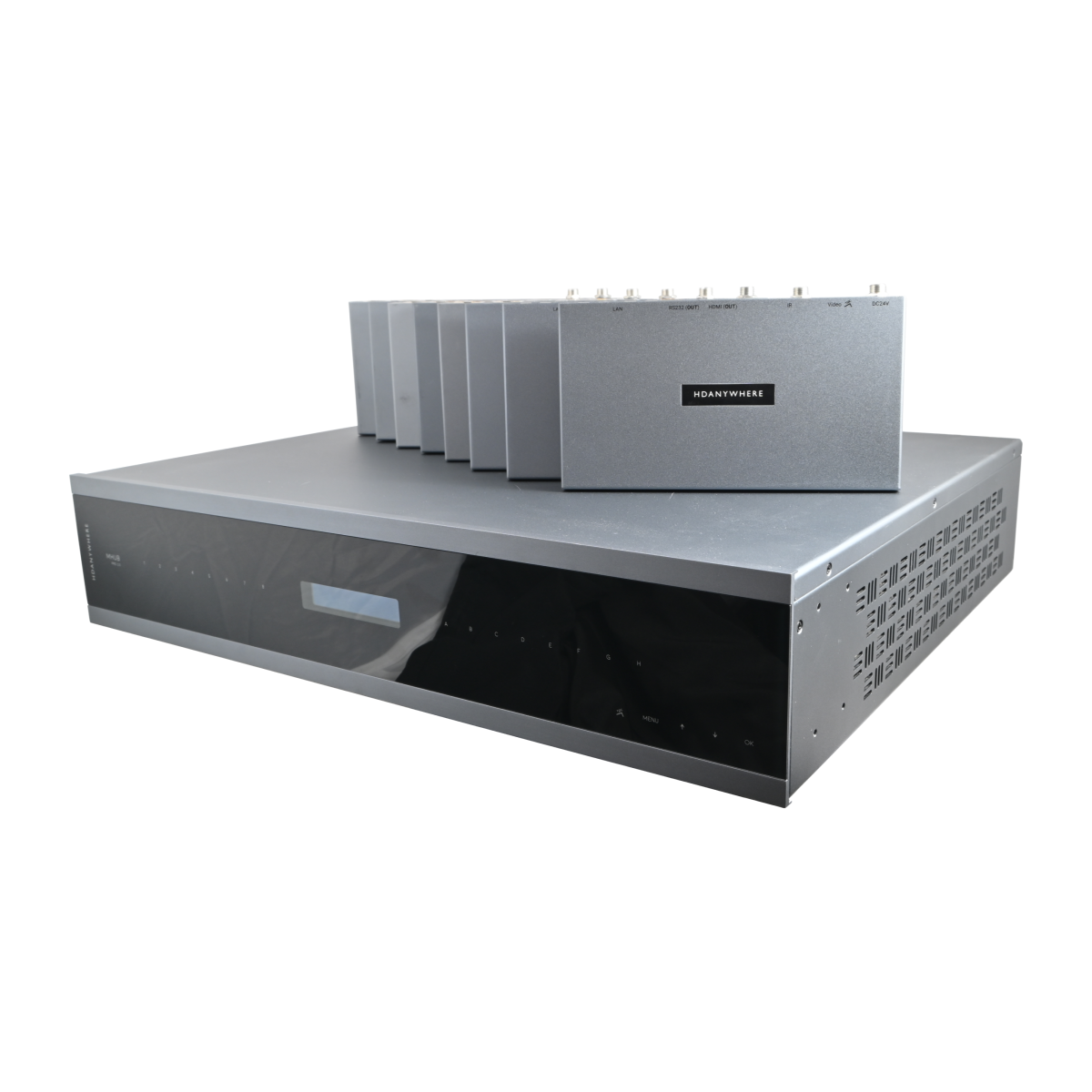

Sold as a complete install package, with all receivers, IR cables and mounting kit included.

  • 8 x HDMI inputs
  • 8 x HDBaseT output
  • 8 x HDMI mirror output
  • HDMI 2.0 18Gbps / Audio Matrix with ARC / Auto Scaling / CEC
  • All PoH receivers included (100m @ 4K)

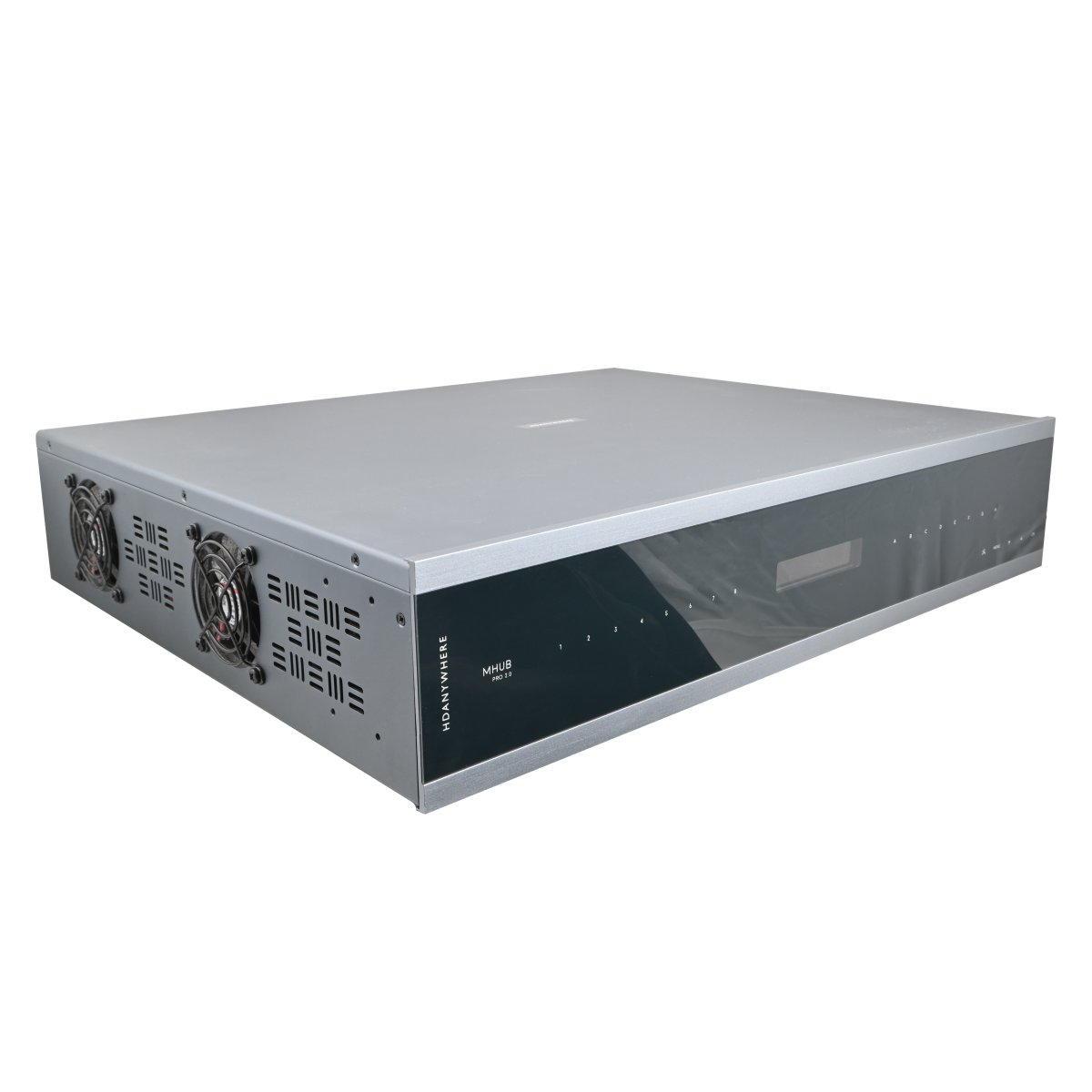

  • Form Factor 19”/2U aluminium rack-mountable unit

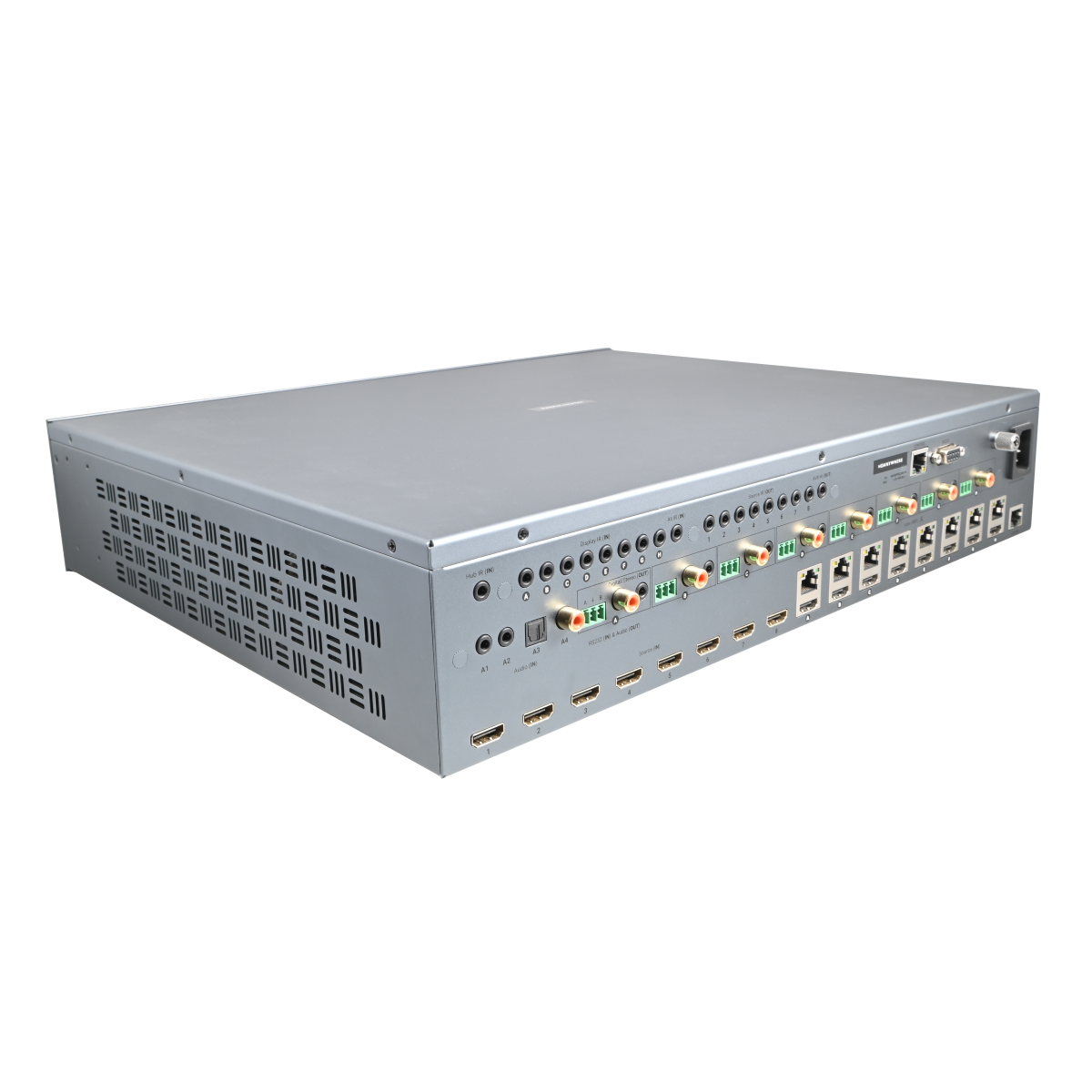

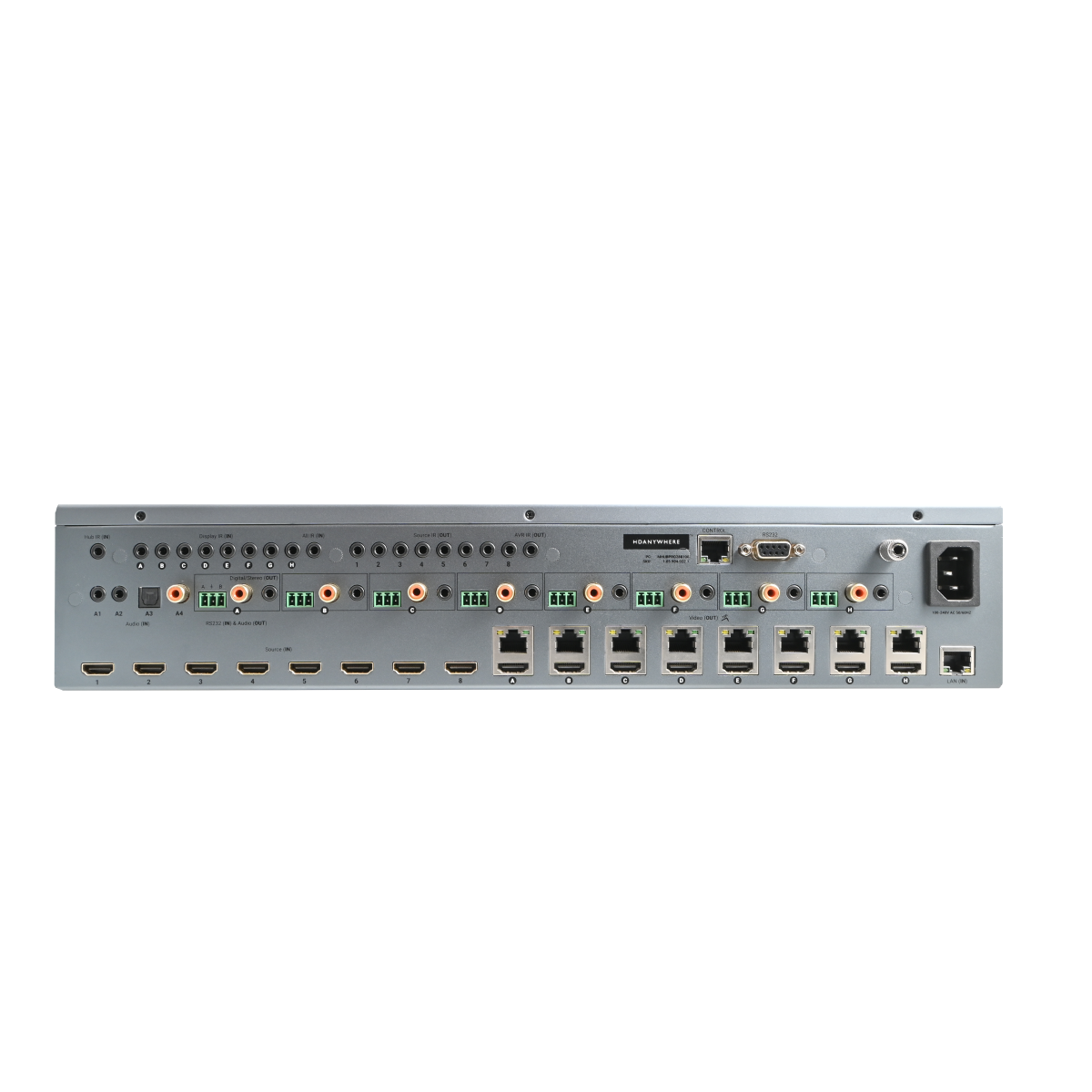

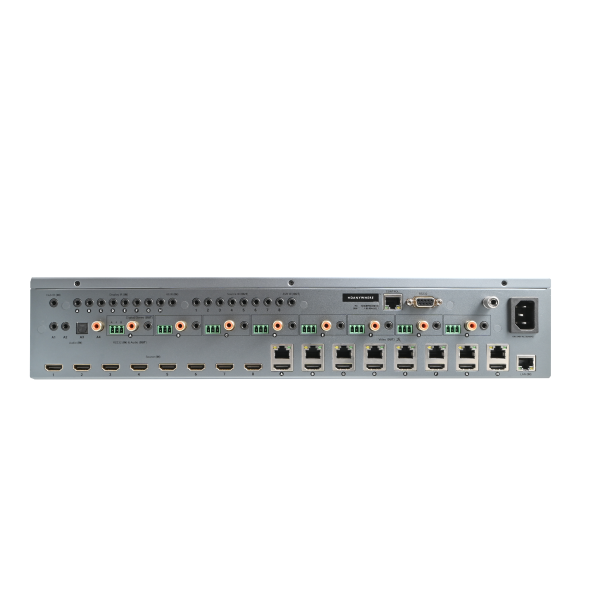

    Inputs x outputs: 8 HDMI x 8 RJ45 HDBaseT + 8 mirrored HDMI
    Transmission tech: HDBaseT 2.0 (VS200) + TPC
    Video bandwidth: HDMI backplane 594MHz clock / 18Gbps data
    HDBT 340MHz clock / 10.2Gbps data
    ESD protection : ± 8kV (air-gap discharge) ± 4kV (contact discharge)
    Hub control Web GUI, IR, TCP/IP, RS232, App, Alexa
    App control: Full control over sources, matrix hub & display functions.
    Device weight Hub 4600g
    RX 192g
    Package weight: 8500g
    Dimensions (W/D/H) Hub 440 / 380 / 90mm (without feet)
    RX 163 / 94 / 19mm
    Power consumption: 30W (max) 0.5W (standby)
    What's in the box: Sold as a complete install package, with all receivers, IR cables and mounting kit included.
    Manufacturer's Warranty*: 3 Years, 5 Years by Cloud Registration (Cloud Registration must be completed within 30 days of installation for the extended warranty period to be activated.)
    Faulty From New*:
    (Within 28 Days Of Purchase)
    Return to AWE for assessment.
    Please complete this online Returns Form
    After 28 Days Of Purchase*: Return to AWE for assessment.
    Please complete this online Returns Form
    *Terms & Conditions: For further information regarding AWE's returns procedures please see chapters 7 & 8 in our Terms & Conditions
    Name File Name
    HD Connectivity - HDANYWHERE 2020 BROCHURE UPDATES HD Connectivity - HDANYWHERE 2020 BROCHURE UPDATES.pdf
    mhubpro2-44-88-manual mhubpro2-44-88-manual.pdf
    MHUB-PRO-2-88-100-DATASHEET MHUB-PRO-2-88-100-DATASHEET.pdf
