HDA MHUBPRO24440 MHUB PRO 2.0 4x4

MHUBPRO24440
MHUBPRO24440 back

Additional Information

Description Specification Downloads

HDA MHUBPRO24440 MHUB PRO 2.0 4x4 40m

Designed to address the needs of a contemporary AV install, MHUB PRO 2.0 is fully HDMI 2.0 compatible, equipped with 18G HDMI interfaces and backplane to support Ultra HD 4K/60 (4:4:4) with HDBaseT 2.0 technology to transmit 4K to displays up to 40 metres away over a single Cat6 cable with no latency.

18G (600MHz) HDMI® 2.0 and HDCP 2.2 compatible
Supports source content up to and inc. Ultra HD 4K 60 4:4:4 with High Dynamic Range (HDR) formats inc. Dolby Vision®
Supports all current audio formats including Dolby Atmos® and DTS:X®
HDBaseT 2.0 with PoH
Internal video scaling (4K>1080p on every output)
Internal 12x4 audio matrix switcher with flexible grabbing audio (source or display HDMIARC) via digi coax, or audio downmix via stereo jack
Internal uControl IO expander universal controller
Control paths via TCP/IP, two-way IR and RS232

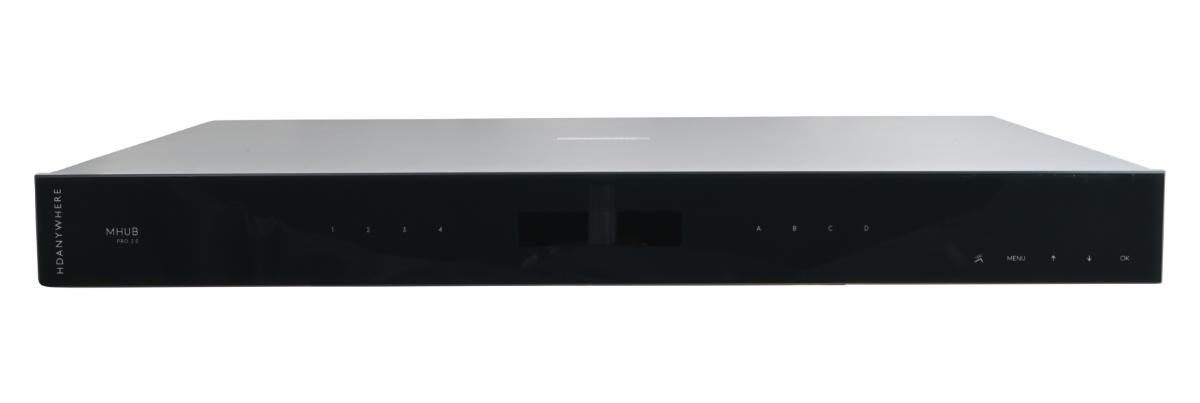

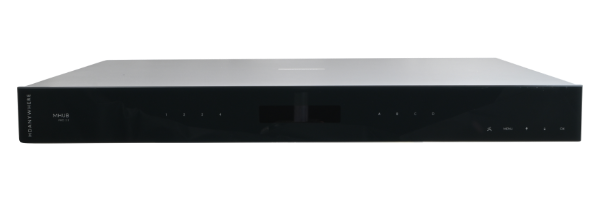

Backlit fade in/out touch panel controls
App/web GUI for easy config (MHUB-OS) with remote management (HDA Cloud)

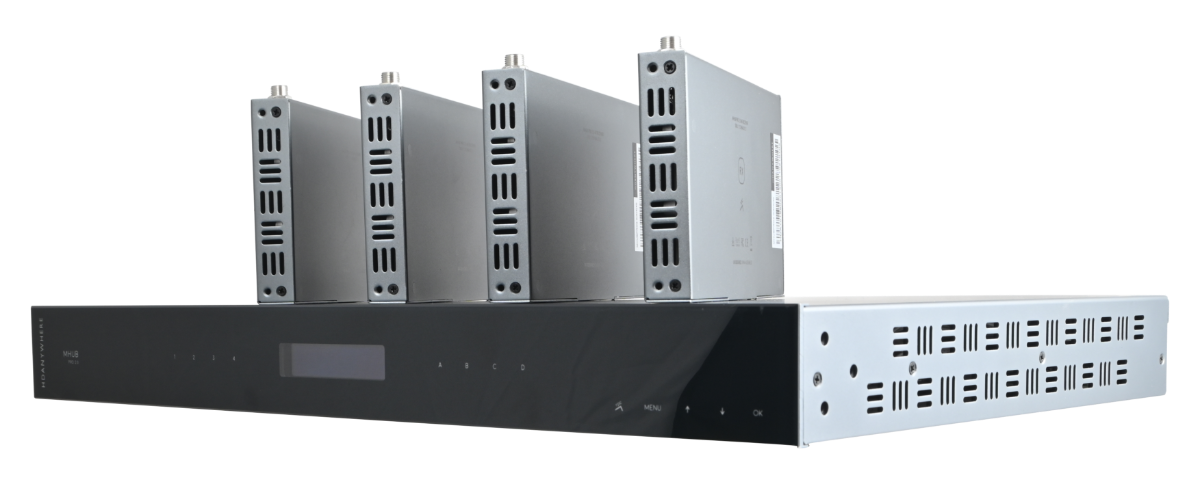

Sold as a complete install package, with all receivers, IR cables and mounting kit included.

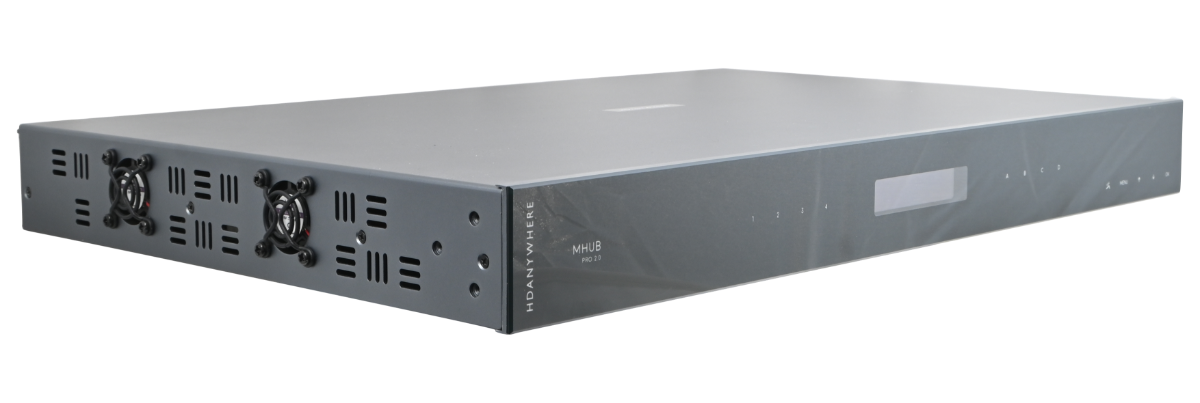

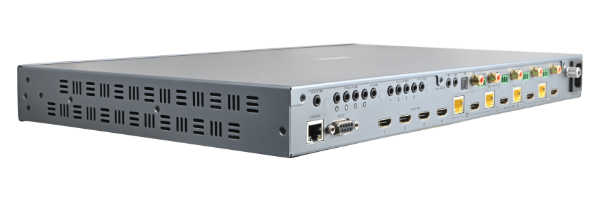

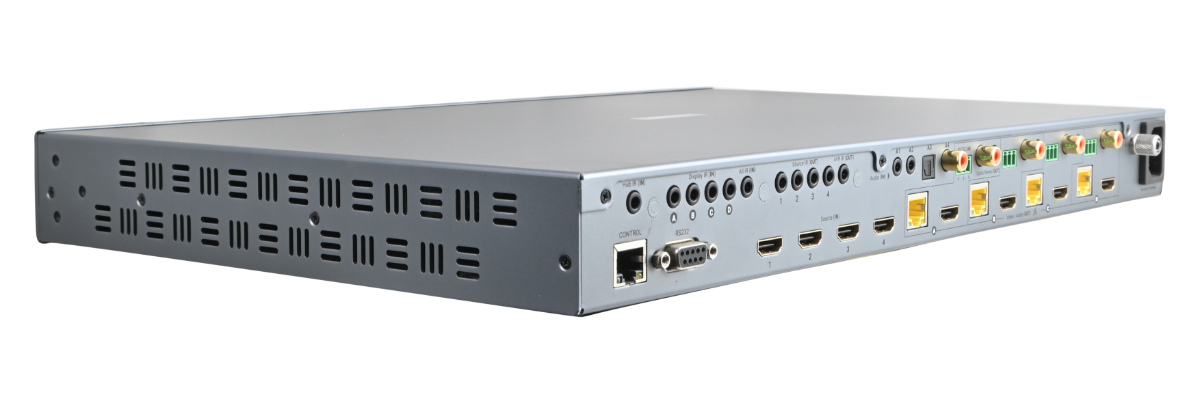

Form Factor 19”/1U aluminium rack-mountable unit

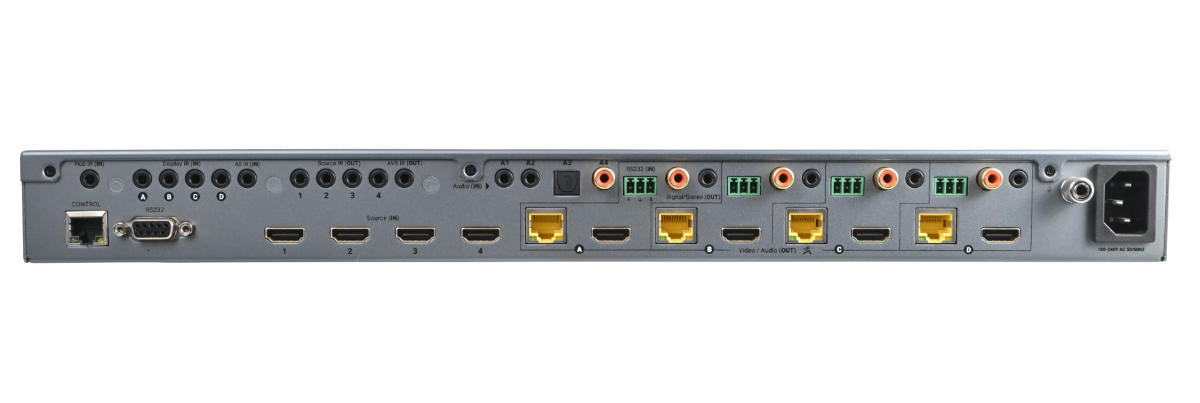

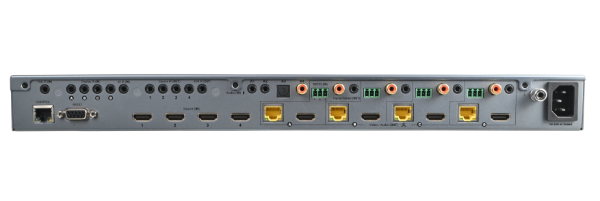

Inputs x outputs: 4 HDMI x 4 RJ45 HDBaseT + 4 mirrored HDMI
Transmission tech: HDBaseT 2.0 (VS200) + TPC
Video bandwidth: HDMI backplane 594MHz clock / 18Gbps data
HDBT 340MHz clock / 10.2Gbps data
ESD protection : ± 8kV (air-gap discharge) ± 4kV (contact discharge)
Hub control Web GUI, IR, TCP/IP, RS232, App, Alexa
App control: Full control over sources, matrix hub & display functions.
Device weight Hub 2400g
RX 192g
Package weight: 3500g
Dimensions (W/D/H) Hub 440 / 284 / 45mm (without feet)
RX 163 / 94 / 19mm
Power consumption: 30W (max) 0.5W (standby)
What's in the box: Sold as a complete install package, with all receivers, IR cables and mounting kit included.
Manufactures Warranty*: 3 Years, 5 Years by Cloud Registration, (Cloud Registration must be completed within 30 days of installation for the extended warranty period to be activated).
Faulty From New*:
(Within 28 Days Of Purchase)		 Return to AWE for assessment.
Please complete this online Returns Form
After 28 Days Of Purchase*: Return to AWE for assessment.
Please complete this online Returns Form
*Terms & Conditions: For further information regarding AWE's returns procedures please see chapters 7 & 8 in our Terms & Conditions

Features

  • 4 x HDMI inputs
  • 4 x HDBaseT output
  • 4 x HDMI mirror output
  • HDMI 2.0 18Gbps / Audio Matrix with ARC / Auto Scaling / CEC
  • All PoH receivers included (40m @ 4K)
