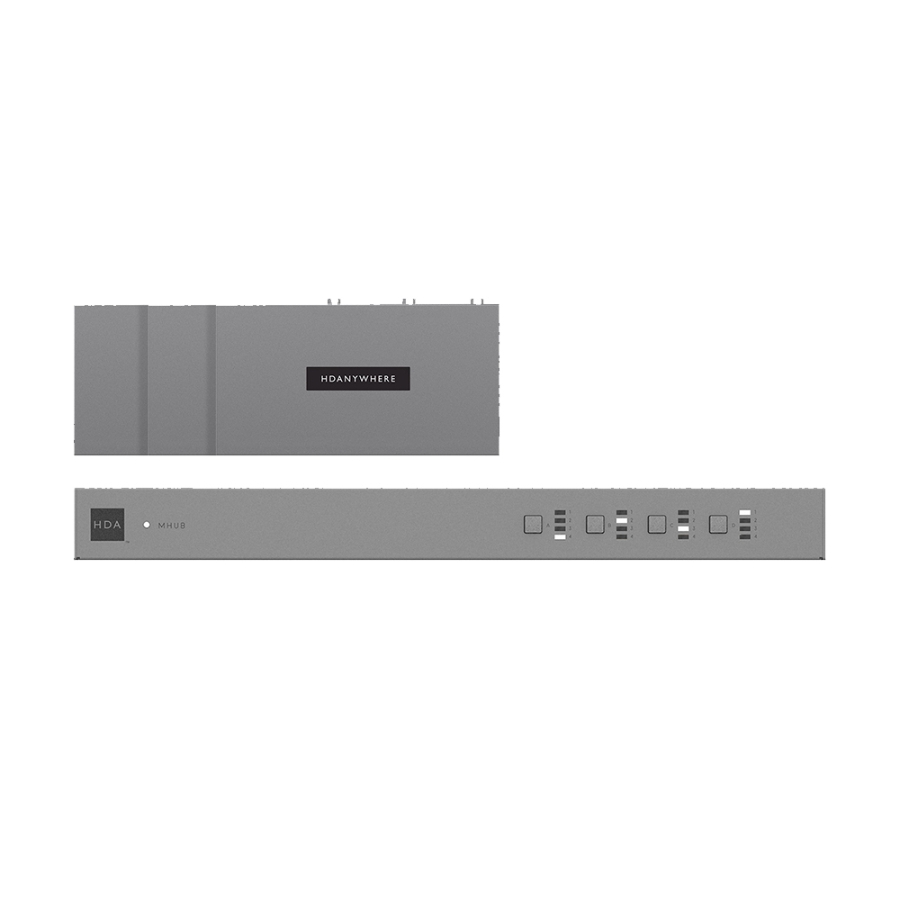

HDA MHUB431U40 MHUB U 4x3+1

End of Line

Cloud monitorable 4x3+1 HDMI/HDBT+HDMI matrix system with a 40m UHD 4K or 70m 1080p transmission range. An integrated IP>IR control processor enables property-wide control of all the connected sources and displays via the free uControl universal remote App or Alexa voice commands.

HDMI® 2.0 features supported up to 18Gbps
All display receivers powered via PoH
IR over HDMI injector dongle included
Web GUI for easy config and setup (MHUB-OS)
Remote system monitoring (HDA Cloud)
Advanced EDID management
Supports source content up to and inc. Ultra HD 4K 60 4:4:4 with High Dynamic Range (HDR) formats inc. Dolby Vision®
Supports all current audio formats up to and including Dolby Atmos® and DTS:X®
Multichannel audio or stereo extraction via optical, or via 3.5mm stereo jack
4K>1080 down/up-scaling receiver option available
Sold as a complete install package, with Receiver, IR cables included.

Form Factor Compact unit. Rack-mountable with optional 19”/1U kit (1.85.910.002.1)
Inputs x outputs: 4 HDMI x 3 RJ45 HDBaseT + 1 HDMI
Transmission tech: HDBaseT (VS010) + TPC and HDMI
Video bandwidth: HDMI backplane 594MHz clock / 18Gbps data
HDBT 340MHz clock / 10.2Gbps data
ESD protection : ± 8kV (air-gap discharge) ± 4kV (contact discharge)
Hub control Web GUI, IR, TCP/IP, RS232, App, Alexa
App control: Full control over sources, matrix hub & display functions.
Device weight Hub 1900g
RX 192g
Package weight: 2500g
Dimensions (W/D/H) Hub 372 / 167 / 36mm (without feet)
RX 163 / 94 / 19mm
Power consumption: 30W (max) 0.5W (standby)
What's in the box: Sold as a complete install package, with all receivers and IR cables.
Manufactures Warranty*: 2 Years, 5 Years by Cloud Registration (Cloud Registration must be completed within 30 days of installation for the extended warranty period to be activated).
Faulty From New*:
(Within 28 Days Of Purchase)
Return to AWE for assessment.
Please complete this online Returns Form
After 28 Days Of Purchase*: Return to AWE for assessment.
Please complete this online Returns Form
*Terms & Conditions: For further information regarding AWE's returns procedures please see chapters 7 & 8 in our Terms & Conditions

Features

  • 4 x HDMI inputs
  • 3 x HDBaseT output
  • 1 x HDMI mirror output
  • HDMI® 2.0 features supported up to 18Gbps
  • Display receiver powered via PoH
