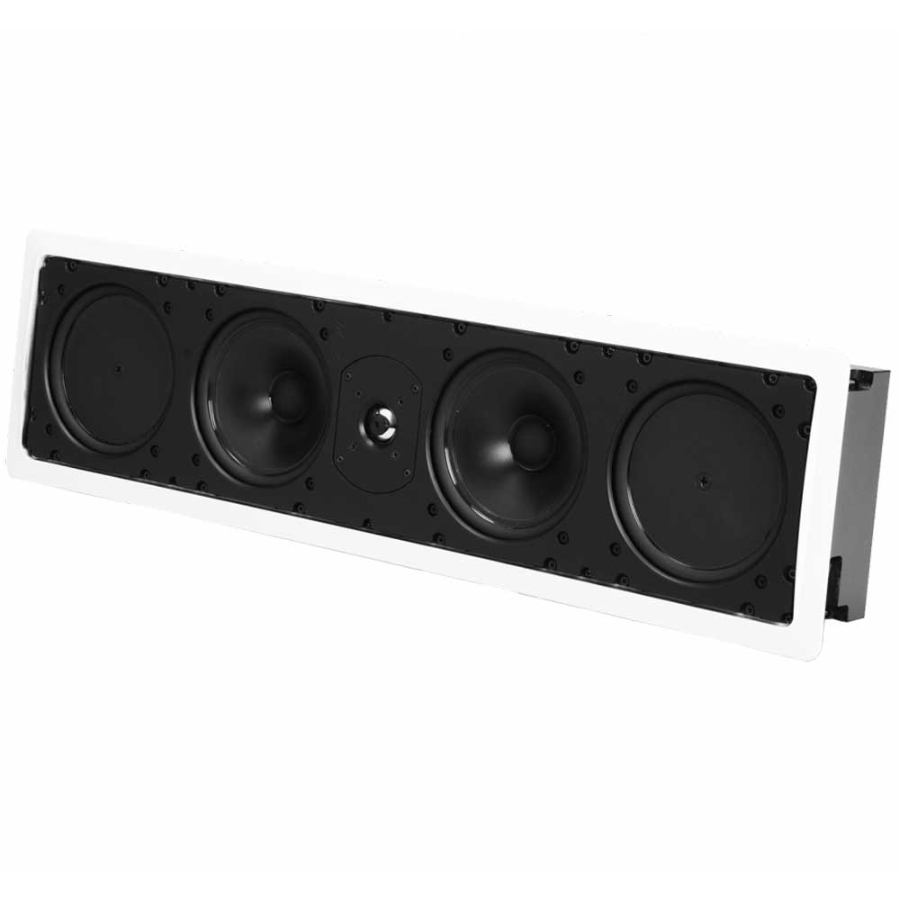

Definitive Technology UIWRLSII In-wall reference line source speaker rectangle

Additional Information

Description Specification Downloads

Definitive Technology UIWRLSII In-wall reference line source speaker rectangle each


The Reference Line Source II enclosed full-range loudspeaker delivers sonically sharp audio without vibration or buzz. Non-resonant sealed medite cabinets produce tight bass and clear midrange. A pure aluminium dome tweeter, two pressure-driven Low Bass radiators and their extraordinary performance make the RLS II perfect for left, right, centre or surround applications in home theatres or multichannel music systems.

Drive units: 1x 25.4 mm (1") Tweeter
2x 165.1 mm (6.5) Mid/Woofer
2x 165.1 mm (6.5") Bass Radiator
Depth: 96.8 mm (3.81")
Grille Dimensions (H x W) 755.7 x 206.5 mm
29.75" x 8.13"
Frequency Response: 22 Hz → 30 kHz
Max Sensitivity (1 watt @ 1 metre): 92 dB
Cut Out Dimensions (H x W): 723.9 x 177.8 mm
28.5" x 7"
Included Accessories: Wall Mounting Template
Paint Mask
Paintable Grille
Self Adhering Foam Gasket
Manufacturer's Warranty*: 5 Years Cabinet & Drivers
Faulty From New*:
(Within 28 Days Of Purchase)
Return to AWE for assessment.
Please complete this online Returns Form
After 28 Days Of Purchase*: The return / repair is managed by Sontec.
Please click through to their Service Centre
*Terms & Conditions: For further information regarding AWE's returns procedures please see chapters 7 & 8 in our Terms & Conditions


  • Pure Aluminium Tweeter
  • Non-Resonant Sealed Medite
  • Simple Stealth Installation
  • Extraordinary Sonic Performance
