Bowers & Wilkins CCM7.3S2 3 Way In Ceiling System Square (FP41084) Single unit

Additional Information

Description Specification Downloads

CCM7.3 S2: Reference Series

For situations when you want near-invisible loudspeakers but refuse to compromise on sound quality, there is our Reference Series.

See nothing, hear everything

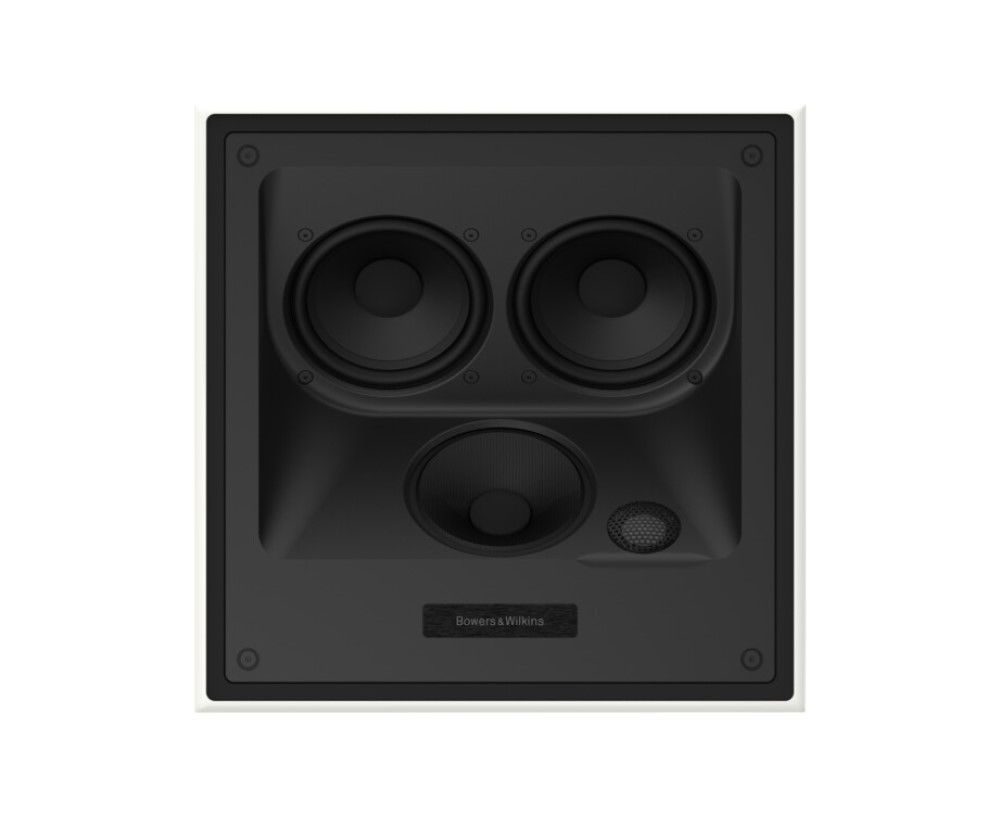

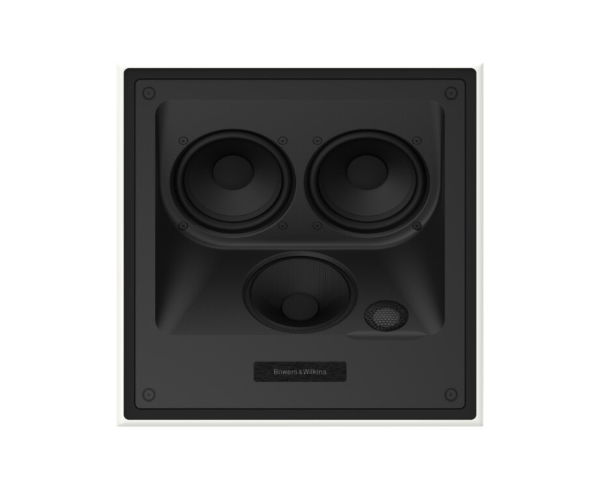

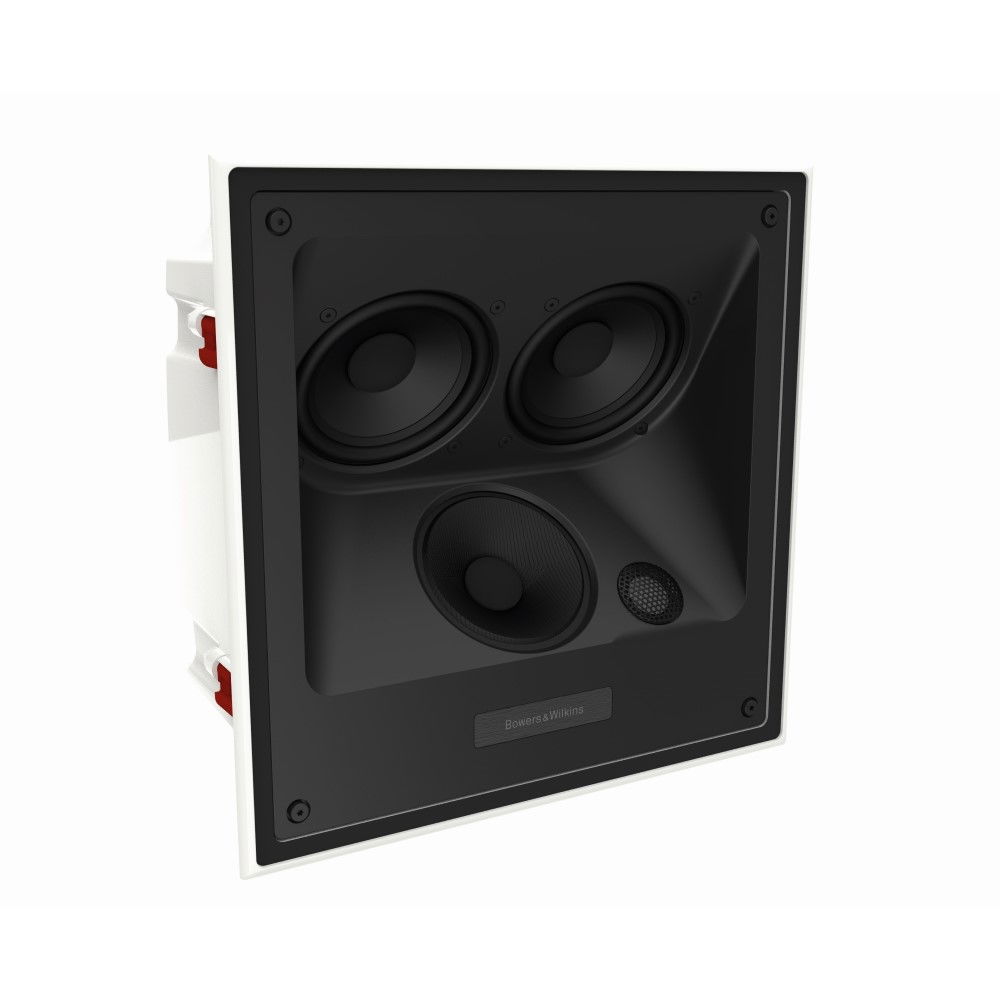

The CCM7.3 S2 is a high-performance in-ceiling speaker for outstanding performance in both theatre and stereo applications. Its sophisticated drive unit configuration features a 25mm(1in) Carbon Dome tweeter, a 100mm (4in) FSTTM Continuum cone midrange and 2 x 130mm (5in) Aerofoil Profile bass drivers. Its critically formed baffle is constructed from glass reinforced ABS while its integrated backbox ensures easy retrofittable installation, cuts down sound transfer between spaces and optimises sound quality.

Description: 3-way in-ceiling system
Technical Features: Carbon Dome tweeter
Continuum cone FST midrange
Aerofoil profile bass cones
Drive Units: 1x ø25mm (1in) Carbon Dome high-frequency
1x ø100mm (4in) Continuum cone FST midrange
2x ø130mm (5in) Aerofoil profile bass
Frequency Range (-6dB): -6dB at 52Hz and 33kHz
Frequency Response (-3dB): 55Hz - 28kHz ±3dB
Sensitivity: 90dB
Harmonic Distortion: 2nd and 3rd harmonics (90dB, 1m)
< 1% 90Hz - 33kHz
< 0.5% 120Hz - 33kHz
Nominal Impedance: 8Ω (minimum 3.1Ω)
Recommended Amplifier Power: 25W - 200W into 8Ω on unclipped programme
Frame Height: 355mm
Frame Width: 355mm
Depth: 194.5mm
Cut-out Height: 332mm
Cut-out Width: 332mm
Cut-out Height with PMK: 335mm
Cut-out Width with PMK: 335mm
Protrusion: 8mm
Pre-Mounting Kit: PMK7C
Net Weight: 9kg
Manufacturer's Warranty* 5 years
Faulty From New*: (Within 14 Days Of Purchase): Return to AWE for assessment.
Please complete this online Returns Form
After 14 Days Of Purchase*:
(Within The Manufacturer's Warranty):
Return to AWE for assessment.
Please complete this online Form
Post-Warranty Service and Repair: Please contact an authorised service centre: Sontec or Sound System Technology
*Terms & Conditions: For further information regarding AWE's returns procedures, please see chapters 7 & 8 in our Terms & Conditions

Features

  • Carbon Dome tweeter
  • Continuum cone FST midrange
  • Aerofoil profile bass cones
