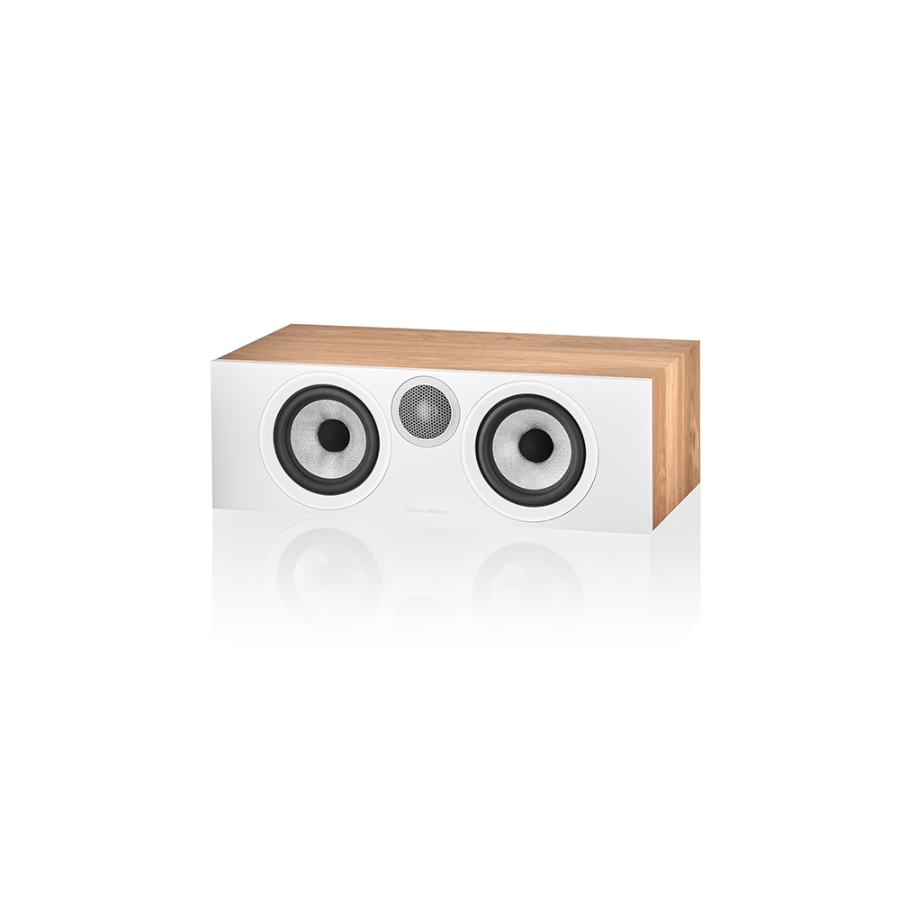

B&W HTM6S3 (FP44016) 603 S3 Centre-channel Speaker Oak

The HTM6 S3 is small enough to fit into convenient spaces in your home but mighty enough to partner with the 603 S3 tower speaker. It combines our all-new Titanium Dome™ tweeter with the powerful accuracy and transparency of twin Continuum™ bass/midrange cones. Celebrate clarity with the HTM6 S3 center channel speaker.

Specification
Description: 2-way vented-box system
Drive units: 1x ø25mm (1 in) Titanium Dome high-frequency, 2x ø130mm (5 in) Continuum cone bass / midrange
Frequency range: -6dB 42Hz - 33kHz
Frequency response (+/-3dB from reference axis): 72Hz - 28kHz ±3dB
Sensitivity (on axis at 2.83Vrms at 1m): 87dB
Harmonic distortion: 2nd and 3rd harmonics (90dB, 1m on axis), <1% 100Hz - 22kHz, <0.5% 120Hz - 12kHz
Nominal impedance: 8Ω (minimum 4.3Ω)
Recommended amplifier power: 30W - 120W into 8Ω on unclipped programme
Max. recommended cable impedance: 0.1Ω
Dimensions
Height: 160 mm (6.3 in) cabinet only
Width: 480 mm (18.9 in) cabinet only
Depth: 255 mm (10 in) cabinet only 283 mm (11.2 in) including grille and terminals
Net weight
Weight: 7.7kg (17.0lbs)
Finishes
Cabinet: Oak
Grille: Grey (White and Oak)
Warranty Info
Manufacturer's Warranty*: 5 Years
Faulty From New*:
(Within 28 Days Of Purchase)		 Return to AWE for assessment.
Please complete this online Returns Form

*Terms & Conditions:

For further information regarding AWE's returns procedures please see chapters 7 & 8 in our Terms & Conditions

Features

  • Decoupled Double Dome Titanium tweeter
  • Continuum™ cone bass/midrange
  • Flowport™
