Bowers & Wilkins CCM664SR 2 Way Dual Channel In-Ceiling Speaker (FP29610) Single Unit

Additional Information

Description Specification Downloads

CCM664SR: Performance Series

Our Performance Series delivers fantastic sound in an incredibly discreet package. These loudspeakers are engineered by the same team who creates the loudspeakers used in some of the world’s most advanced recording studios.

See nothing, hear everything

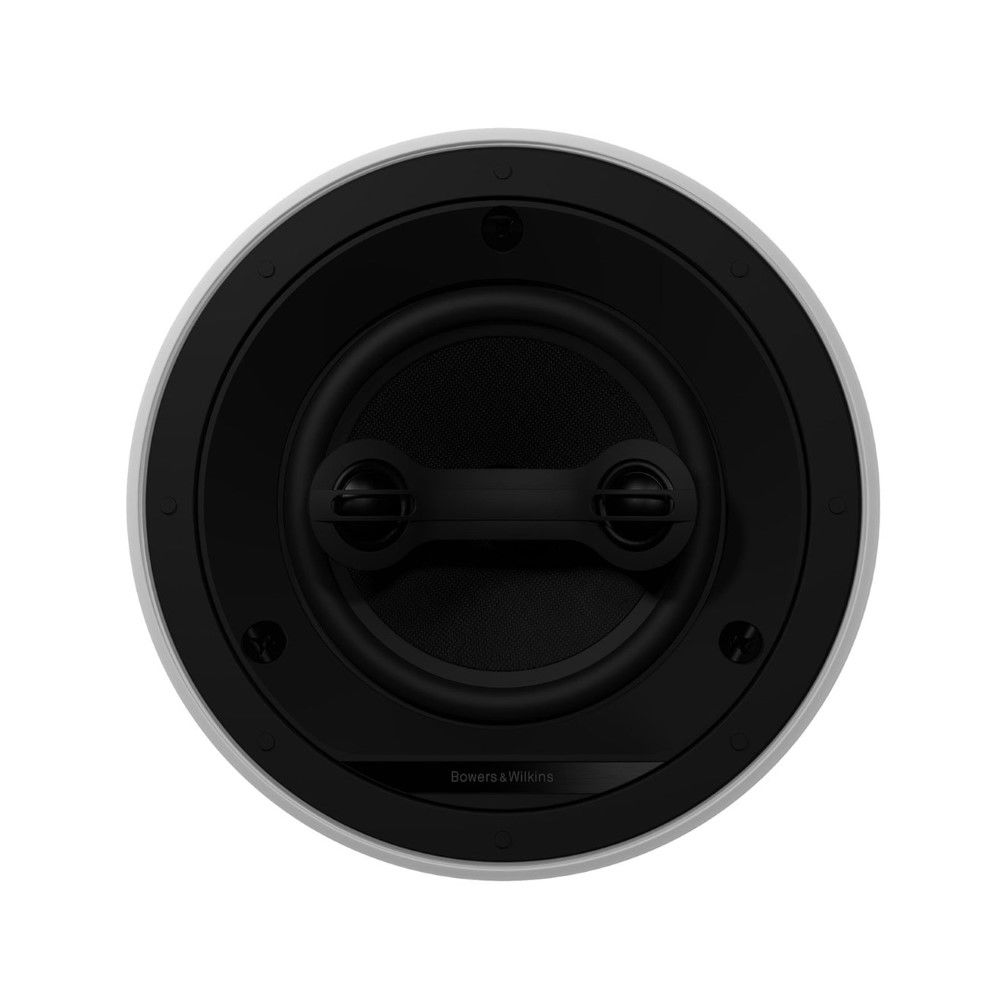

The CCM664SR is a dual, two-way ceiling speaker featuring a 150mm(6in) woven glass fibre cone bass/midrange driver and two offset soft dome tweeters. The twin voice coil bass/midrange driver and tweeters allow a stereo signal to be combined to facilitate the use of just one ceiling speaker in a single installation area without the loss of one audio channel. The CCM664SR also includes a two-position stereo/surround switch to instantly make the speaker very suitable to be used as a surround channel. Incorporating QuickDogs™ and plug-and-play functionality it is quick and easy to install.

Description: 2-way dual channel in-ceiling system
Drive Units: 2x ø20mm (1in) soft dome tweeter
1x ø150mm (6in) black glass fibre cone bass/midrange
Frequency Range (-6dB): 48Hz – 30kHz
Sensitivity: 88 dB (both channels driven)
Nominal Impedance: 8Ω
Power Handling: 25 - 80W per channel
Frame Diameter: 240mm
Cut-out Diameter: 202mm
Depth behind surface: 133mm
Protrusion: 4mm
Pre-Mounting Kit: PMKC6
Back Box: BB 6C
Manufacturer's Warranty*: 5 years
Faulty From New*: (Within 14 Days Of Purchase): Return to AWE for assessment.
Please complete this online Returns Form
After 14 Days Of Purchase*:
(Within The Manufacturer's Warranty):
Return to AWE for assessment.
Please complete this online Form
Post-Warranty Service and Repair: Please contact an authorised service centre: Sontec or Sound System Technology
*Terms & Conditions: For further information regarding AWE's returns procedures, please see chapters 7 & 8 in our Terms & Conditions

Features

  • Stereo sound from a single speaker
  • Great for smaller rooms
  • suitable for surround channel
