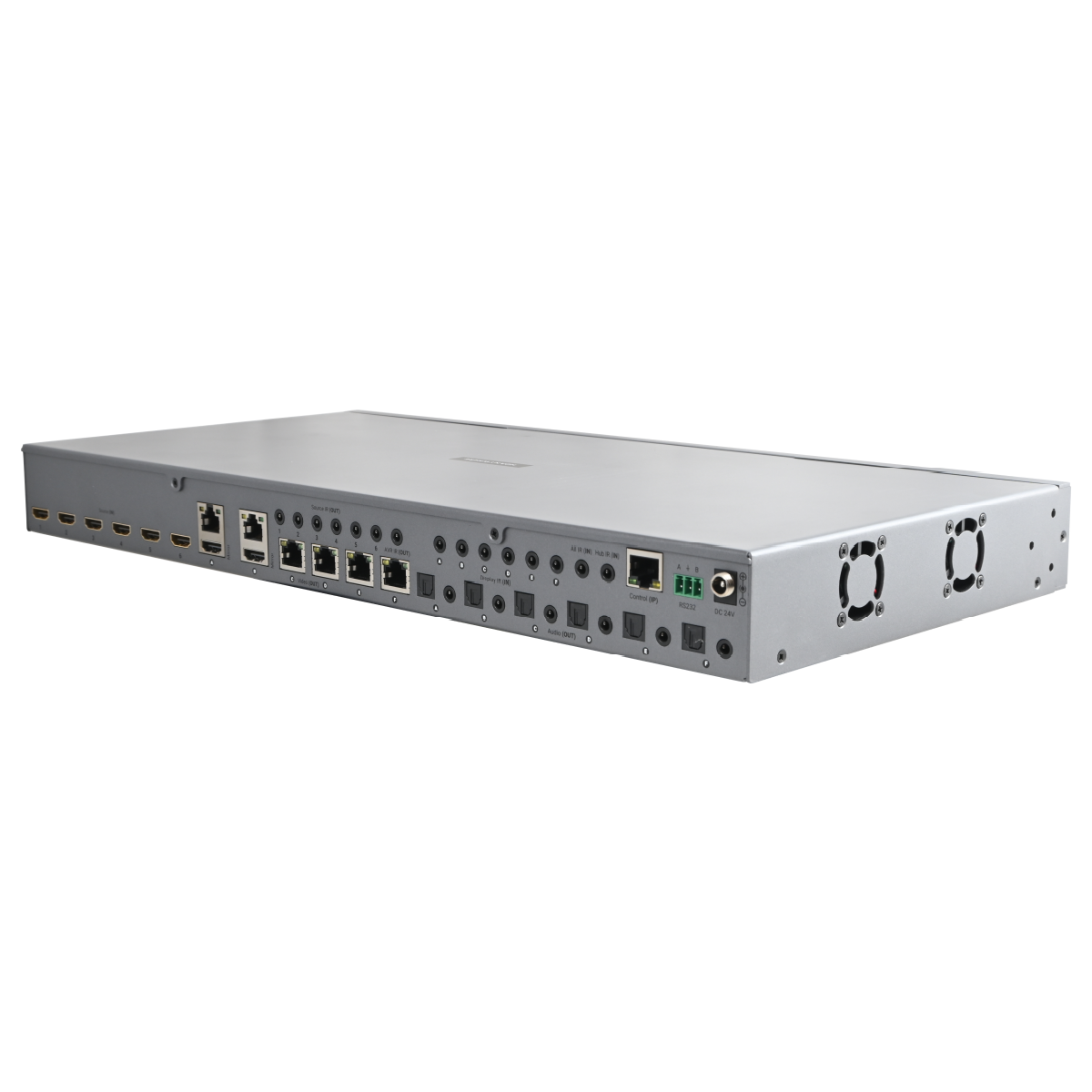

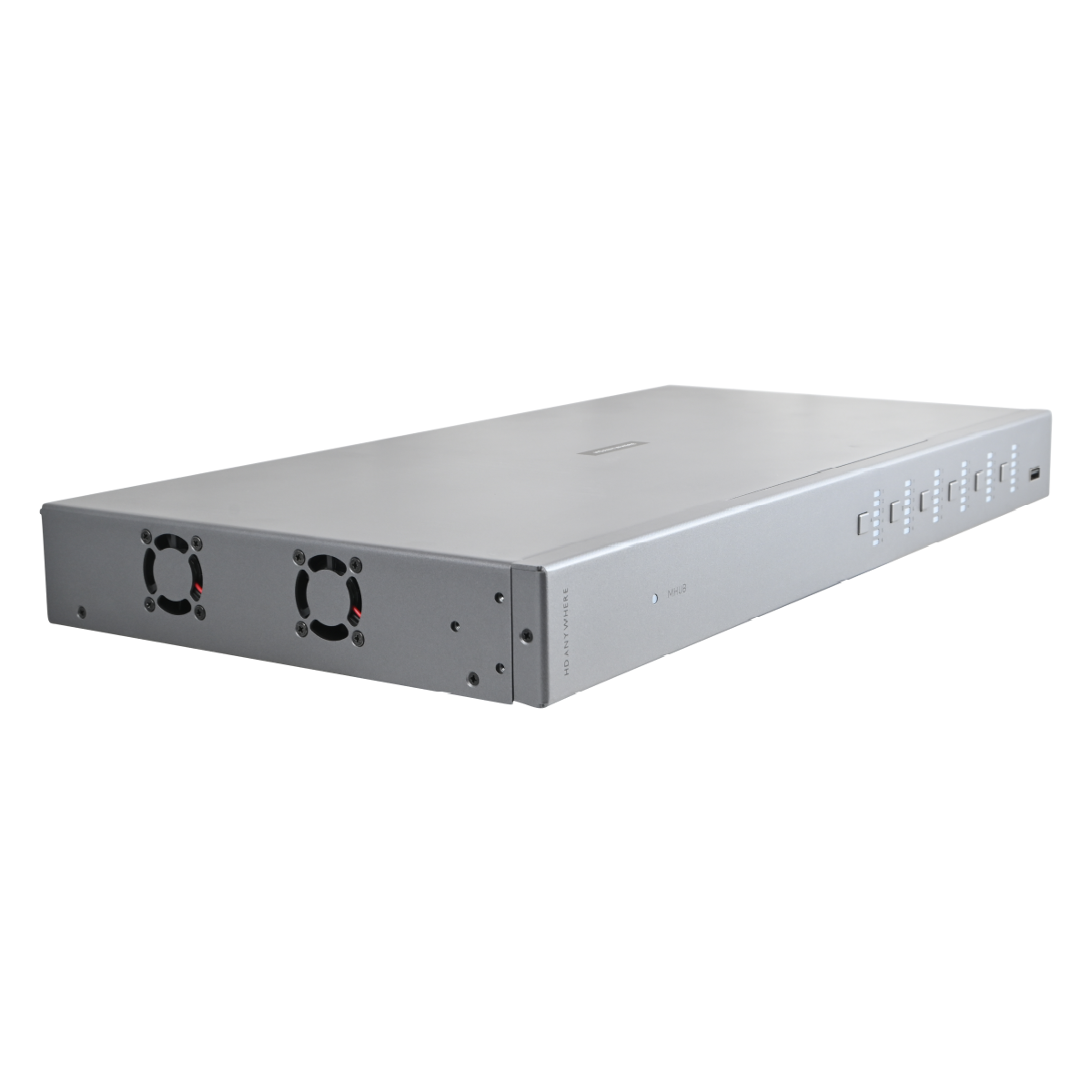

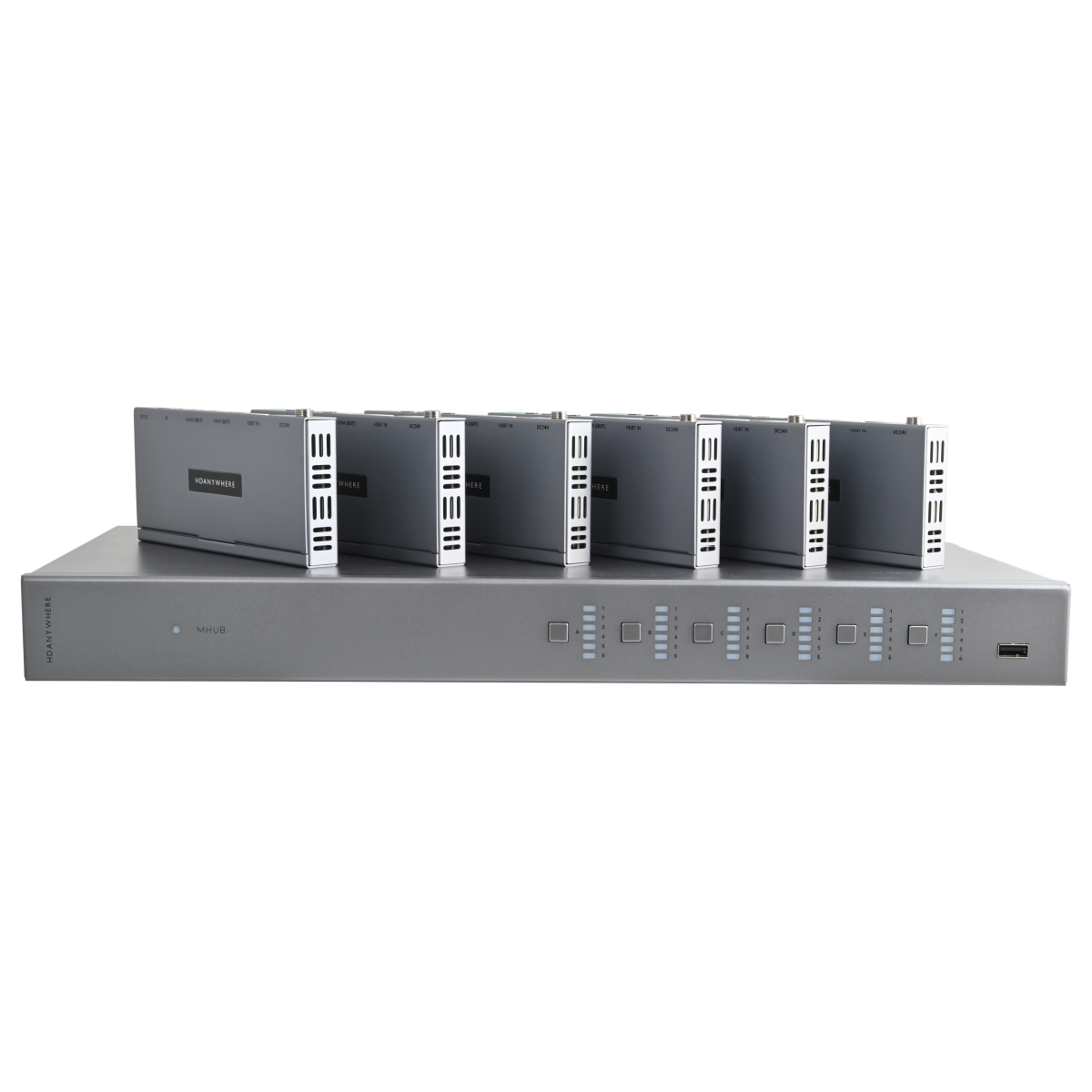

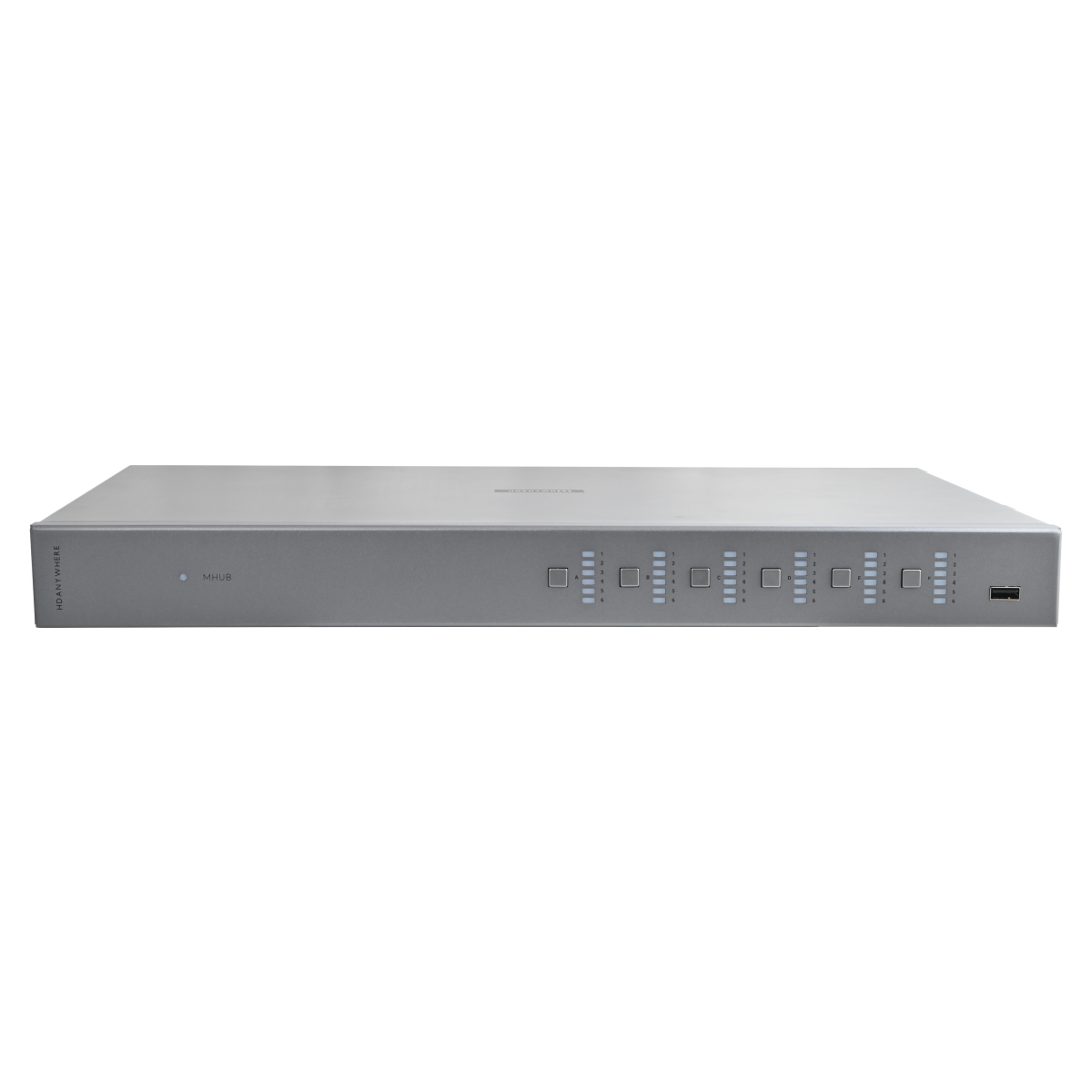

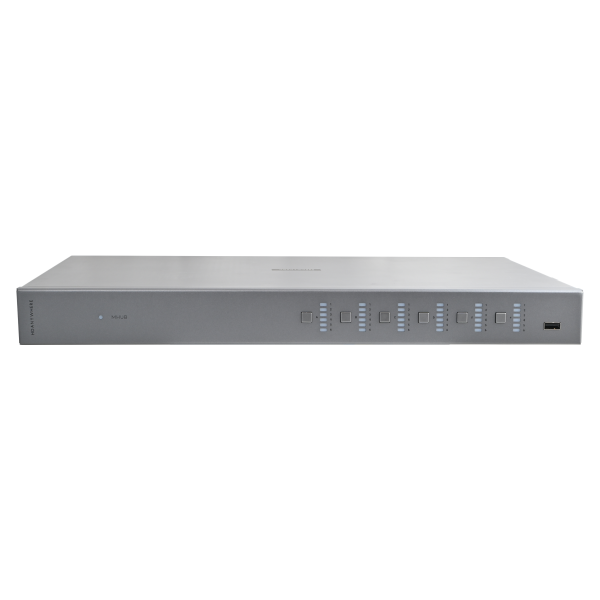

HDA MHUB66100A MHUB 6x6 100m (4K)

The new MHUB (4x4/6x6) 100A features trickle-down technology from our premium MHUB S and PRO systems and uses HDBaseT to provide uncompromised video performance and control capabilities. Supporting 100 metres transmission of 4K or 150 metres at 1080P range, this represents a 150% transmission distance increase, compared to older MHUB models.

Supports formats up to 4K@60Hz (4:4:4) HDR, HDR10, HDR10+, Dolby Vision* and HLG 100m range (4K), 150m range (1080p) Down scaling on all outputs Multi-channel digital audio support up to and including Dolby/Atmos and DTS:X HDMI Output Mirrors Video source or zone audio extraction modes Line-level (Pre-Out) volume control Adjustable output gain from -12dBu to +12dBu in 1dB steps Bi-directional IR Expanded IO capability (API pass through of IR and RS232 data) CEC Display control* Works with uControl™ Remote Remotely manageable

Specification

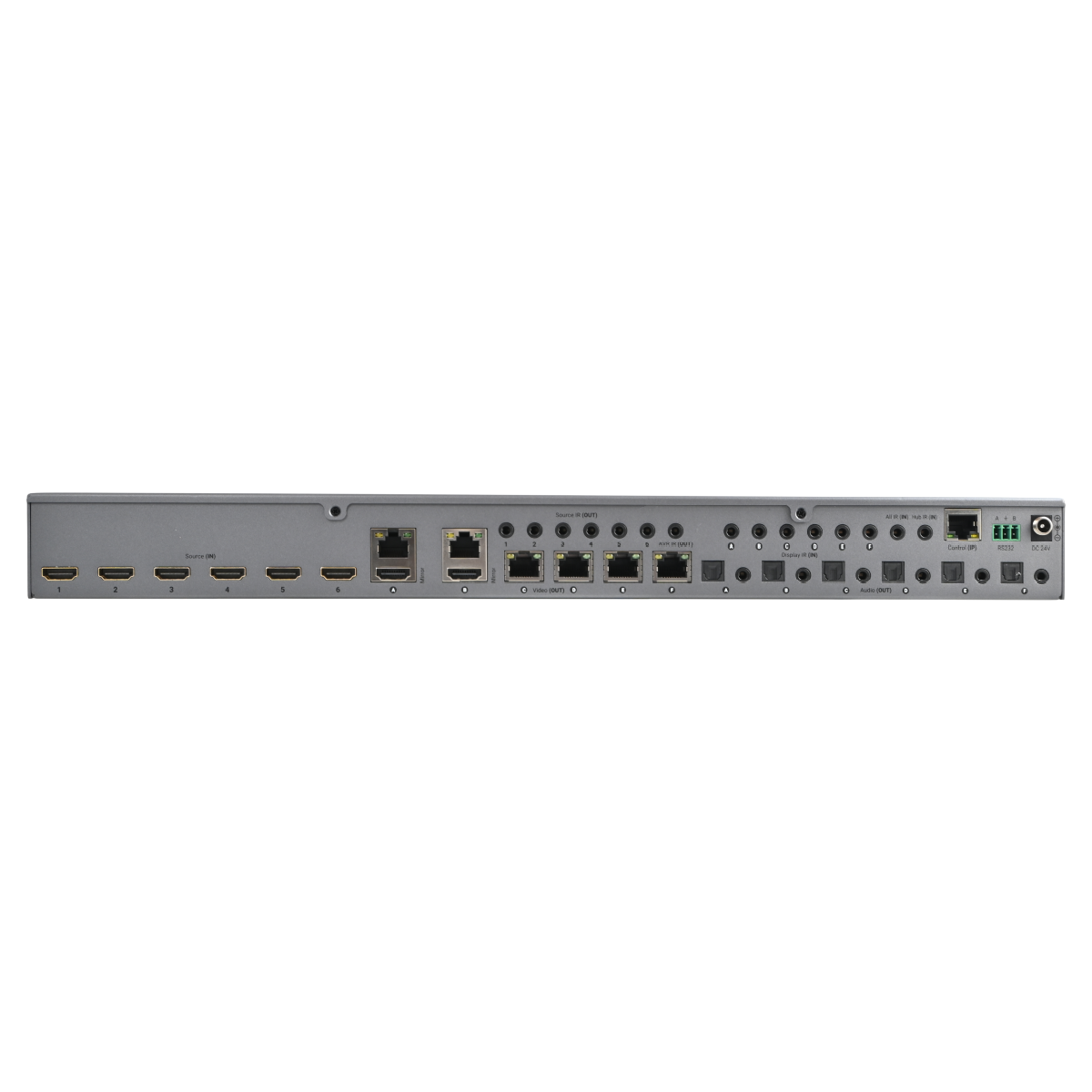

Video & audio IO: MHUB66100A, Inputs: x6 HDMI / Outputs: x6 HDBaseT, x2 HDMI (Mirror), x6 Optical, x6 3.5mm Stereo, MHUB44100A Inputs: x4 HDMI / Outputs: x4 HDBaseT, x1 HDMI (Mirror), x4 Optical, x4 3.5mm Stereo
Video bandwidth: 18Gbps
Video resolution: Up to 4K@60Hz (4:4:4) with HDR
Colour space: RGB, YCbCr 4:4:4, YUV 4:4:4, YCbCr 4:2:2/4:2:0
Colour depth: 8-bit, 10-bit, 12-bit (1080p@60Hz), 8-bit (4K@60Hz), 10-bit, 12-bit (4K@60Hz YCbCr 4:2:2/4:2:0)
HDR formats: HDR10, HDR10+, Dolby Vision, HLG**
Transmission distance: 1080p (150m / 492ft), 4K 100m / 394ft
HDMI audio formats: PCM 2.0 / 5.1 / 7.1, Dolby Digital / Plus / EX, Dolby True HD, DTS, DTS-EX, DTS-96 / 24, DTS High Res, DTS-HD Master Audio, DSD
Audio extraction: Optical: PCM 2.0, Dolby Digital, DTS 5.1 3.5mm Stereo: LPCM 2Ch
Stereo audio formats: PCM 2.0 44.1 / 48 / 88.2 / 96 / 176.4 / 192KHz, 16 / 20 / 24bit
Output gain (1dB steps): -12dBu — +12dBu
Max output level: -55dB — 0dB
Dimensions (W/D/H) mm: Chassis: 440 x 226 x 44
Weight (g): Chassis: 3025, Receiver: 126
Warranty: 2 Year Warranty +1 with HDA Cloud Registration. (Cloud Registration must be completed within 30 days of installation for the extended warranty period to be activated.)

Features

  • Supports formats up to 4K@60Hz (4:4:4)
  • Down scaling on all outputs
  • 100m range (4K), 150m range (1080p)
  • HDR, HDR10, HDR10+, Dolby Vision* and HLG
