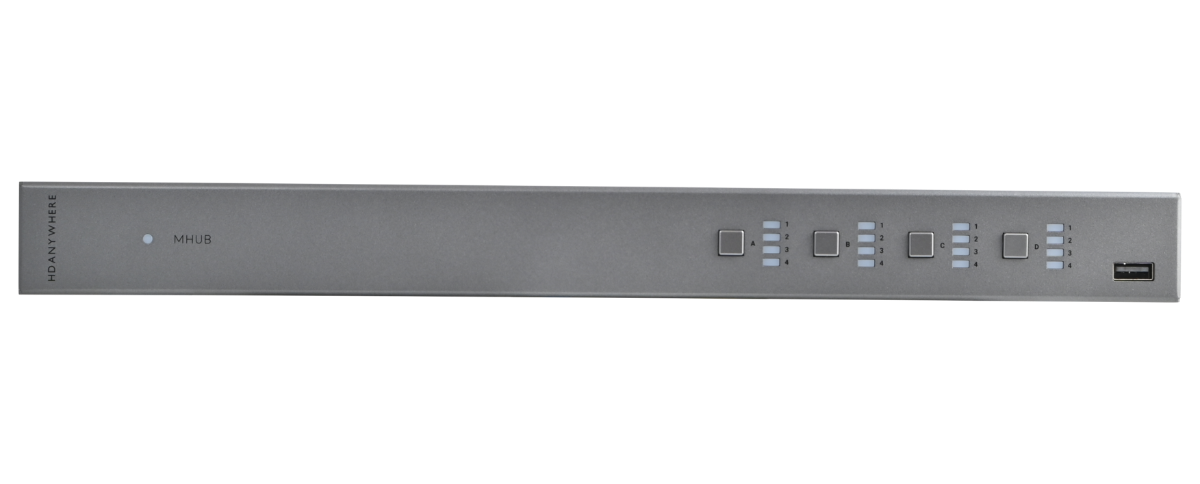

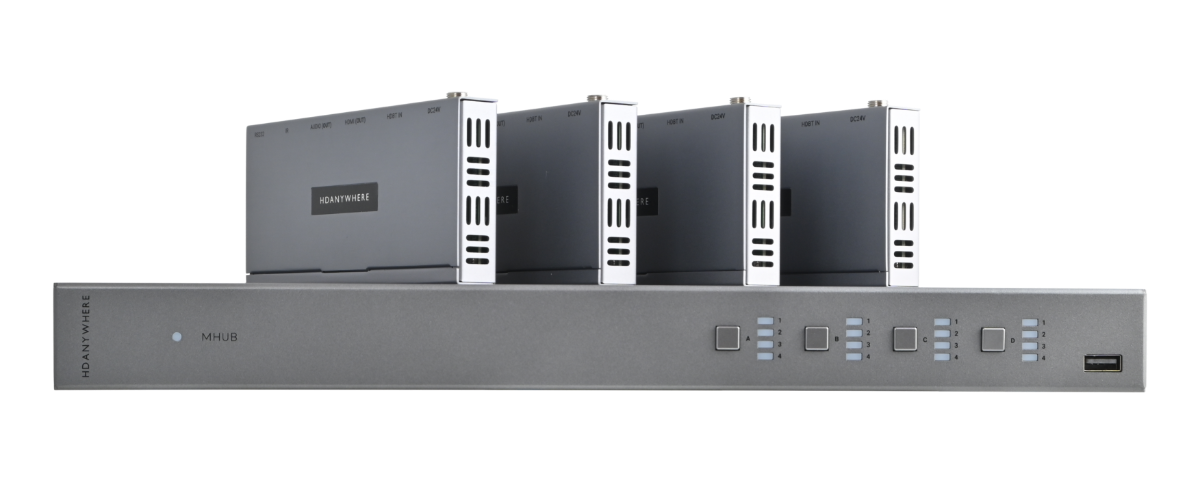

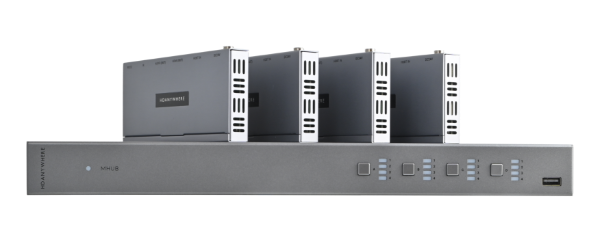

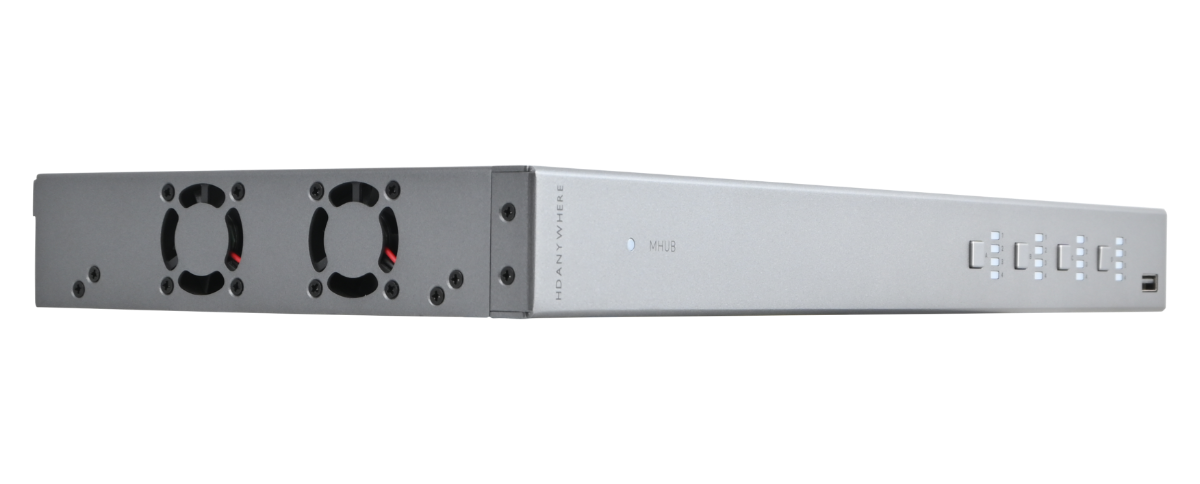

HDA MHUB44100A MHUB 4x4 100A

MHUB is a single-brand integrated smart home solution, which can include in-room remotes for midmarket luxury residential and light commercial projects. With ‘uControl inside’, HDA’s everyday smart home hubs are cleverly disguised as an AV Matrix.

The uControl Processor inside HDANYWHERE’s newest 4x4 MHUB transforms it into an integrated smart home hub for managing media, music and mood, room-to-room with the groundbreaking uControl Smart Remote or app, in up to 6 zones.

Specification

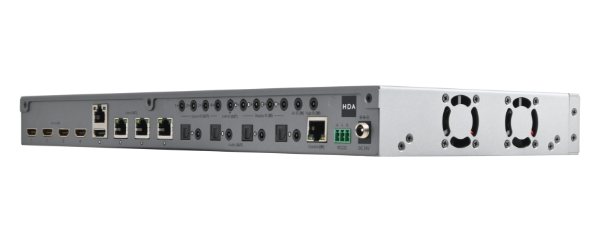

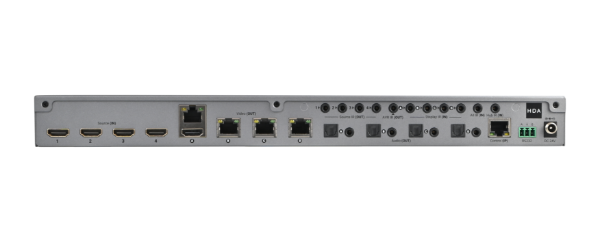

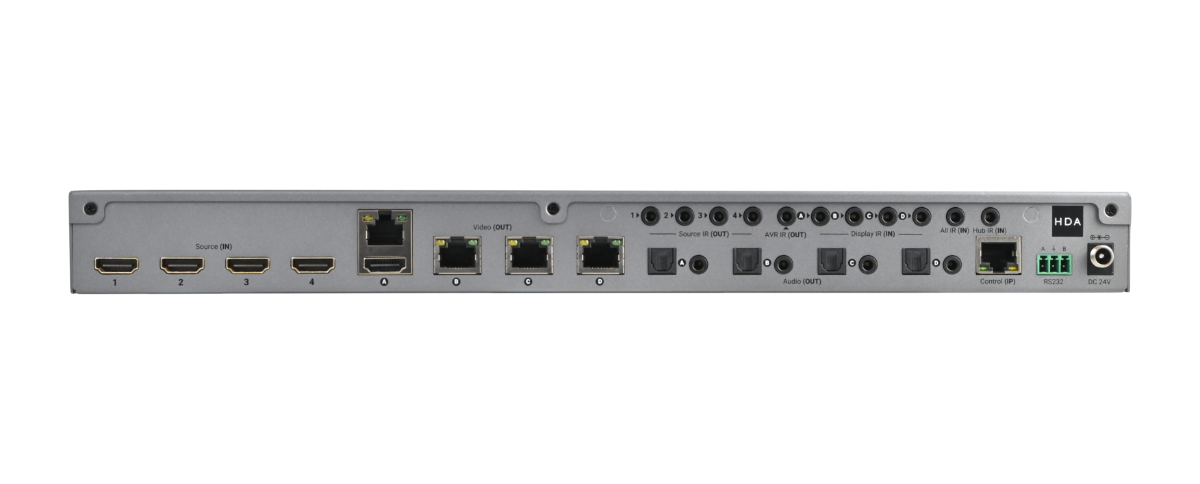

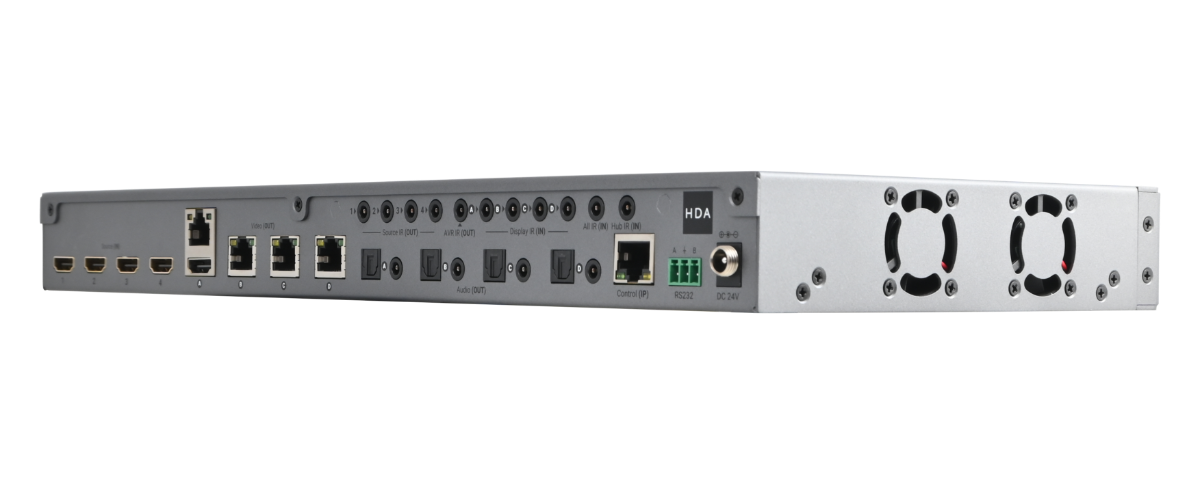

Video & audio IO: MHUB44100A Inputs: x4 HDMI / Outputs: x4 HDBaseT, x1 HDMI (Mirror), x4 Optical, x4 3.5mm Stereo
Video bandwidth: 18Gbps
Video resolution: Up to 4K@60Hz (4:4:4) with HDR
Colour space: RGB, YCbCr 4:4:4, YUV 4:4:4, YCbCr 4:2:2/4:2:0
Colour depth: 8-bit, 10-bit, 12-bit (1080p@60Hz), 8-bit (4K@60Hz), 10-bit, 12-bit (4K@60Hz YCbCr 4:2:2/4:2:0)
HDR formats: HDR10, HDR10+, Dolby Vision, HLG*
Transmission distance: 1080p (150m / 492ft), 4K 100m / 394ft
HDMI audio formats: PCM 2.0 / 5.1 / 7.1, Dolby Digital / Plus / EX, Dolby True HD, DTS, DTS-EX, DTS-96 / 24, DTS High Res, DTS-HD Master Audio, DSD
Audio extraction: Optical: PCM 2.0, Dolby Digital, DTS 5.1 3.5mm Stereo: LPCM 2Ch
Stereo audio formats: PCM 2.0 44.1 / 48 / 88.2 / 96 / 176.4 / 192KHz, 16 / 20 / 24bit
Output gain (1dB steps): -12dBu — +12dBu
Max output level: -55dB — 0dB
Infrared: 20Khz - 60Khz
ESD protection: ±8kV (Air-gap discharge), ±4kV (Contact discharge)
Power consumption: 55.2W (Maximum)
Power supply: 24V 2.7A, Display receiver: 24V PoC (Power over Cat)
Operating temperature: 0°C - 40°C / 32°F - 104°F
Storage temperature: -20°C - 60°C / -4°F - 140°F
Relative humidity: 20 - 90% (Non-condensing)
Housing: Chassis: Steel and Aluminium, Display receiver: Aluminium
Colour: Grey (Carbonite)
Dimensions (W/D/H) mm: Chassis: 372 x 165 x 36
Weight (g): Chassis: 1631, Receiver: 126
Warranty Info
Manufacturer's Warranty*: 3 Years, 5 Years by Cloud Registration, (Cloud Registration must be completed within 30 days of installation for the extended warranty period to be activated).
Faulty From New*:
(Within 28 Days Of Purchase)		 Return to AWE for assessment.
Please complete this online Returns Form

*Terms & Conditions:

For further information regarding AWE's returns procedures please see chapters 7 & 8 in our Terms & Conditions

Features

  • Supports formats up to 4K@60Hz (4:4:4)
  • HDR, HDR10, HDR10+, Dolby Vision* and HLG
  • Down scaling on all outputs
  • Remotely manageable
  • Video source or zone audio extraction modes
  • Multi-channel digital audio support up to and including Dolby/Atmos and DTS:X
