HDA ZP5 uControl Zone Processor

Additional Information

Description Specification

HDA ZP5 uControl zone processor, IO expander for uControl

The uControl Zone Processor (ZP5) provides all the benefits of the uControl service without requiring MHUB. Designed to work stand alone or as part of an expansion to any MHUB system, or other brand, the ZP5 brings a rich array of control options in to the hands of the integrator offering a simple and elegant AV control option to old and new installs.

Specification

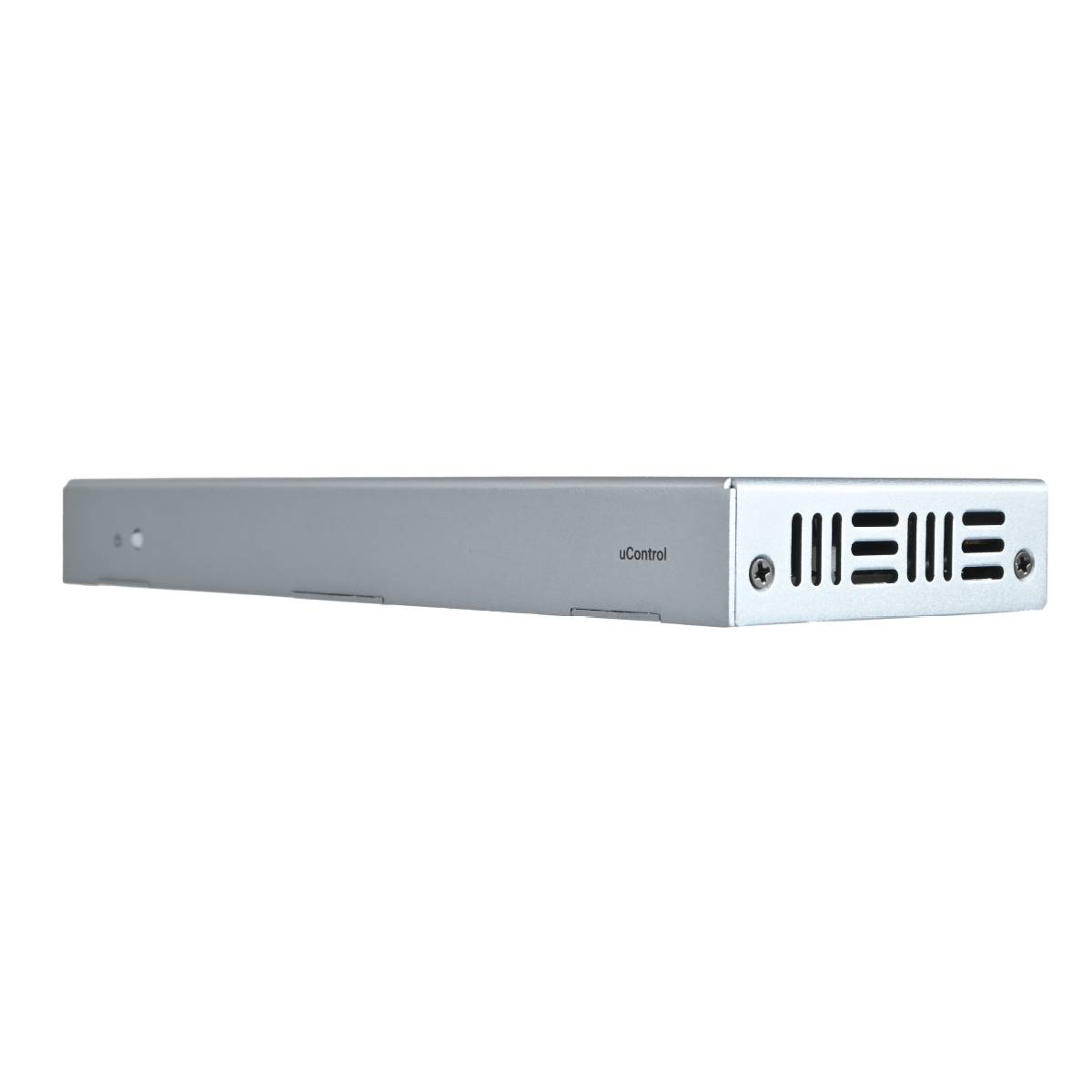

Form factor: Lightweight slender aluminum enclosure

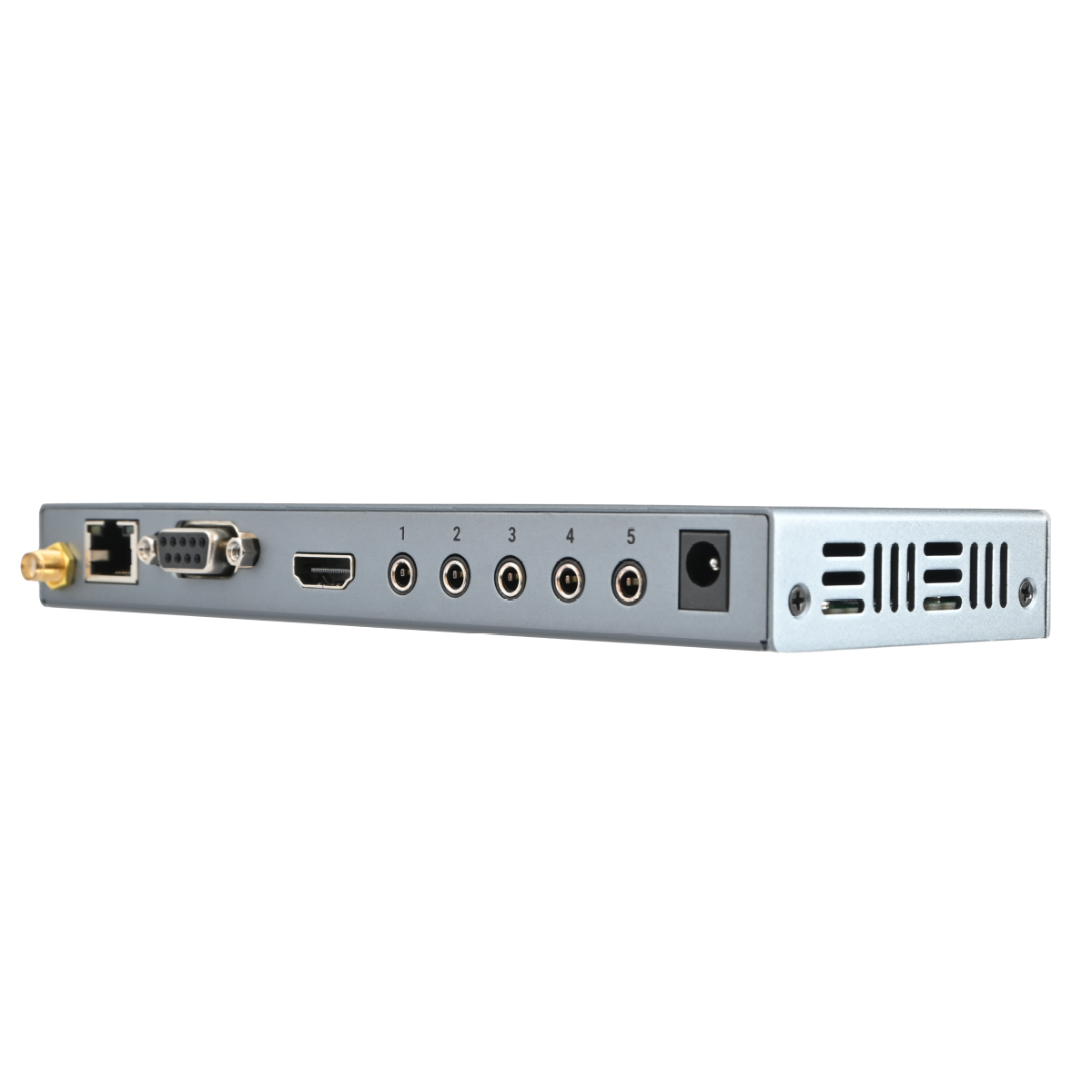

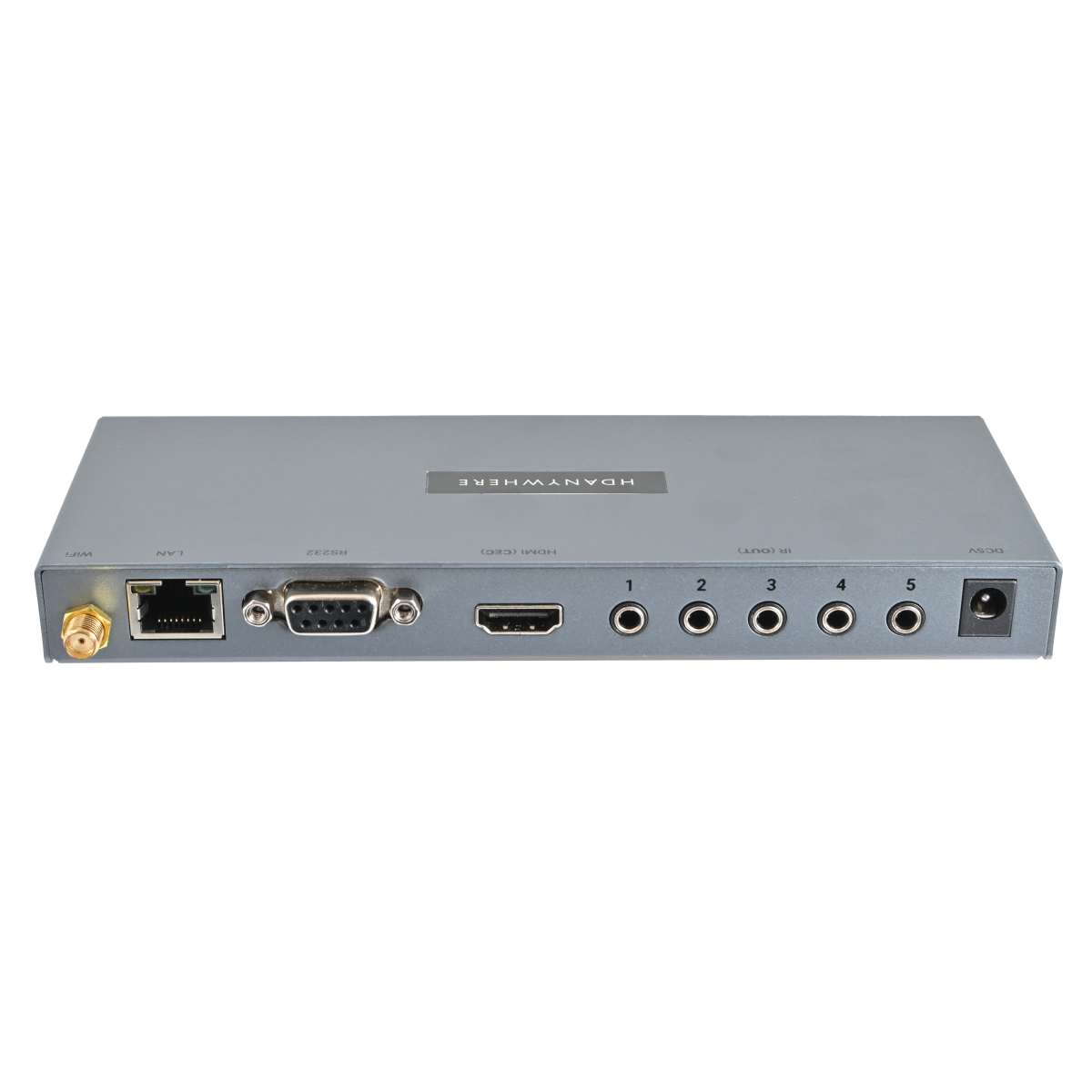

Control Outputs: 1 HDMI (CEC), 1 RS232, 5 IR
Comms Method : IP (API), uControl, Expanded IO drivers (TBC)
ESD protection: ± 8kV (air-gap discharge) ± 4kV (contact discharge)
Device / Package weight : 195 / 1100 g
Dimensions (W/D/H): 176 / 68.5 / 20mm
Power: DC 5V/1A (US/EU standards, CE/FCC/UL certified)
Operating temperature:
Storage temperature : -20°C ~ 60°C / -4°F ~ 140°F
Relative humidity: 20~90 % RH (non-condensing)
Power consumption 2W
Warranty: 2 years

Features

  • x1 HDMI CEC control port
  • x1 two-way RS232 serial comms port
  • x5 IR outputs
  • Access to uControl service including IR database
  • Instant Alexa Voice control
  • WiFi enabled for concealed or hard to reach areas
