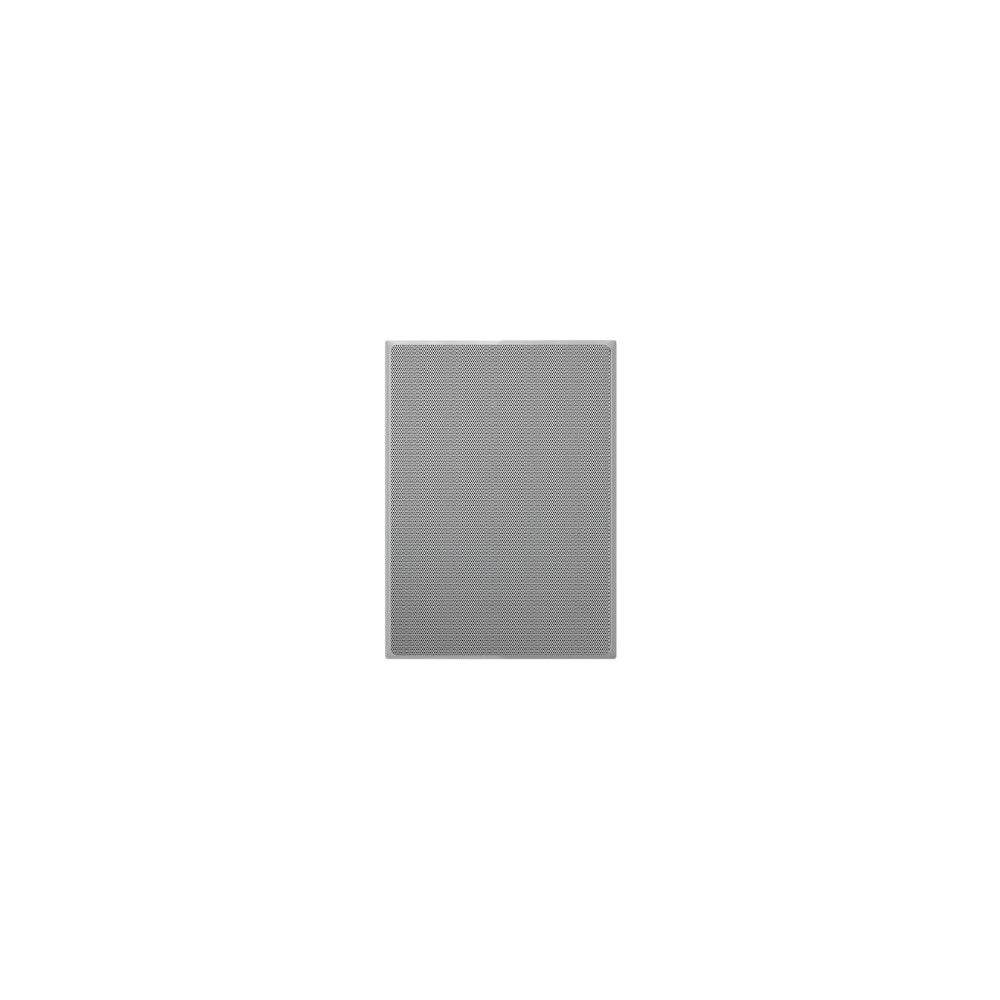

Bowers & Wilkins CWM652 600 Series 5" In Wall Speaker (FP29653) Pair

Additional Information

Description

Specification

Downloads

CWM652: In-Wall Performance Series Pair

Performance Series
For situations when you want near-invisible loudspeakers but refuse to compromise on sound quality. CI 800 Series Diamond and CI 700 Series models feature matching performance levels to their in-room counterparts in the 800 Series Diamond and 700 Series.

See nothing, hear everything

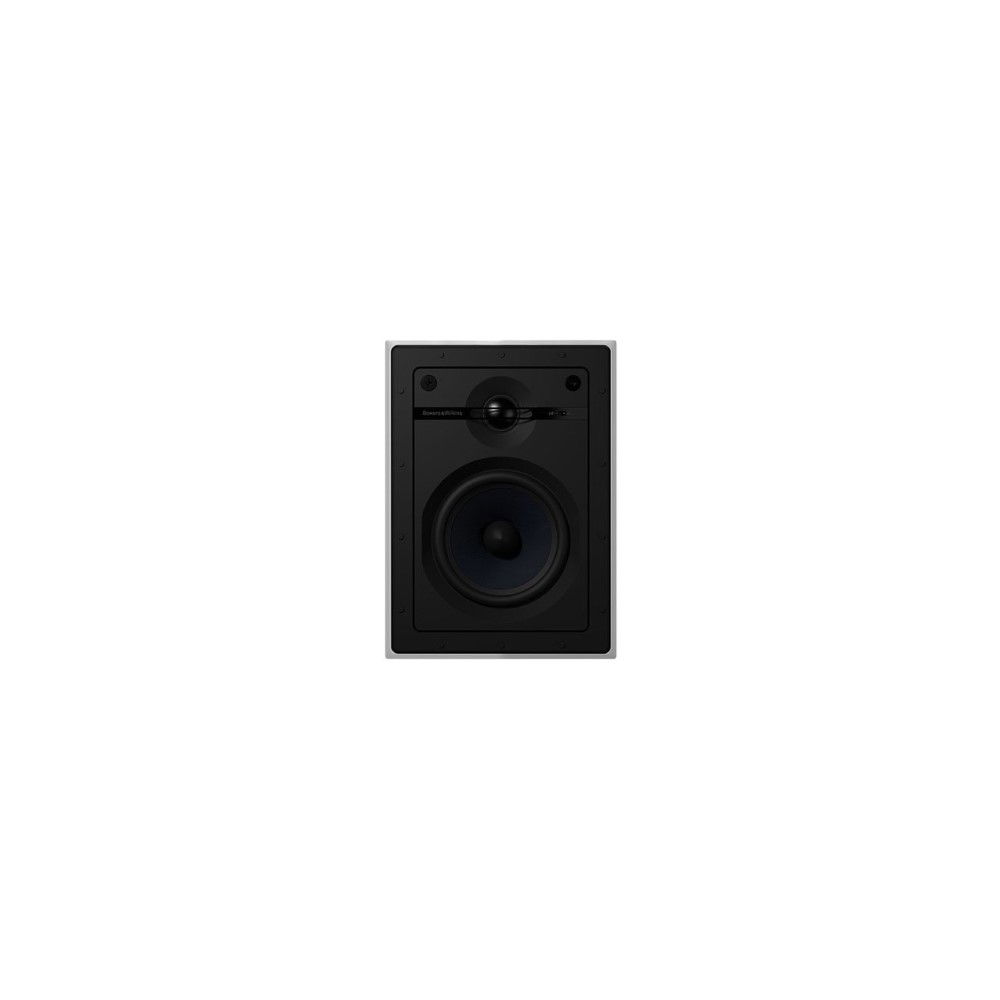

The CWM652 features a 130mm (5in) blue Kevlar® bass/midrange driver housed in a die-cast chassis which provides the extra rigidity to provide a cleaner, faster bass. Its aluminium tweeter incorporates a Nautilus™ tube to absorb unwanted sonic radiation. The CWM652 also utilises a three-position high frequency switch to fine tune the sound. The incredibly easy to install frame includes QuickDogs™ and plug-and-play functionality

Description:	2-way in-wall system
Drive Units:	1x ø25mm (1in) Nautilus™ tube loaded aluminium dome tweeter 1x ø130mm (5in) blue Kevlar® cone bass/midrange
Frequency Range (-6dB):	54Hz – 50kHz
Maximum Amplifier Power:	25 - 130W
Sensitivity:	86dB
Nominal impedance:	8Ω (minimum 4.5Ω)
Frame Height:	264mm
Frame Width:	191mm
Cut-out height:	228mm
Cut-out width:	153mm
Depth behind surface:	95mm
Protrusion:	4mm
Pre-Mounting Kit:	PMKW5
Back Box:	BB6W
Manufacturer's Warranty*:	5 years
Faulty From New*: (Within 14 Days Of Purchase):	Return to AWE for assessment. Please complete this online Returns Form
After 14 Days Of Purchase*: (Within The Manufacturer's Warranty):	Return to AWE for assessment. Please complete this online Form
Post-Warranty Service and Repair:	Please contact an authorised service centre: Sontec or Sound System Technology
*Terms & Conditions:	For further information regarding AWE's returns procedures, please see chapters 7 & 8 in our Terms & Conditions
