Rotel C8+ Rack Mount 8 Channel Power Amp Black

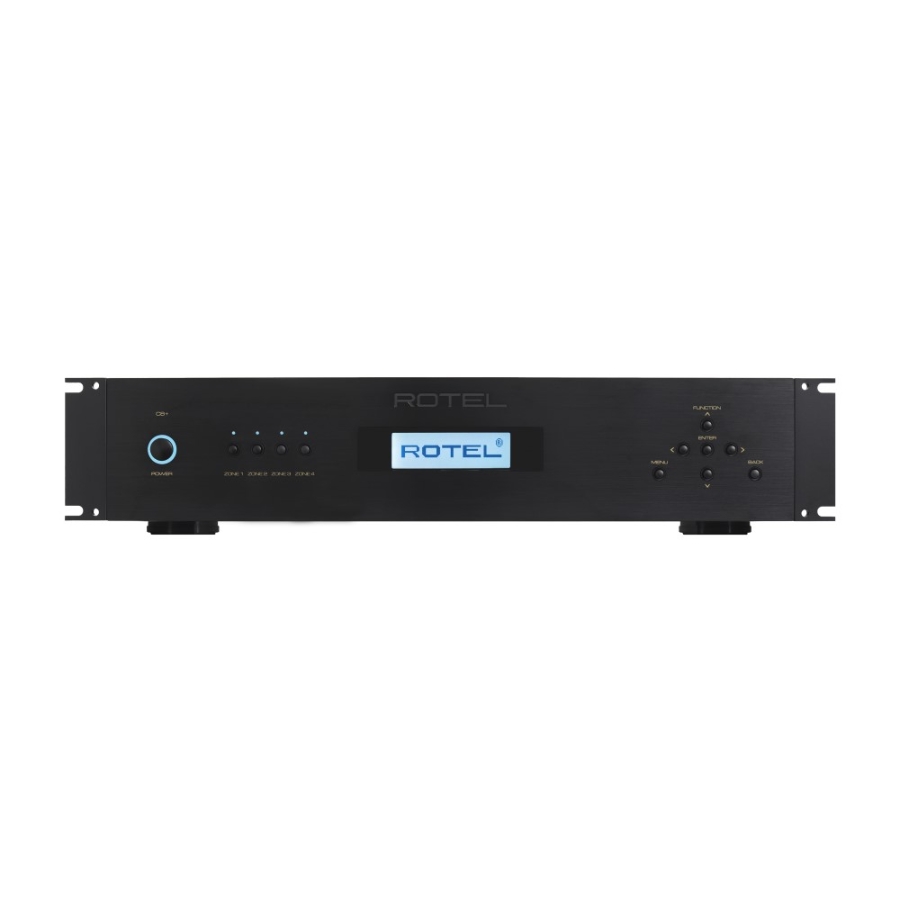

C8+_Front
C8+_Back
C8+_Internal

Additional Information

Description Specification Downloads

Rotel C8+ Rack mount 8 channel power amp, black

Performance meets efficiency in Rotel’s C8+ Class AB Custom Installation Amplifier delivering on our 60-Year heritage of Performance, Quality and Value. The C8+ drives 8 channels of premium audio at 150 Watts per channel, all channels driven into 4-ohm speakers utilizing Rotel’s proprietary amplification technology.

The oversized in-house manufactured toroidal transformer drives thirty-two high current output transistor devices for effortless, deep, controlled bass energy. Outputs can be bridged providing 4 channels of 300 Watts per channel, capable of driving even the most demanding loudspeakers and exceptional audio clarity in critical listening zones.

For ultimate installation flexibility the C8+ includes 4 Analog, 2 Coaxial and 2 Optical (24-bit/192kHz) inputs available to all Zones through internal matrix-switching with a Priority Zone PA Override feature allowing critical announcements to be broadcasts to all Zones. The front panel display and user controls provide selection of the matrixed source input and independent volume, bass and treble settings for each zone ensuring the C8+ can be tuned to the speaker and room characteristics. Device setup is also available via the front panel for easy system configuration when mounted in remote locations.

Speaker outputs utilize detachable Phoenix connectors for pre-wire installations with secure-locking screw terminals reducing service calls. Control system integration is available via IP and RS232 interfaces and the 12-Volt trigger input offers simplified power control.

The custom engineered 2U height chassis does not require top or bottom clearance spacing for ultra-efficient rack mounting. All rack mounting hardware is included.

The C8+ is available in black only.

Maximum Power Output: 150 watts/ch (8 channels driven, 4Ω)
Continuous Power Output: 100 watts/ch (8 channels driven, 8Ω)
Bridged Power Output: 300 watts/ch (4 channels driven, 4Ω)
Total Harmonic Distortion: <0.1%
Intermodulation Distortion:
(60Hz : 7kHz, 4:1)		 <0.1%
Frequency Response:
(line level inputs)		 10Hz - 100kHz, 0 ± 0.5dB
Tone Control (Bass): ± 10dB at 100Hz
Tone Control (Treble): ± 10dB at 10kHz
Damping Factor:
(20Hz - 20kHz, 8Ω)		 80
Input Sensitivity / Impedance (RCA): 0.43V / 31kΩ
Input Overload (RCA): 2.8V
Signal to Noise Ratio (IHF A-weighted): 100dB
Crosstalk / Separation >50dB
Digital to Analog Converters: Texas Instruments
Frequency Response (digital): 10Hz - 20kHz (0 ± 0.5dB)
Signal to Noise Ratio (IHF A-weighted): 102dB
Input Sensitivity / Impedance: 0dBfs / 75Ω
Coaxial / Optical Digital Signals: SPDIF LPCM (up to 24-bit / 192k Hz)
Power Requirements: 230V, 50Hz
Power Consumption: 980W
Standby Power Consumption (normal): <0.5W
Standby Power Consumption (network standby): <2W
BTU (4 Ω, 1/8th power): 2744 BTU/h
Dimensions (W x H x D): 430 x 97 x 414 mm
Front Panel Height: 2U / 88.1 mm
Weight (net): 18.35kg
Finish: Black
Manufacturer's Warranty*: 2 years RTB
Faulty From New*: (Within 14 Days Of Purchase): Return to AWE for assessment.
Please complete this online Returns Form
After 14 Days Of Purchase*:
(Within The Manufacturer's Warranty):		 Return to AWE for assessment.
Please complete this online Form
Post-Warranty Service and Repair: The return / repair is managed by the authorised Service Centre
*Terms & Conditions: For further information regarding AWE's returns procedures, please see chapters 7 & 8 in our Terms & Conditions

Features

  • 8 x 150 Watts of robust Class AB power @ 4 Ohms
  • 4 individual 24-bit/192kHz Digital to Analogue Converters
  • Custom engineered toroidal transformer
  • 12 volt trigger input
  • Rack ears included
