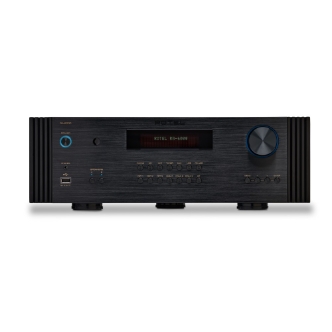

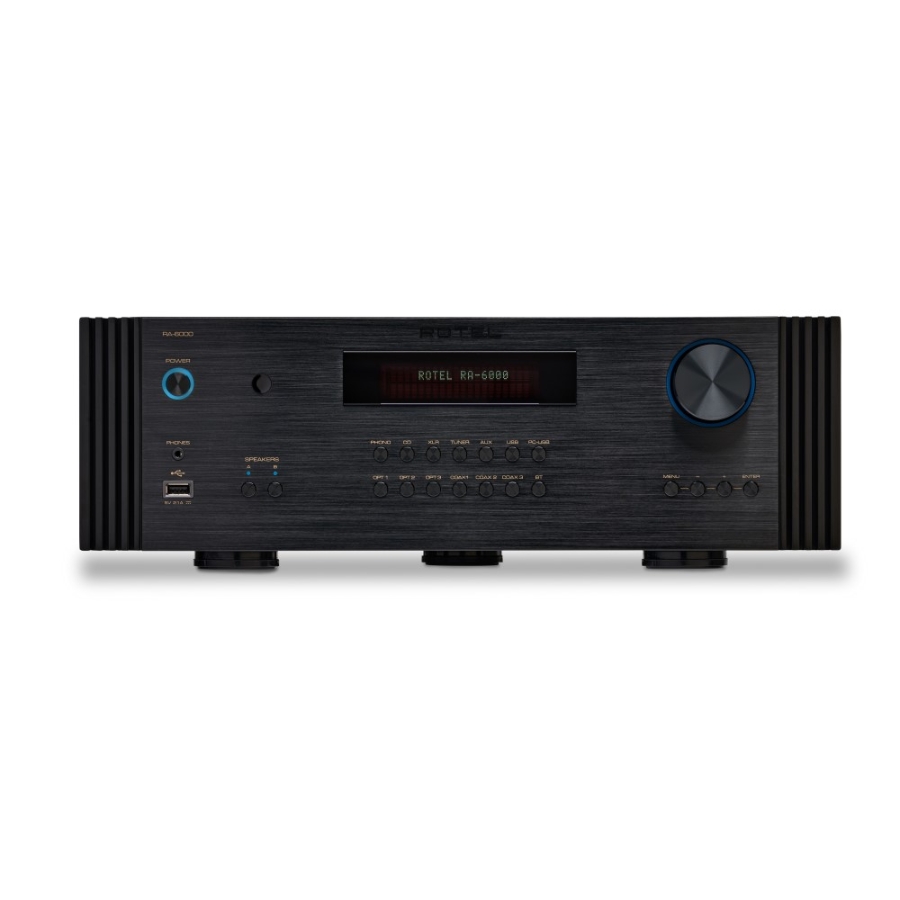

Low--Rotel - RA-6000 Black
Low--Rotel - RA-6000 Angle4 Black
Low--Rotel - RA-6000 Angle2 with remote Black
Low--Rotel - RA-6000 Back

Additional Information

Description Specification Downloads

Rotel RA-6000 (FR01265) Integrated Amplifier, Black

The Rotel Diamond Series RA-6000 Integrated Amplifier celebrates 60-Years of heritage and tradition delivering performance, passion, and value synonymous with the brand’s iconic Japanese heritage. The RA-6000 supports an exceptional array of modern and legacy sources with RCA (3), XLR, Moving Magnet Phono stage for vinyl fans, aptXTM HD and AAC wireless Bluetooth, Coaxial (3), Optical (3), and asynchronous PC-USB inputs.

Conveniently packaged in the elegant Diamond Series industrial design the RA-6000 delivers 350 watts of robust, Class AB output power into 4 ohm speakers. An in-house manufactured toroidal transformer feeds dedicated power to all critical circuits utilizing high efficiency, low ESR slit-foil smoothing capacitors delivering an abundance of ripple free, reserve power and current with exceptional control of rich, deep bass energy.

Physical and electrical isolation techniques are utilized in the digital and high gain amplifier circuits reducing noise in the highly sensitive analog stages further lowering the noise floor and reducing distortion.

Digital sources are processed via a premium 32-bit/384kHz Texas Instruments Digital-Analog converter extracting the finest of details portrayed on an immersive sound stage. Coaxial and Optical inputs support 24-bit/192kHz PCM audio. The PC-USB input renders up to 32-bit/384kHz high resolution music files, unfolds and renders MQA and MQA Studio, and is fully certified Roon Tested for the highest compatibility with Roon software.

Front panel controls, a back-lit IR remote control and 2-line display provide intuitive operation of the unit.

Ethernet, RS232,12V trigger and external remote input ensure simplified integration with all popular control systems.

Maximum Power Output: 350 watts/ch (4 ohms)
Continuous Power Output: 200 watts/ch (8 ohms)
Total Harmonic Distortion : < 0.0075%
Intermodulation Distortion (60 Hz : 7kHz, 4:1): < 0.03%
Frequency Response: Phono Input: 20 Hz - 20k Hz, 0 ± 0.5 dB
Line Level Inputs: 10 Hz - 100k Hz, 0 ± 0.5 dB
Damping Factor:
(20 Hz - 20 kHz, 8 ohms)		 600
Input Sensitivity / Impedance: Phono Input (MM): 5.2 mV / 47k ohms
Line Level Inputs (RCA) 340 mV / 5.6k ohms
Line Level Inputs (XLR) 540 mV / 100k ohms
Input Overload: Phono Input (MM): 52 mV
Line Level Inputs (RCA): 3.5 V
Line Level Inputs (XLR): 4.5 V
Preamplifier Output / Impedance: 1.9 V / 100 ohms
Signal to Noise Ratio:
(IHF A-weighted)		 Phono Input (MM): 80 dB
Line Level Inputs: 103 dB
Digital to Analog Converters: Texas Instruments
Frequency Response:
(digital)		 10 Hz - 90k Hz (0 ± 2 dB, Max)
Signal to Noise Ratio
(digital, IHF A-weighted):		 102 dB
Input Sensitivity / Impedance : 0 dBfs / 75 ohms
Preamplifier Output Level : 1.43 V (at -20 dB)
Coaxial / Optical Digital Signals: SPDIF LPCM
(up to 24-bit / 192k Hz)
PC-USB: USB Audio Class 2.0 (up to 32-bit / 384k Hz - driver installation required)
Support MQA and MQA Studio (up to 24-bit / 384k Hz )
Roon Tested
Power Requirements: 230 V, 50 Hz
Power Consumption: 500W
Standby Power Consumption: Normal: <0.5 watts
Network Standby <2 watts
BTU
(4 ohms, 1/8th power):		 1239 BTU/h
Dimensions (W x H x D): 431 x 144 x 425 mm
Front Panel Height: 3U / 132.6 mm / 5 1/4"
Weight (net): 18.81 kg / 41.47 lbs.
Finish: Black
Manufacturer's Warranty*: 2 Years RTB
Faulty From New*: (Within 14 Days Of Purchase): Return to AWE for assessment.
Please complete this online Returns Form
After 14 Days Of Purchase*:
(Within The Manufacturer's Warranty):		 Return to AWE for assessment.
Please complete this online Form
Post-Warranty Service and Repair: The return / repair is managed by the authorised Service Centre
*Terms & Conditions: For further information regarding AWE's returns procedures, please see chapters 7 & 8 in our Terms & Conditions

Features

  • 2 x 350 Watts of robust Class AB power, 4 Ohms
  • Wireless aptX™ HD and AAC Bluetooth
  • Texas Instruments premium 32-bit/384kHz Digital to Analog Converter
  • Balanced XLR inputs
  • Supports MQA and MQA Studio
  • Certified Roon Tested
