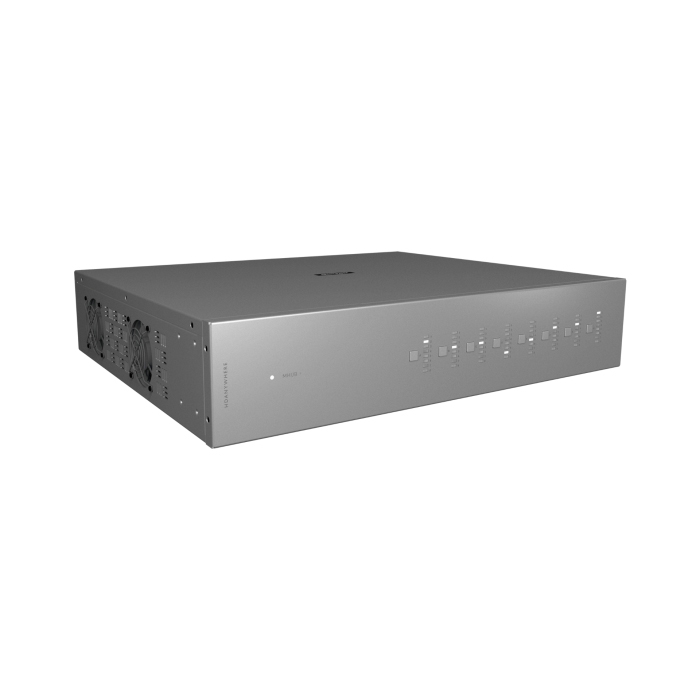

HDA MHUB-S (8+8x8) The stackable matrix

End of Line

MHUB S is our solution for bigger projects. With up to 32 zones of video and control included, MHUB S is cheaper and easier to install than AV over IP.

Supporting 100m of full-fat 4K range and no need for a control system, there's finally an alternative to AV over IP.

Easier than AV over IP.
Burn less calories thinking about your video distribution solution and spend more time building it.

Your time is important. A project may involve the procurement of hardware, infrastructure, control and installation, this takes time and effort. MHUB S and a Zone Processor (if you're stacking systems) is 2 SKUs and everything needed is included inside the box. Building a 8x16, 8x24 or 8x32 system is the same difficulty as setting up a single MHUB.

Up to 50% cheaper.
If your project has less than 32 screens then MHUB S offers exceptional value for money compared with other methods of distribution because there's no requirement for a switch and control is included.

Form Factor 2U Rackmountable
Inputs x outputs: (x8) HDMI Inputs / (x8) HDMI Input Mirrors, (x8) Digital Coax, (x8) 3.5mm Stereo Jack / (x2) HDBaseT + HDMI Outputs, (x6) HDBaseT Outputs
Power consumption: 30W (max) 0.5W (standby)
Video bandwidth: HHDMI backplane 594MHz clock / 18Gbps data HDBT 340MHz clock / 10.2Gbps data
ESD protection : ± 8kV (air-gap discharge) ± 4kV (contact discharge)
Hub control Web GUI, IR, TCP/IP, RS232, App, Alexa
App control: Full control over sources, matrix hub & display functions.
Device weight Chassis: 2400g
Receiver: 187g
Package weight: 4100g
Dimensions (W/D/H) Hub 440 / 362 / 88mm (without feet)
RX 162.8 / 90 / 18mm
What's in the Box:
(x1) MHUB S (8+8x8) 100 chassis/hub, (x8) Display receivers, (x17) Infared transmitter cable (1.5m) (IR TX), (x10) Infared (20-60Khz) Receiver cable (1.5m) (IR RX), (x1) MHUB S source IR stacking cable (0.5m), (x8) Three pin pheonix connector, (x9) Chassis and display receiver mounting bracket pairs, (x1) Master remote control, (x1) In-room remote control, (x1) RS232 serial cable (1.5m), (x1) 100-240V AC 50/60Hz cable (IEC lead), (x1) User guide.
Manufactures Warranty*: 2 Years, 5 Years by Cloud Registration (Cloud Registration must be completed within 30 days of installation for the extended warranty period to be activated).
Faulty From New*:
(Within 28 Days Of Purchase)
Return to AWE for assessment.
Please complete this online Returns Form
After 28 Days Of Purchase*: Return to AWE for assessment.
Please complete this online Returns Form
*Terms & Conditions: For further information regarding AWE's returns procedures please see chapters 7 & 8 in our Terms & Conditions

Features

  • Stackable to 32 Zones (x4 MHUB S) with Source IR passback and uControl
  • Stackable to 48 Zones (x6 MHUB S) with uControl
  • Stackable (6+ MHUB S) with Control System
  • Supports formats up to 4K@60Hz (4:4:4) including HDR & Dolby Vision using TPC.
  • Selectable down-scaling on all outputs
