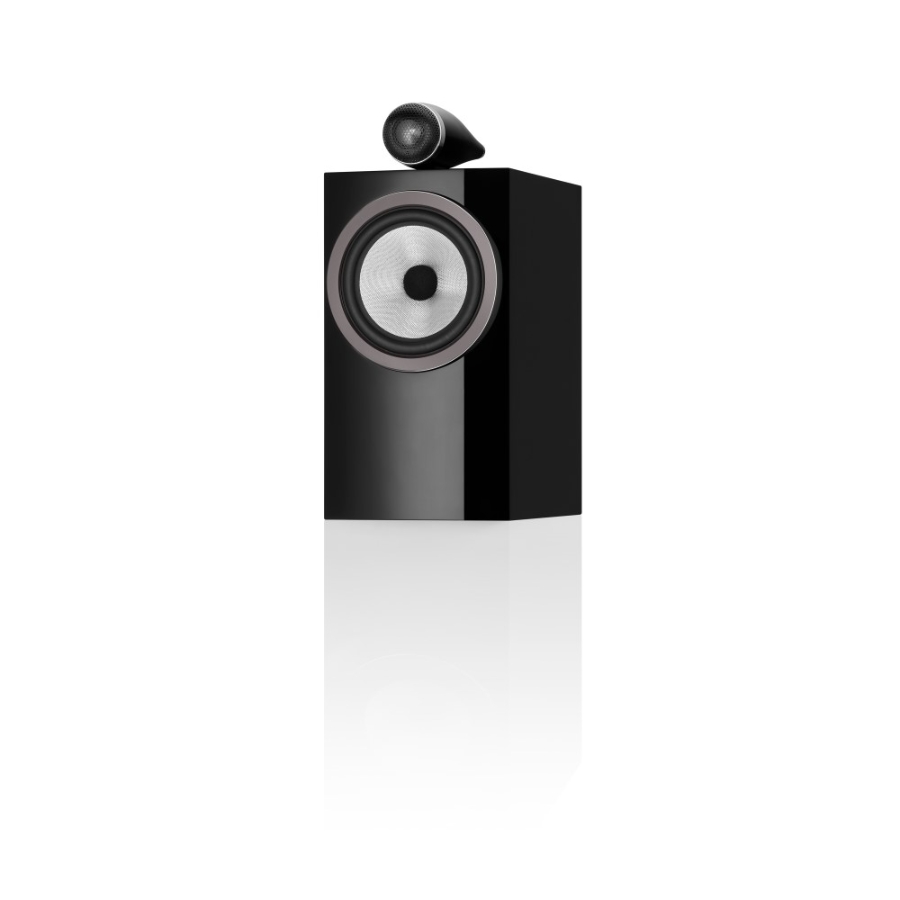

Bowers & Wilkins 705S3 2-Way Stand Mount Loudspeaker, Black Pair


(FP43087)

705 S3’s Carbon Dome tweeter is housed in a Solid Body Tweeter-on-Top enclosure evolved from the latest generation of 800 Series Diamond. That joins a new and subtly curved baffle endowed with an all-new ‘pod’ housing for its Continuum Cone bass/midrange driver.

Experience the detail
This uncompromising two-way speaker reveals subtle nuances in music others miss. Its high-performance features include a solid body Tweeter-on-Top design borrowed from the 800 Series Diamond.

A house for high frequencies
The 700 Series features the latest generation of our iconic Solid Body Tweeter-on-Top housing. Its new, more elongated form incorporates a longer tube-loading system to produce an even more free and open sound with high frequencies. The carefully decoupled housing is milled from a single solid block of aluminium to better resist resonance.

Sharper detail
Carbon Dome tweeters are purpose-built for the 700 Series. Delivering a dramatic improvement on the aluminium double dome tweeter, they raise the breakup threshold to 47kHz, for pinpoint imaging accuracy and detail.

Truly amazing sound
Thanks to its composite construction, the Continuum™ cone avoids the abrupt transitions in behaviour that can impair the performance of a conventional drive unit. The result is a more open, neutral performance that delivers voices and instruments with precision and transparency.

Description: 2-way vented-box system
Technical features: Decoupled Carbon Dome tweeter
Solid Body Tweeter-on-Top
Continuum™ cone bass / midrange
Flowport™
Drive units: 1x ø25mm (1in) Decoupled Carbon Dome high-frequency
1x ø165mm (6.5in) Continuum cone bass / midrange
Frequency range: 45Hz to 33kHz
Frequency response:
(+/-3dB from reference axis)
50Hz - 28kHz
Sensitivity:
(on axis at 2.83Vrms at 1m)
88dB
Harmonic distortion: 2nd and 3rd harmonics (90dB, 1m on axis)
<1% 100Hz - 22kHz
<0.5% 150Hz - 20kHz
Nominal impedance: 8Ω (minimum 3.7Ω)
Recommended amplifier power: 30W - 120W into 8Ω on unclipped programme
Max. recommended cable impedance: 0.1Ω
Dimension - height: 345mm (13.6in) cabinet only
413mm (16.3in) including tweeter
Dimension - width: 192mm (7.6in) cabinet only
Dimension - depth: 297mm (11.7in) cabinet only
337mm (13.3in) including grille and terminals
Net weight: 9.6kg (21.1lbs)
Finish: Gloss Black
Grille: Black
Manufacturer's Warranty*: 5 years
Faulty From New*: (Within 14 Days Of Purchase): Return to AWE for assessment.
Please complete this online Returns Form
After 14 Days Of Purchase*:
(Within The Manufacturer's Warranty):
Return to AWE for assessment.
Please complete this online Form
Post-Warranty Service and Repair: Please contact an authorised service centre: Sontec or Sound System Technology
*Terms & Conditions: For further information regarding AWE's returns procedures, please see chapters 7 & 8 in our Terms & Conditions

Features

  • Decoupled Carbon Dome tweeter
  • Solid Body Tweeter-on-Top
  • Continuum™ cone bass / midrange
  • Flowport™
